According to the lastest industrial rules <<Technical specification for washing and disinfection of hospital medical fabrics>> WS/T508-2016
Sorting and Partition Processing :
1) Bed textile fabric , working uniforms , and surgical clothes (cotton) are processed with different sorting and loading systems that Tunnel Washing Machine or Sanitary Barrier Washing Machine
2) Babies' garments , toddlers' garments , obstetrics's textile Fabric and other sporadic textile fabric need to be processed with a unique isolation hygenic Laundry Washer Extractor
3) The textile farbic of the infectious disease partition , and also the cloths that are mopping the floor or cleaning the dirty furniture , need an independent closed area to be processed by the isolation hygenic washing machine
4) Meanwhile clean laundry room also do relative isolation and classification
Model | BW20 | BW30 | BW50 | BW100 |
Maximum Capacity kg | 20 | 30 | 50 | 100 |
Inner Drum D×L mm | Φ730×490 | Φ900× 500 | φ970×720 | Φ 1200×890 |
Motor Power kw | 2.2 | 4 | 5.5 | 11 |
Washing Speed rpm | 35 | 35 | 35 | 32 |
Rotation rpm | 70 | 70 | 70 | 65 |
Extracting Rotation rpm | 440 | 400 | 370 | 350 |
Fast Speed Rotation rpm | 920 | 800 | 750 | 750 |
Steam Inlet mm | DN20 | DN20 | DN20 | DN25 |
Water Inlet mm | DN40 | DN40 | DN40 | DN50 |
Drain mm | Φ89 | Φ89 | Φ89 | Φ 140 |
Water Pressure Mpa | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
Steam Pressure Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Air compressor Mpa | 0.4-0.5 | 0.4-0.56 | 0.4-0.5 | 0.4-0.5 |
Water Consumption kg | 300 | 450 | 700 | 1650 |
Steam Consumption kg | 15 | 25 | 45 | 50 |
Electricity Heating Power Kw | 18 | 24 | 36 | 48 |
Overall Dimension (Front Back) mm | 1250 (1300) | 1400 (1450) | 1500 (1550) | 1720 (1770) |
Overall Dimension (Left Right) mm | 1360 (1440) | 1370 (1450) | 1640 (1720) | 1810 (1890) |
Overall Dimension (Height) mm | 1690 (1840) | 1800 (1950) | 1880 (2030) | 2150 (2300) |
Weight kg | 800 | 1140 | 2000 | 3000 |
Power Supply V/Pn/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |

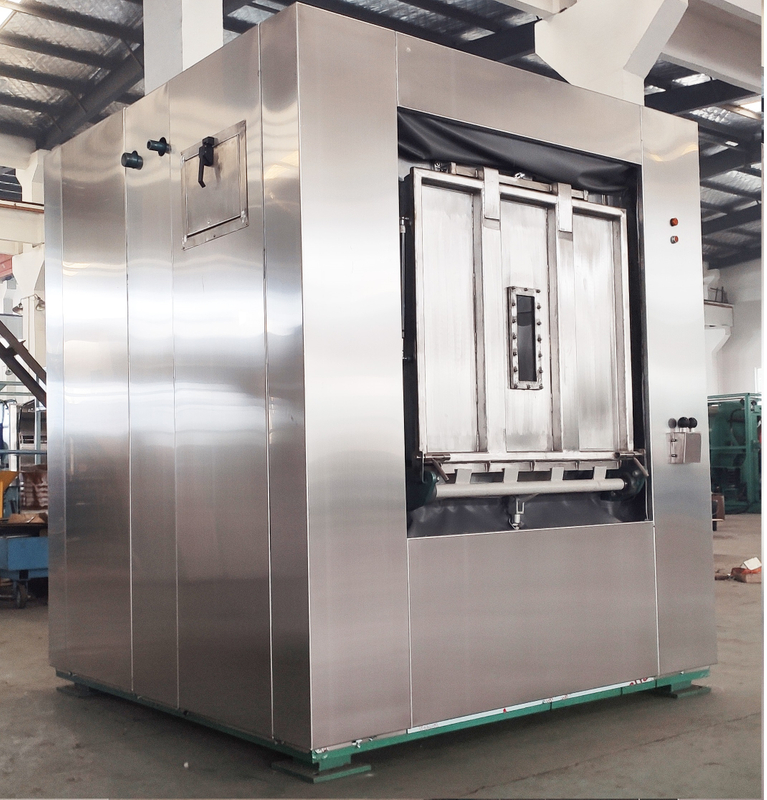

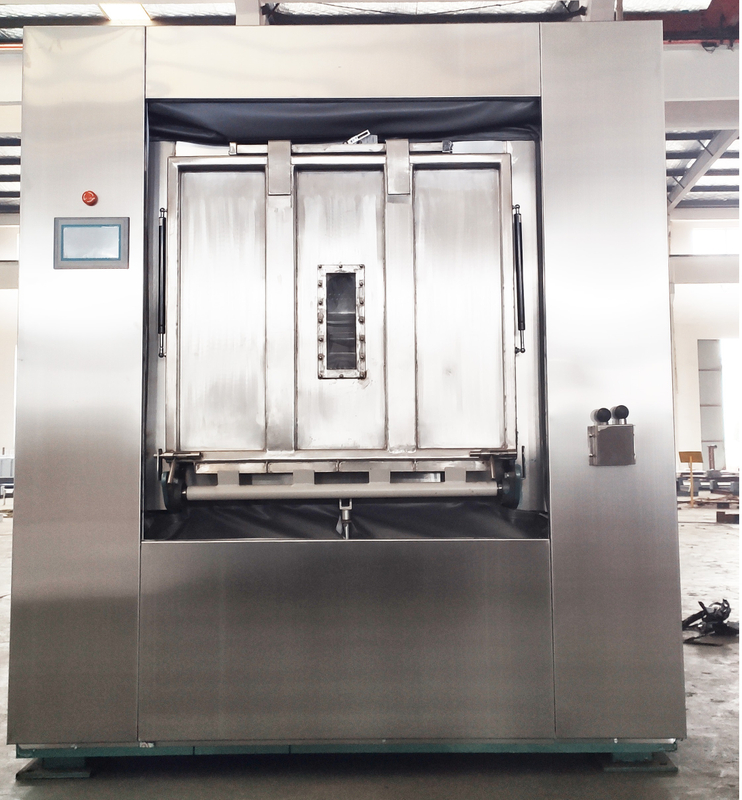

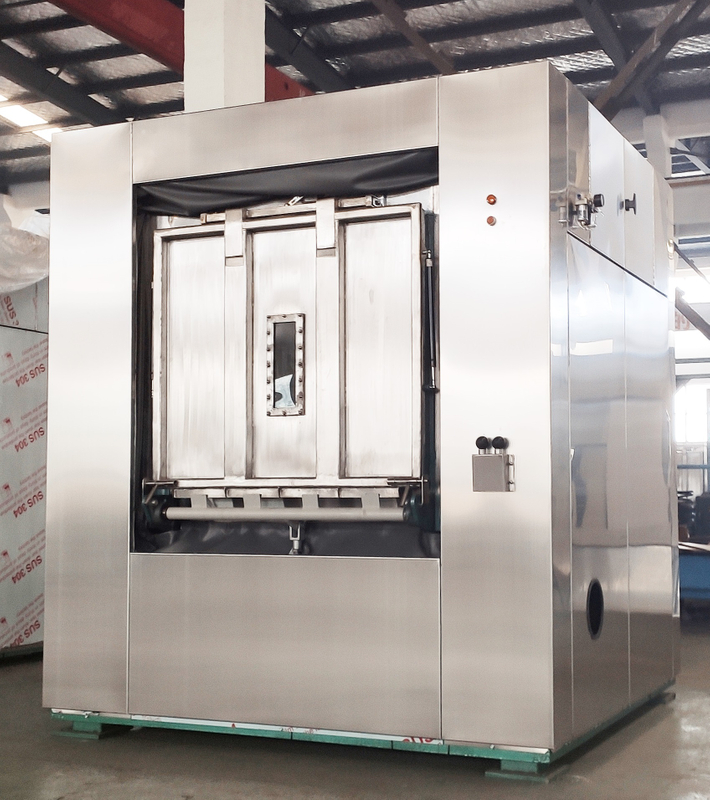

This is the best Sanitary Barrier washing machine for Hygienic hospital laundry system
Character of this Barrier Washer Extractor Mahcinne is as follows
A Barrier wal two doors design seperate soiled and clean side for anti-contamintion Enviroment (Perfect for cleanroom and healthcare laundry
B Parts in contact with water made of ss304 stainless steel
C Automatic inner Drum Positioning stops the drum at ergonomic loading and unloading position
D Electro-polished drum gives maximum protection to wash items
E Frequency inverter drive allows variable speed setting
F Spring and Shock absorber suspension system ensure quiet and smooth extraction
G User freindly touch screen computer in English
H Patented security key design insure inner door of drum is always locked before machine operation
I Standard cold and hot water inlet valves and on drain valve
J Direct steam injection heating system and electricity heated system is avirable
K Automatic soapbox Compartments is able to be connected to liquid chemical pump system
L Sight glass to vier the inner drum
M Saftey door interlock system
N Out of balance switch form machine protection
Pre-Sale Service
Before the order is confirmed, we will provide free laundry layout and all the consultation about the product.
Sale Service
1). In-depth Design
When the order is confirmed, we will communicate with the professional staff from the buyer's part and discuss the in-depth drawing design. Besides, we will provide the whole laundry factory layout design for free. The design scheme will be including equipment installation drawing about foundation, water inlet, drainage, air input and output, compressed air and electricity.
2). Installation
All the machines are well tested before we delivery the machines to the operator
When the equipment arrive to the buyer, we will send our technical staffs to provide field installation guidance and any other necessary help to ensure proper and standard installation.
3). Testing
After installation, our staff will help our customer to test the machine and check all the technical index, function, specification of the machine. Also we will comprehensively eliminate all the possible human-caused damage or troubles during installation to make sure the machine will operate in its best condition.
4). Operation Training
Before the machine is put into use, we will provide operation training to ensure the operators from the buyer's part can work independently. The training includes proper operation, safe startup, smooth operation, proper washing, linen check and categorization and machine maintenance. Also we will help operators to learn the right way to save water, energy and emergent stop operation.
After-Sale Service
1)
Full set of Installation and Operation Manual will be sent together with the machines ,and we are also able to offer online instructure
Operation Video will also be sent together with the machines
2) If you need we are able to send engineer to the work site to help you to train the operator and also to instruct the installation
Jiangsu Sunflower Machinery Co.,ltd
Why choose us?
1.We are the factory of laundry equipment,we own a professional team which is skillful on laundry washing machines.
2.Our main products are Washer Extractor(15KG to 150KG),Tumble Dryer(15KG to 120KG),Ironing Machine,Folder and Drying Cleaning Machine,Ironing table which are used in industry washing shop,laundry shop for commercial,school etc.
3.All the sales are online 24 hours,because it is easy to help every customer answer the question
4.We have agent in the world,if you want to be the next one,do not hesitate and looking forward to your inquiry.
This is the best Sanitary Barrier washing machine for Hygienic hospital laundry system
