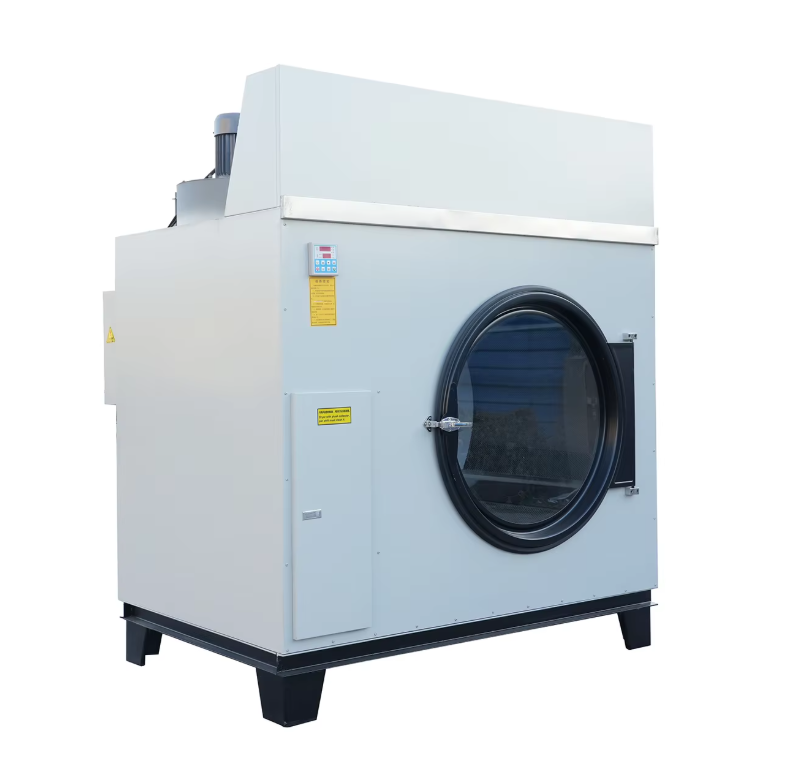

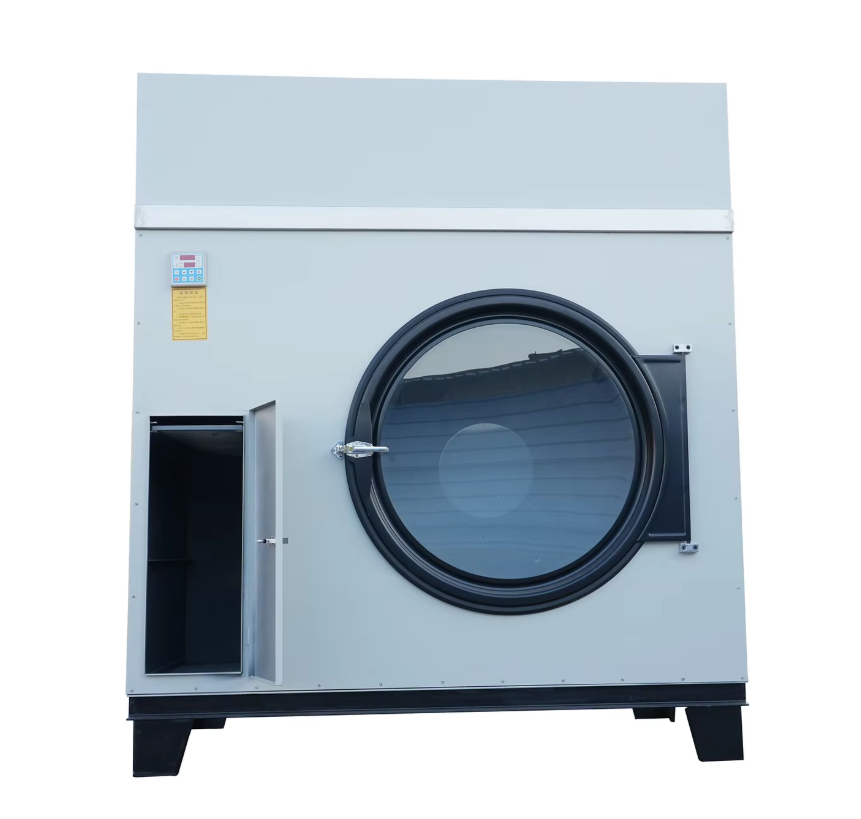

Industrial Drying Machine 120kg

Industrial drying machine is a kind of equipment that is dried by hot air, which can dry wool, cotton clothes, bed sheets and quilt covers

1. It adopts computer automatic control, and can configure different drying temperature and drying time according to drying requirements to realize automatic drying.

2 The inner drum is made of bright stainless steel with excellent heat resistance, the inner wall is smooth, and the wear of clothes is reduced

3 Equipped with a high-efficiency radiator and a reasonable air duct, so that the hot air directly contacts the clothes, which greatly improves the drying efficiency and saves energy.

4 There are various models such as external steam radiator or electric heating radiator, or natural gas radiator to choose from

Availability:
Quantity:

Advantage of this tumbler dryer HGQ120

1 with two big radiator on the top of the machine

2 because of this special struction the air flow of this machine is twice than nomal tumbler dryer

3 with special painting job that painted and heated by hot oven which will last longer time

4 with special hot air recycle system which will save energy and drying time

5 180 Centigarde door opening and with big door ,it is easier for the operator to fecth clothes

and we promise you our tumbler dryer only need 20 minutes to finish one cycle

model

HGQ15

HGQ30

HGQ50

HGQ100

HGQ100

HGQ120



HGQ150

Rated Capacity

15kg

30

50

100

100

120

150

Roller size

Φ800*560

Φ900*750

Φ1050*930

Φ1320*1055

Φ1320*1055

Φ1470*1055

Φ1600*1150

drum speed

33

33

33

33

33

33

28

Electric heating power

12

16.2

27

48kw



----

steam pressure

                                0.4 Mpa to 0.5 Mpa

Motor Power

0.75kw

1.1kw

1.5KW

2.2KW

2.2KW

3

4KW

fan power

0.37

1.1kw

1.1KW

1.1KW

1.1KW*2

1.5*2

1.5*2

Overall size

850*1000*1720



1000*1400*1800

1190 *1670*2100

1480*1840*2380

1480*1840*

2380

1660*1840*2470

1760*2000*2730

Total Weight

250kg

600

800

980

980

1100

1300


model

HGQ15

HGQ30

HGQ50

HGQ100

HGQ100

HGQ120



HGQ150

Rated Capacity

15kg

30

50

100

100

120

150

Roller size

Φ800*560

Φ900*750

Φ1050*930

Φ1320*1055

Φ1320*1055

Φ1470*1055

Φ1600*1150

drum speed

33

33

33

33

33

33

28

Electric heating power

12

16.2

27

48kw



----

steam pressure

                                0.4 Mpa to 0.5 Mpa

Motor Power

0.75kw

1.1kw

1.5KW

2.2KW

2.2KW

3

4KW

fan power

0.37

1.1kw

1.1KW

1.1KW

1.1KW*2

1.5*2

1.5*2

Overall size

850*1000*1720



1000*1400*1800

1190 *1670*2100

1480*1840*2380

1480*1840*

2380

1660*1840*2470

1760*2000*2730

Total Weight

250kg

600

800

980

980

1100

1300
