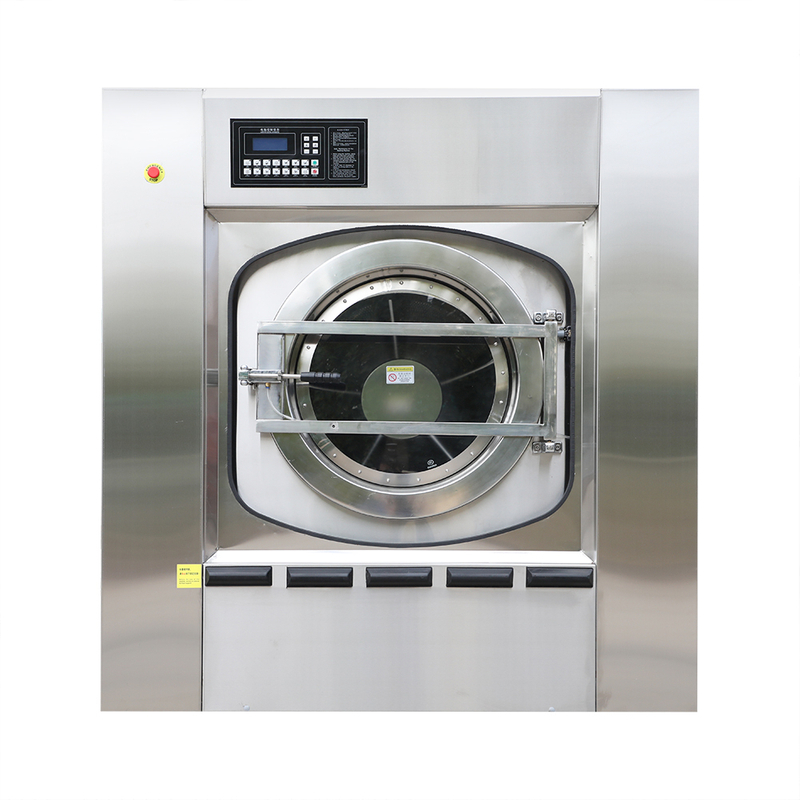

Laundry Machine 100kg-CE&ISO9001

Quantity:
  • XGQ-100F
  • ISO9001 &CE
  • 30sets/Month
  • China
  • Wooden Case
  • set
  • One Set
And the introduction of this washer extractor is as follows

Drum stainless steel
Body stainless steel
LED display, Programmable operating panel, with manual over rides
Fully automatic
Front loaded
100kg Maximum capacity
Automatic balance
Soft mounted

Customers will appreciate the large LED display that leads the user through the washing process.

The new XGQ-F series washer-extractors are available in 15kg, 20kg, 25kg, 30kg, 50kg, 70kg, 100 kg and 120kg

The specification of 100kg washer extractor is as follows

Model XGQ-100F
Rated capacity(kg): 100kg
Drum capacity(L): 1000L
Motor power(kw): 7.5KW
Inventor power: 11kw
Washing rotation (rpm): 30rpm-35rpm
Dewatering rotation (rpm): 650rpm to 750rpm
Steam pressure (Mpa): 0.4-0.5
Overall dimensions(mm): 1600*1870*2000
Weight(kg): 3200

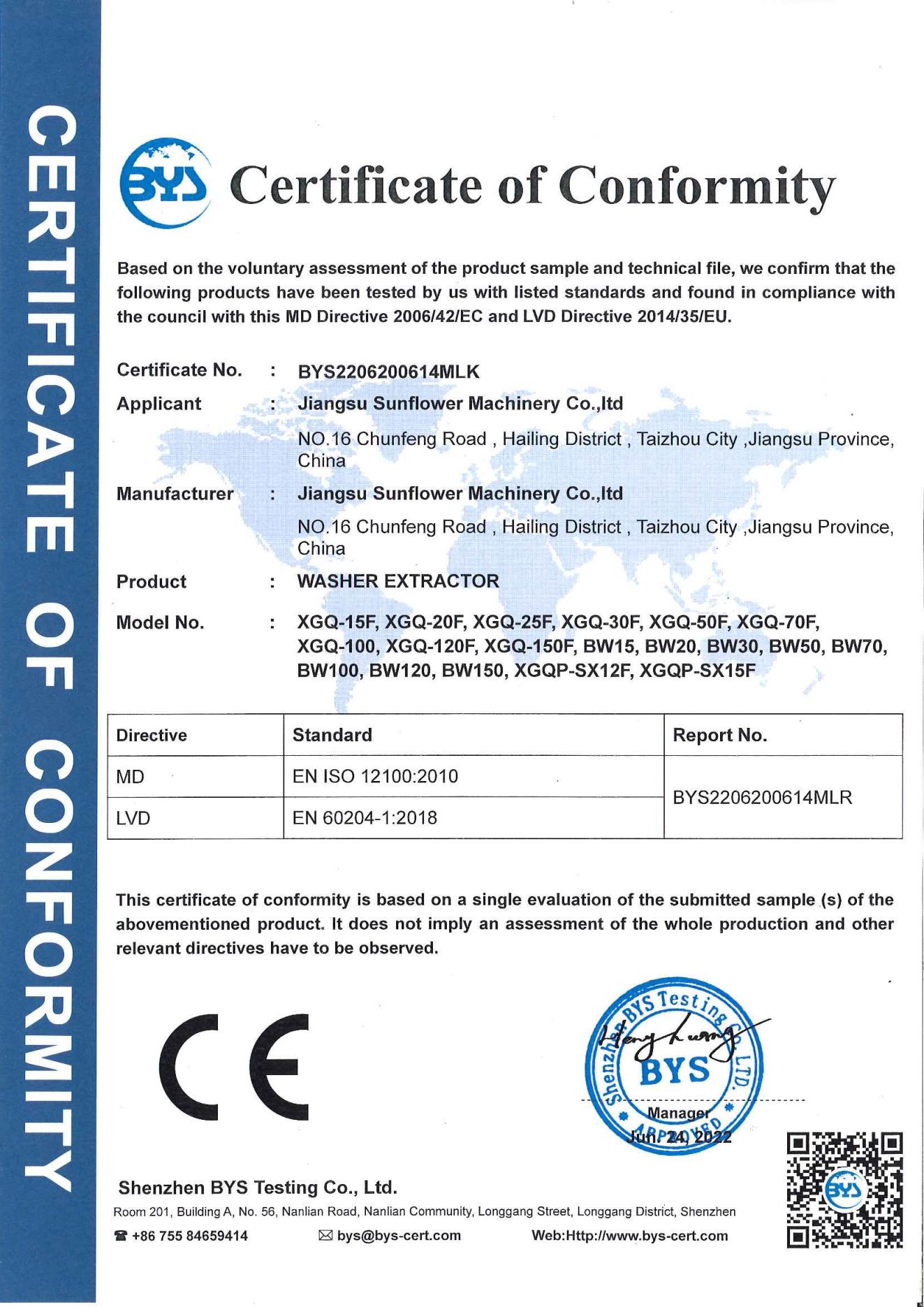

Our products are ISO9001 & CE certified.
Terms of payment: T/T/LC
Model  XGQ-15F  XGQ-20F  XGQ-25 XGQ-30F XGQ-50F XGQ-70F  XGQ-100F
Rated capacity  15KG  20KG 25 30kg  50kg  70kg  100kg
Drum dimension  380*650 700*500 800*500 90470 1080×600 1080*720mm 1200×840
Motor power  1.5kw  2.2kw 3.7kw 3kw 4kw 5.5kw 7.5kw
Rotation  40rpm-800rpm  40rpm-800rpm 40rpm-800rpm 40rpm-800rpm 38rpm-720rpm 84rpm-650rpm 33rpm-650rpm
Inventor power  1.5kw  2.2 kw 4 kw 3 kw 4kw 5.5 11 kw
Electricity heating power  6 kw  12 kw 22 kw 24 kw 36 kw ---------   -------------
Water inlet  0.6  1 11/2” 11/2” 3/2’ 3/2’’ 11/2”
Steam inlet  0.6  1/2’ 3/4” 3/4” 1” 1’ 1”
Chemicals inlet  0.6  1/2” 1/2” 1/2” 1/2”   1/2”
Overall dimension  1100*970*1420  1130*1000*1420 1230*1260*1700 1350*1340*1700 1820*1500*1600 1850*1500*1720 1600*1870*2000
Weight  450kg  500kg 890kg 890kg 1500kg 2500kg  2800kg
