100kg Pharmacy Laundry machines

100kg barrier washer extractor Machine price Pharmacy Laundry machines
Perfect Sanitary Isolating washing machine to wash working uniform , bedsheet ,operation room fabric from hospital And also to wash working uniform from Medicine factory and electronic parts factory With two operation door ,one is for loading dirty fabric and the other is for unloading the clean fabric
Availability:
Quantity:
  • BW-100F
  • HAIFENG
  • 84502012

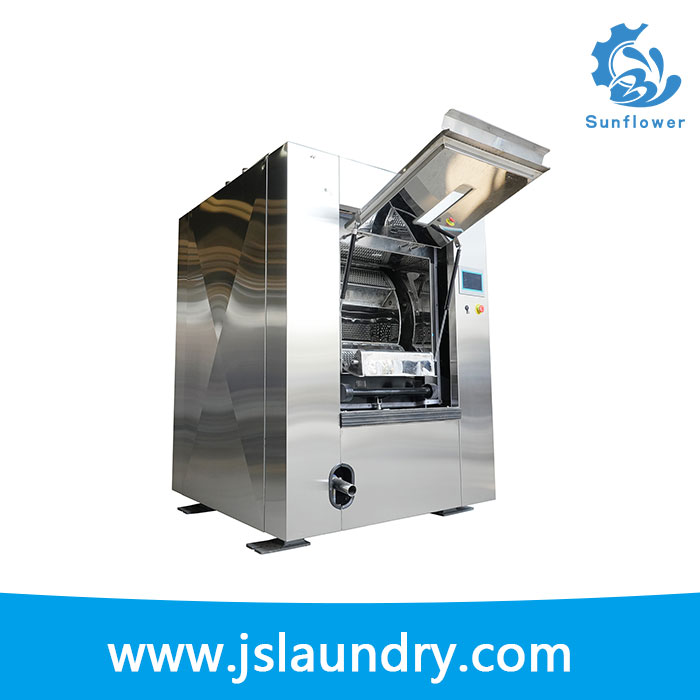

Barrier washing machine for hospital washing machine

Barrier washer separates laundry room into two isolated zones , clean zone and unclean zone. The linen to be washed is loaded into the machine from unclean zone and the washed linen is unloaded from the clean zone so as to avoid cross contamination caused by one door in-out. It is an ideal washing equipment for hospital and hygienic laundries.

Controller :

The large touch screen with Chinese (English) operation interface, which ensures the dialogue between operator and the machine more convenient and reliable.

Air bag anti-shock device (BW1000) :

Smooth running and minimum shock thanks to the heavy-duty design and air bag anti-shock device.

Auto-correction device in the door :

Auto-correction is controlled by the proximity switch so that the door can be positioned accurately at loading and unloading position.

Inner door lock :

Double-bolt locking system adopted. With self-lock and anti-lossen functions. Operation is safe and easy.

Description
BW-1000A
Inner drum ×length mm 990*1280
Outer drum ×length mm 1060*1440
Washing /balancing speed rpm 40*65
Medium extracting speed rpm 350
Motor power kW 11
Compressed air inlet diameter mm 8
Steam pressure Mpa 0.4-0.6
Water pressure Mpa 0.2-0.4
Compressed air pressure Mpa 0.5-0.6
Water consumption/ cycle kg 1900
Electric consumption/cycle kW 3.5
Steam consumption/cycle kg 85
Dimension (L/W/H) mm 2312*1480*2205
Weight kg 3480


Character :


A. This Sanitary Isolating Washer extractor  machine has two operating panel, one is at the front side, the other is at
Back side. And also two interface.
But one operating panel is programale, but the other is not programale.

We are aslo able to make two piece of hand touch operation panel at the Hospital barrier washer extractor machine according to cleints' need


B this automatic Barrier washer extractor   is made of stainless steel. The drums and  the panel where touch water will be made by ss304


C this  sanitray Isolation washer extractor machine  is with inventor control system


D 100kg washer extractor 's washing drum can be sperated in too two rooms


E Usually, hospital or electronic factory like this machine. They will built  laundry center with at least two rooms, and the machine will be put betwee  Two rooms, also the two rooms will be seperated into two space by the washer extractor


F The dirty clothes will be put into the washer extractor at the side that has programable operating
Panel, washed. And after washed, the clean clothes will be get out from the other side, which has button
Operating panel

You can add an extra wash, rinse or choose both to create a personalized wash cycle based on their individual needs.

Customers will appreciate the large LED display that leads the user through the washing process.

The specification of 50kg Hospital Barrier  washer extractor machine  is as follows
Model BM-50
Rated capacity(kg): 50kg
Drum capacity(L): 500L
Motor power(kw):5.5KW
Inventor power: 5.5 kw
Washing rotation (rpm): 30rpm-35rpm
Dewatering rotation (rpm): 650rpm to 750rpm
Steam pressure (Mpa): 0.4-0.5
Overall dimensions(mm): 1810*1950*2160
Weight(kg): 3200
Our products are ISO9001 & CE certified.
Terms of payment: T/T/LC

model

BW30

BW50

BW70

BW100

rated capcity kg

30

50

70

100

drum

diametermm

Φ800

Φ900

Φ1060

Φ1200


depth mm

600

800

800

1220


volume L

301

508

708

1000washing drum can be seperated into two parts

heated by

Electric/Steam

Electric/STEAM

Electric/steam

Steam

G-FORCE

320

320

350

380

power V/Hz

380


380v/

380v

motor kw

4

5.5

7.5

11

inventor power kw

5.5

7.5

11

15

pipe port

water

25

25

40

40


steam

25

25

25

25


water exhaust

980

980

110

110

air compress MPa





water consumption kg

1000

1200

1500

1800

electricity consumption kwh

1.5

2.1

2.8

2.8

over all dimension (l*w*h)mm

1540*1480*1650

1710*1590*1715

1750*1770*1940

1810*1950*2165

weightkg

1500

1900

2500

2900

Taizhou Haifeng Machinery Manufacturing co,.ltd_副本Laundry Machine CertificateBarrier Washer Machines (1)Barrier Washer Machines (2)Barrier Washing Machine in Medicine FactoryDrying machine washing machine

 model  BM-100  BM-50
 rated capacity  100kg  50kg
 drum dimension 1200*840  1080*600
 motor power 15 kw  5.5kw
 cleaning speed  30rpm  30rpm
 extracting speed  650rpm  750rpm
 steam presser  0.4-0.5 Mpa  0.4to 0.5Mpa
inventor power  15kw  7.5kw
electricity heating power -----  36kw
water inlet  1 1/2’’  1 1/2’
 steam inlet  1’’  1’
 chemical inlet  1/2’’  1/2’
 overall dimension  1600*1870*2000  1400*1600*1820
 weight  2800  2000
