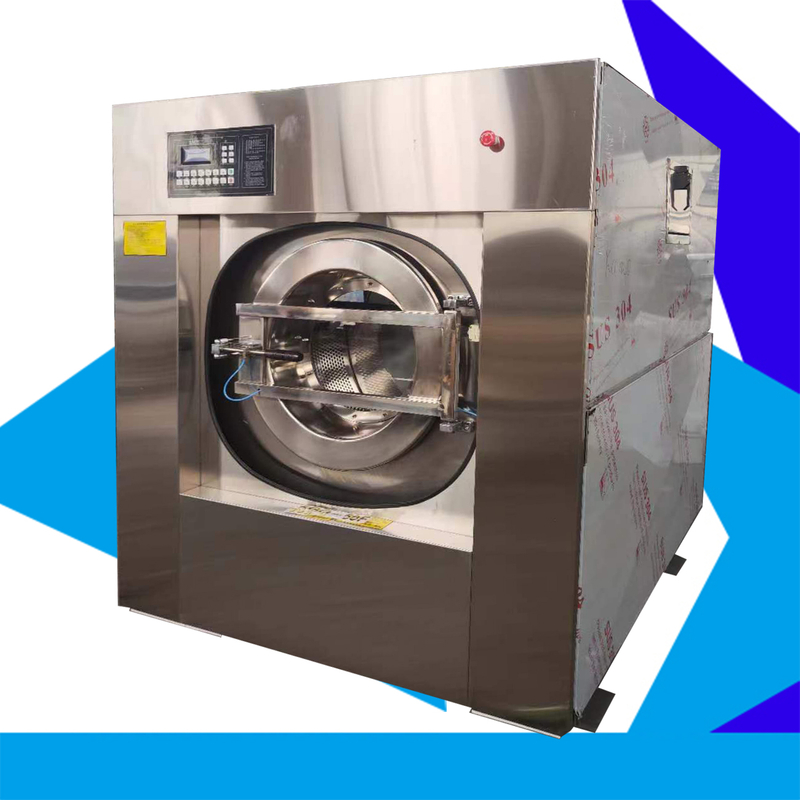

Washer Extractor 30kg

Quantity:
  • XGQ-30F
  • ISO&CE
  • 30sets/Month
  • China
  • Wooden Case
  • set
  • 1 set
LED display
Fully automatic
Front loaded
100kg Maximum capacity
Automatic balance
Programmable operating panel

You can add an extra wash, rinse or choose both to create a personalized wash cycle based on their individual needs.

Customers will appreciate the large LED display that leads the user through the washing process.

The new XGQ-F series washer-extractors are available in 12kg, 15kg, 20kg, 25kg, 30kg, 50kg, 70kg, 100 kg and 120kg

The specification of 30kg washer extractor is as follows

Model XGQ-30F
Rated capacity(kg): 30kg
Drum capacity(L): 300L
Motor power(kw): 3KW
Inventor power: 4kw
Washing rotation (rpm): 30rpm-35rpm
Dewatering rotation (rpm): 650rpm to 750rpm
Steam pressure (Mpa): 0.4-0.5
Overall dimensions(mm): 1065*960*1600
Weight(kg): 1700
Our products are ISO9001 & CE certified.
Terms of payment: T/T/LC
 model  XGQ-100F  XGQ-50F XGQ-30F  XGQ-20F XGQ-15F
 rated capacity  100kg  50kg 30kg  20kg  15kg
 drum dimension 1200*840  1080*600 820*550   700*480  600*420
 motor power  7.5kw  4kw  4kw  2.2kw  1.5kw
 cleaning speed  30rpm  30rpm  38rpm  38rpm  40rpm
 extracting speed  650rpm  750rpm  800rpm  850rpm  900rpm
 steam presser  0.4-0.5 Mpa  0.4to 0.5Mpa  0.4-0.5Mpa  0.4-0.5Mpa  0.4to0.5Mpa
inventor power  11kw  4kw  4kw  4kw  3kw
electricity heating power -----  36kw  24kw  22kw  12kw
water inlet  1 1/2’’  1 1/2’  1 1/2’ 1 1/2’  1’
 steam inlet  1’’  1’  3/4’  3/4’  3/4’
 chemical inlet  1/2’’  1/2’  1/2’  1/2’  1/2’
 overall dimension  1600*1870*2000  1400*1600*1820  1100*1300*1600  1130*1000*1420  950*1000*1470
 weight  2800  2000  890  890  500kg
