This steam heated ironer is to iron bed covers, bed sheet, table covers, towels and so on.
This ironer is rolling heated type, the length of the drum is arrange from 1.6 meters to 3.0 meters and the quantity of the roller can be 1, 2, 3, 4, even 5, the more of the ironer are, the faster of the ironer can be.
This ironer can be heated by electricity or steam.
This machine is inventor controlled and the drums are made of stainless steel.
1. High quality and efficient ironing result
The precise structure of double chests, springs and heating proof felt ensure the rollers to keep enough eleacticity and spring cushion, which creats the surface well-touched.
Unique lever balance pressure device and the cylinder pressure adjust system on both sides.
Unique whirl steam flow heating system for the connecting plate improves the ironing result.
2. Reliable and safe operating system
Anti-curliness device can prevent the fabrics curling in the chests.
With steam and compressed air control system, once the pressure is too low the system will alarm.
Many emerency stop buttom fixed on the ironer. Any buttoned pressed, the ironer will stop to run.
The atuomatic system can raise and lock up the rollers to prevent the fabrics and the proof felt damaged when the machine stops running in case of no power.

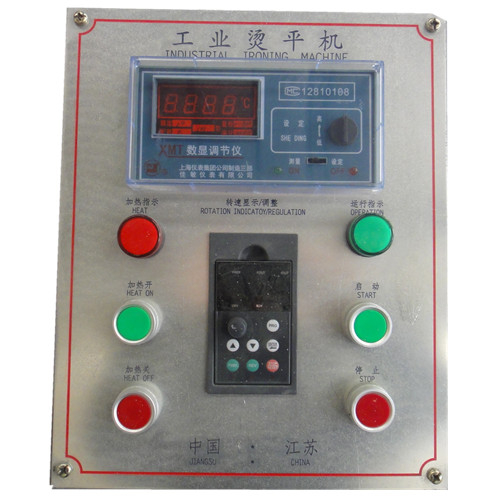

A big controller with interactive interface on the machine is easy for operator to program according to different requirements.
3. High efficiency and Low energy consumption
The chests have a large angle heating surface, which can improve the heating efficiency.

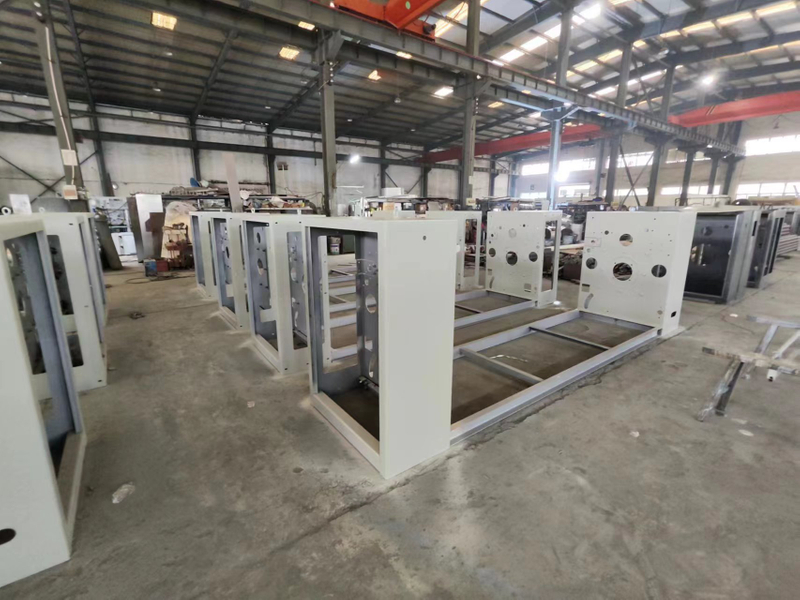

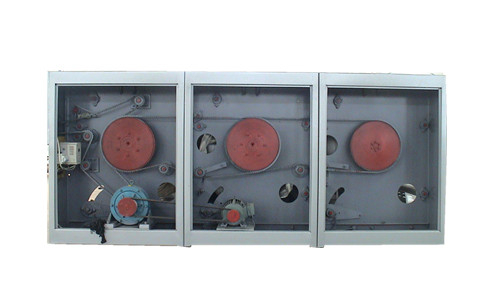

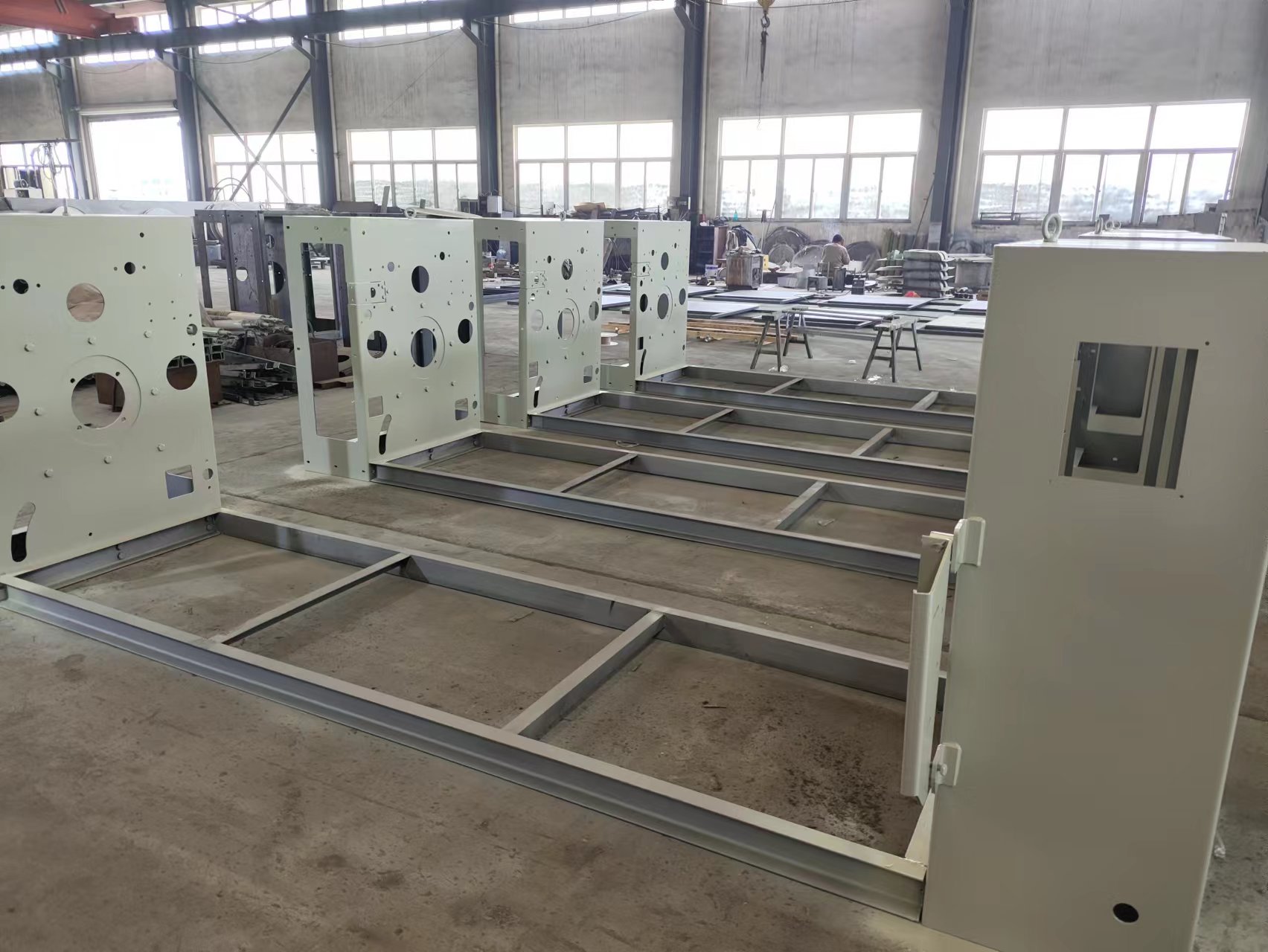

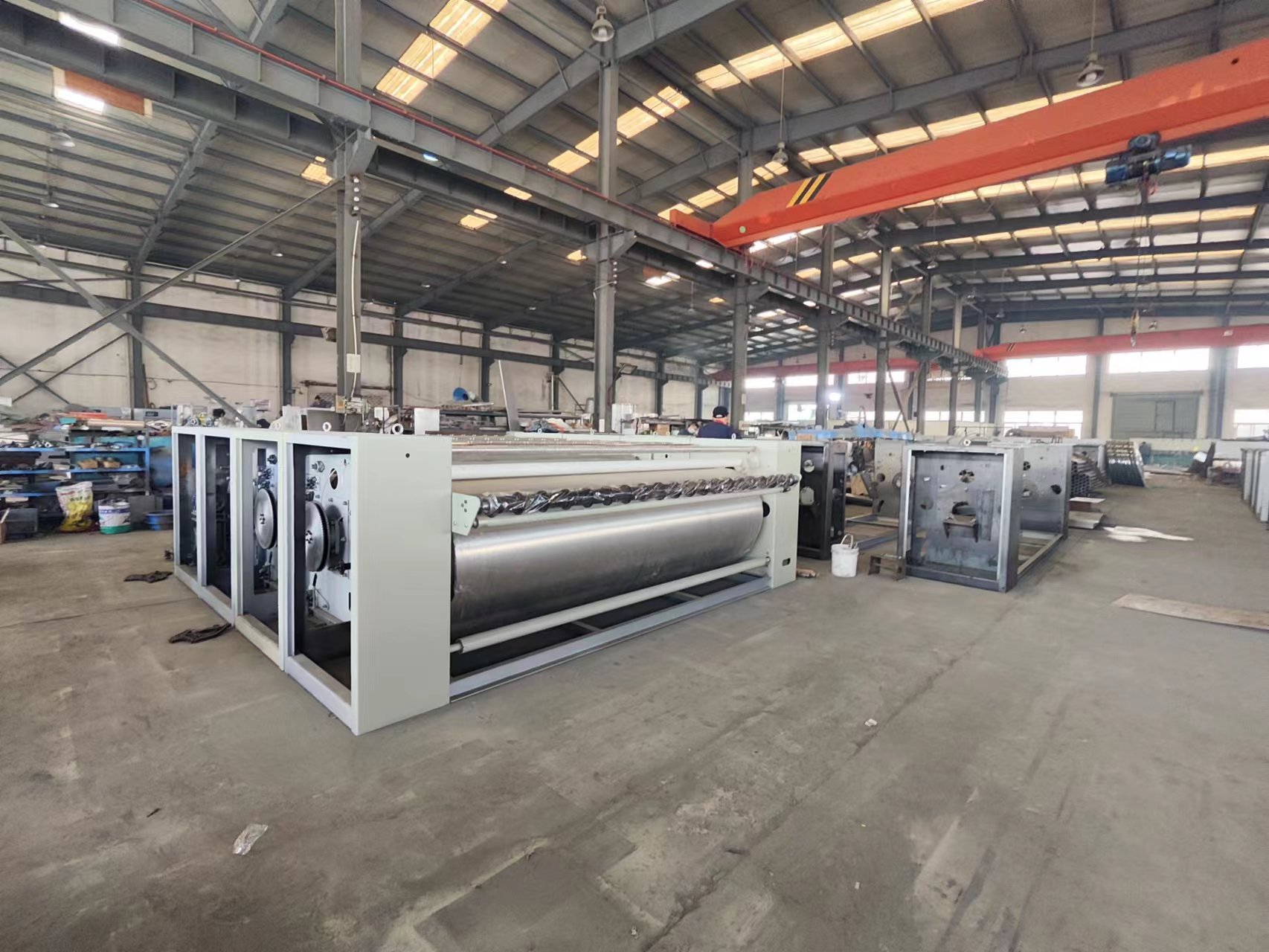

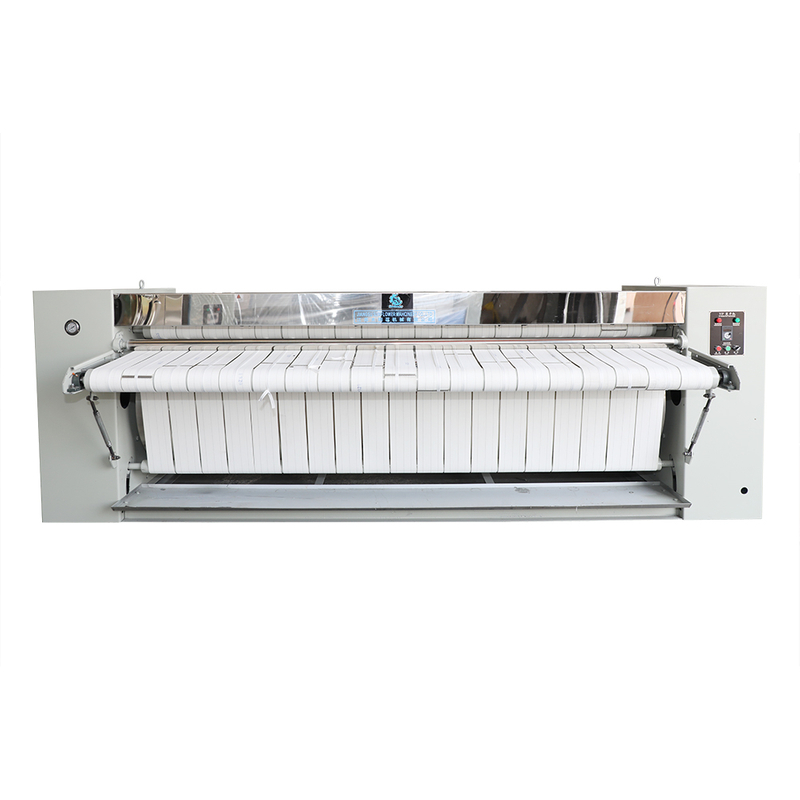

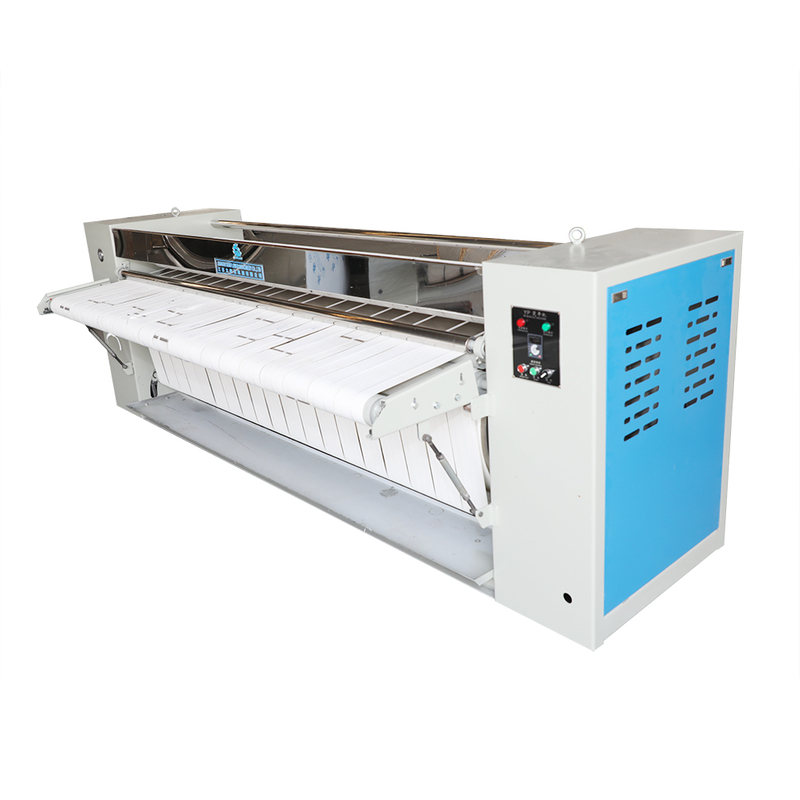

Photos of Bedcover Ironer





Client Visit Photos And Delivery Photos







This steam heated ironer is to iron bed covers, bed sheet, table covers, towels and so on.
This ironer is rolling heated type, the length of the drum is arrange from 1.6 meters to 3.0 meters and the quantity of the roller can be 1, 2, 3, 4, even 5, the more of the ironer are, the faster of the ironer can be.
This ironer can be heated by electricity or steam.
This machine is inventor controlled and the drums are made of stainless steel.
1. High quality and efficient ironing result
The precise structure of double chests, springs and heating proof felt ensure the rollers to keep enough eleacticity and spring cushion, which creats the surface well-touched.
Unique lever balance pressure device and the cylinder pressure adjust system on both sides.
Unique whirl steam flow heating system for the connecting plate improves the ironing result.
2. Reliable and safe operating system
Anti-curliness device can prevent the fabrics curling in the chests.
With steam and compressed air control system, once the pressure is too low the system will alarm.
Many emerency stop buttom fixed on the ironer. Any buttoned pressed, the ironer will stop to run.
The atuomatic system can raise and lock up the rollers to prevent the fabrics and the proof felt damaged when the machine stops running in case of no power.
A big controller with interactive interface on the machine is easy for operator to program according to different requirements.
3. High efficiency and Low energy consumption
The chests have a large angle heating surface, which can improve the heating efficiency.
Photos of Bedcover Ironer





Client Visit Photos And Delivery Photos







| Model | YPAI2500 | YPAII2500 | YPAI2800 | YPAII2800 | YPAI3000 | YPAII3000 | YPAIII3000 |
| Ironing scope | 0 meter to 2.5 meters | 0 meter to 2.5 meters | 0 meter to 2.8 meters | 0 meter to 2.8 meters | 0 meter to 3 meters | 0 meter to 3 meters | 0 meter to 3 meters |
| Dum quantity | 1 | 2 | 1 | 2 | 1 | 2 | 0.4 TO 0.6 |
| Steam pressures | 0.4 to 0.6 Mpa | 0.4 to 0.6 Mpa | 0.4 to 0.6 Mpa | 0.4 to 0.6 Mpa | 0.4 to 0.6 Mpa | 0.4 to 0.6 Mpa |
|
| Ironing speed | <=10 m/min | <=16m/min | <=10 m/min | <=16m/min | <=10 m/min | <=16m/min | <=27m/min |
| Designed temperature of surface | It is 164 centigrade when the pressure is 0.4MPA | It is 164 centigrade when the pressure is 0.4MPA | It is 164 centigrade when the pressure is 0.4MPA | It is 164 centigrade when the pressure is 0.4MPA | It is 164 centigrade when the pressure is 0.4MPA | It is 164 centigrade when the pressure is 0.4MPA | It is 164 centigrade when the pressure is 0.4MPA |
| Steam consumption | 70KG/h | 110kg/h | 80kg/h | 120kg/h | 85kg/h | 180kgh | 240kg/h |
| Motor power | 0.75kw | 1.5kw | 0.75kw | 1.5kw | 0.75kw | 1.5kw | 2.2kw |
| Over all dimension | 3540*1440*1400 | 3040*2440*14400 | 3840*1440*1400 | 3840*2440*1440 | 4040*1440*1400 | 4040*2440*1440 | 4040mm*3500mm*1400mm |
| Weight | 1200kg | 1700kg | 1400kg | 1900kg | 1500kg | 2600kg | 3000kgs |
| Model | YPAI2500 | YPAII2500 | YPAI2800 | YPAII2800 | YPAI3000 | YPAII3000 | YPAIII3000 |
| Ironing scope | 0 meter to 2.5 meters | 0 meter to 2.5 meters | 0 meter to 2.8 meters | 0 meter to 2.8 meters | 0 meter to 3 meters | 0 meter to 3 meters | 0 meter to 3 meters |
| Dum quantity | 1 | 2 | 1 | 2 | 1 | 2 | 0.4 TO 0.6 |
| Steam pressures | 0.4 to 0.6 Mpa | 0.4 to 0.6 Mpa | 0.4 to 0.6 Mpa | 0.4 to 0.6 Mpa | 0.4 to 0.6 Mpa | 0.4 to 0.6 Mpa |
|
| Ironing speed | <=10 m/min | <=16m/min | <=10 m/min | <=16m/min | <=10 m/min | <=16m/min | <=27m/min |
| Designed temperature of surface | It is 164 centigrade when the pressure is 0.4MPA | It is 164 centigrade when the pressure is 0.4MPA | It is 164 centigrade when the pressure is 0.4MPA | It is 164 centigrade when the pressure is 0.4MPA | It is 164 centigrade when the pressure is 0.4MPA | It is 164 centigrade when the pressure is 0.4MPA | It is 164 centigrade when the pressure is 0.4MPA |
| Steam consumption | 70KG/h | 110kg/h | 80kg/h | 120kg/h | 85kg/h | 180kgh | 240kg/h |
| Motor power | 0.75kw | 1.5kw | 0.75kw | 1.5kw | 0.75kw | 1.5kw | 2.2kw |
| Over all dimension | 3540*1440*1400 | 3040*2440*14400 | 3840*1440*1400 | 3840*2440*1440 | 4040*1440*1400 | 4040*2440*1440 | 4040mm*3500mm*1400mm |
| Weight | 1200kg | 1700kg | 1400kg | 1900kg | 1500kg | 2600kg | 3000kgs |
Industrial drying machine is a kind of equipment that is dried by hot air, which can dry wool, cotton clothes, bed sheets and quilt covers
1. It adopts computer automatic control, and can configure different drying temperature and drying time according to drying requirements to realize automatic drying.
2 The inner drum is made of bright stainless steel with excellent heat resistance, the inner wall is smooth, and the wear of clothes is reduced
3 Equipped with a high-efficiency radiator and a reasonable air duct, so that the hot air directly contacts the clothes, which greatly improves the drying efficiency and saves energy.
4 There are various models such as external steam radiator or electric heating radiator, or natural gas radiator to choose from
