When the owner plan to set up laundry factory, all of them will consider to take advantage of all the resources . The best character of this plan is to help all the owner to take advantage of all the sources and all the possible factor to set up the factory, in order to get most benefit. This type of laundry factory is set up in the basement and it has naturally washing process by the square pattern with Flatwork Ironer in the center and washing machine, drying machine, dry cleaning machine and ironing finishing machine being put against the walls

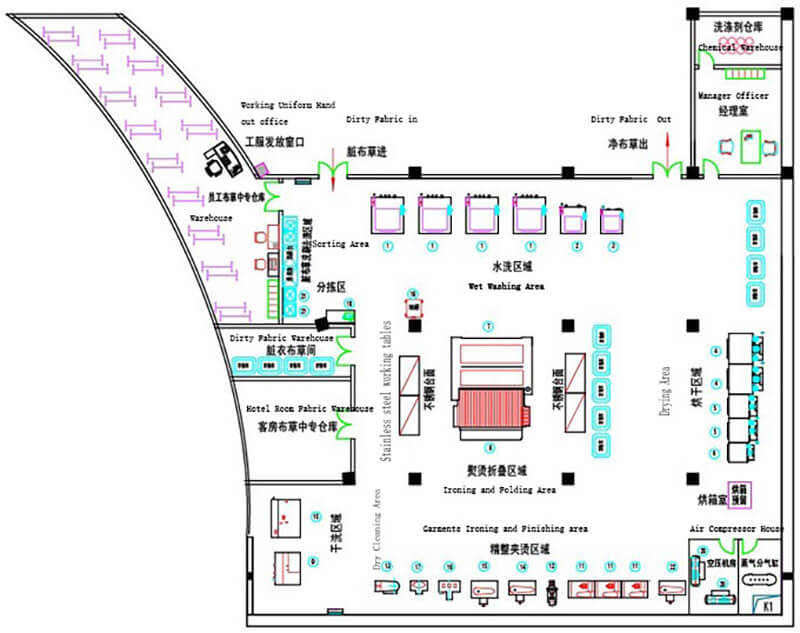

From the below drawing, you can see that the dirty fabric will enter the laundry factory by the left door ,after that they will be sorted into two parts
Wet Washing Area: Water washing process, Drying Process, Ironing Process, Folding Process and Packing Process till the washed fabric will be sent out by the right door
Dry Cleaning Area: Dry Cleaning Process, Classic Ironing and pressing Process, Packing Process till the cleaned garments being sent out through the right door
All the two Process will be processed in order and entire laundry Factory is tidy and clean and the workers is able to work half but with double results
And we suggest the following machines according to the hotel’s beds quantity.
Four sets of programmable washer extractor 100kgs with haifeng brand
One set of Programmable washer extractor 50kgs with haifeng brand
One set of Programmable washer extractor 30kgs With haifeng barnd

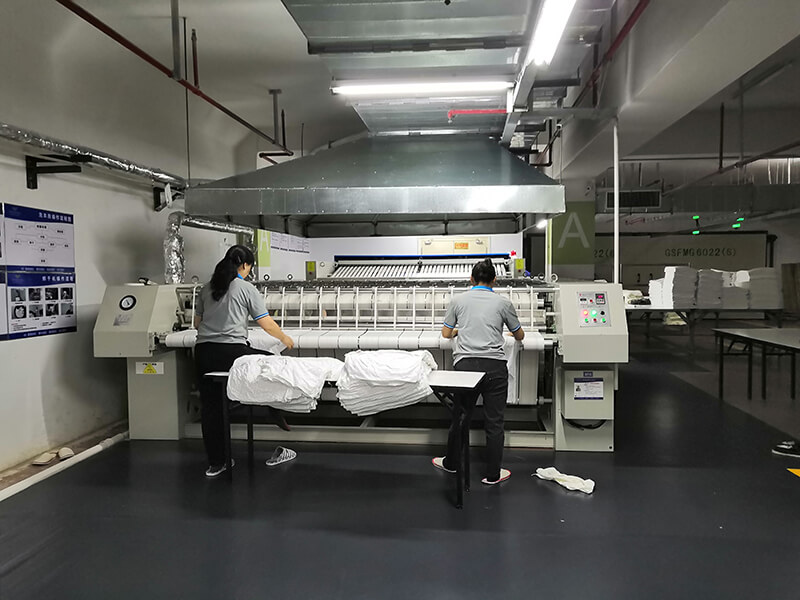

One set of Automatic Roller Calender Ironing machine

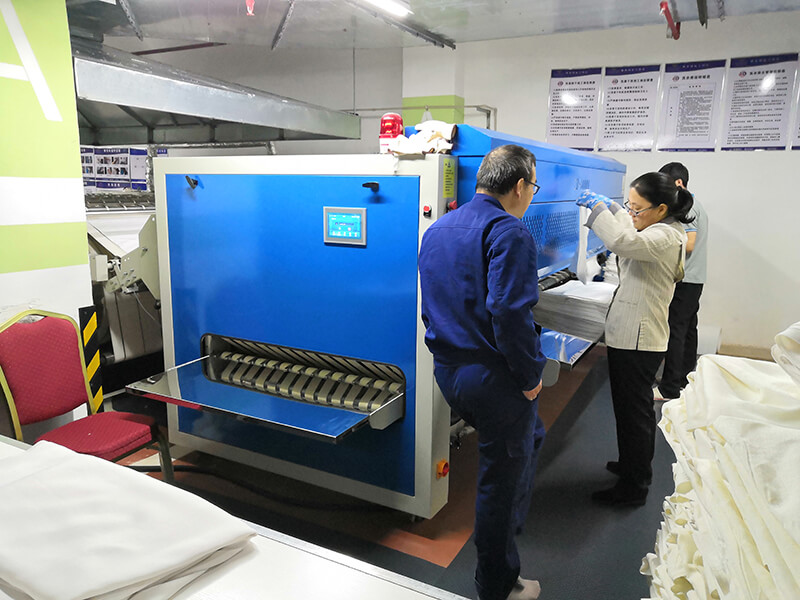

One set of automatic folding machine for bedsheet ,quit cover
One set of dry cleaning machine
Steam Pressing machine
Ironing table
Body Blown machine
Packing Machines
Meanwhile, we design the worker’s uniform exchange area, storage warehouse, chemical warehouse, offices besides the laundry factory to take
advantage of all the space
And the equipment list for your choice is as follows
Item
Name
Model
Quantity （set）
1
Washer Extractor
XGQ-100F
4
2
Washer Extractor
XGQ-50F
1
3
Washer Extractor
XGQ-30F
1
4
Tumbler Dryer （steam ）
HGQ-100
2
5
Tumbler Dryer （steam ）
HGQ-50
2
6
Tumbler Dryer （steam ）
HGQ-30
1
7
Flatwork Ironer （Steam Ironing Machine with two rollers）
A Stainless steel ss304 drying drum B Stainless steel ss304 heat radiator C With big door to do loading and unloading D With Durable structure E With fast drying speed that 30 minutes for towel and 20 minutes for towels
Pass Through Washing (with inbuilt High Speed Extraction) of all types of Hospital Linen with a partition between contaminated linen area and clean linen area
Barrier Washer Barrier washer separates laundry room into two isolated zones , clean zone and unclean zone. The linen to be washed is loaded into the machine from unclean zone and the washed linen is unloaded from the clean zone so as to avoid cross contamination caused by one door in-out. It is an ideal washing equipment for hospital and hygienic laundries.
Industrial drying machine is a kind of equipment that is dried by hot air, which can dry wool, cotton clothes, bed sheets and quilt covers
1. It adopts computer automatic control, and can configure different drying temperature and drying time according to drying requirements to realize automatic drying.
2 The inner drum is made of bright stainless steel with excellent heat resistance, the inner wall is smooth, and the wear of clothes is reduced
3 Equipped with a high-efficiency radiator and a reasonable air duct, so that the hot air directly contacts the clothes, which greatly improves the drying efficiency and saves energy.
4 There are various models such as external steam radiator or electric heating radiator, or natural gas radiator to choose from
