BW-20F
SUNFLOWER
84502012

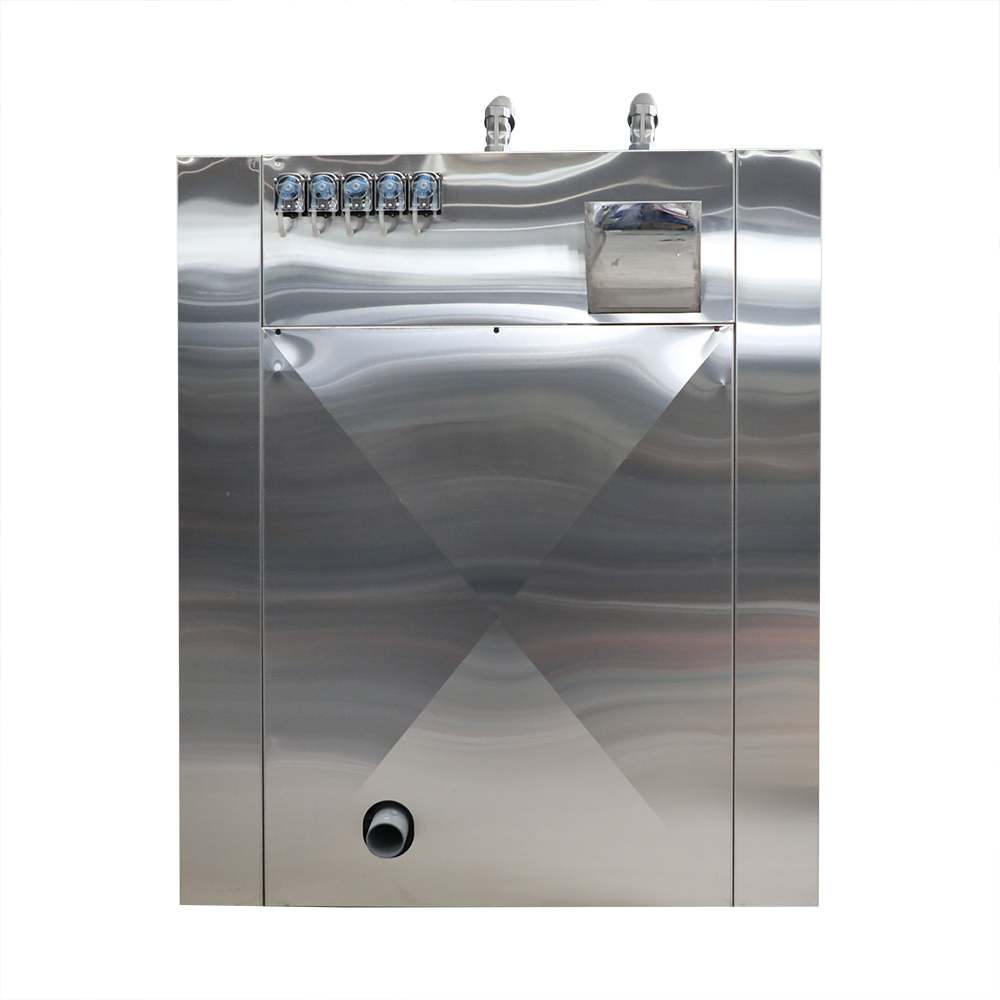

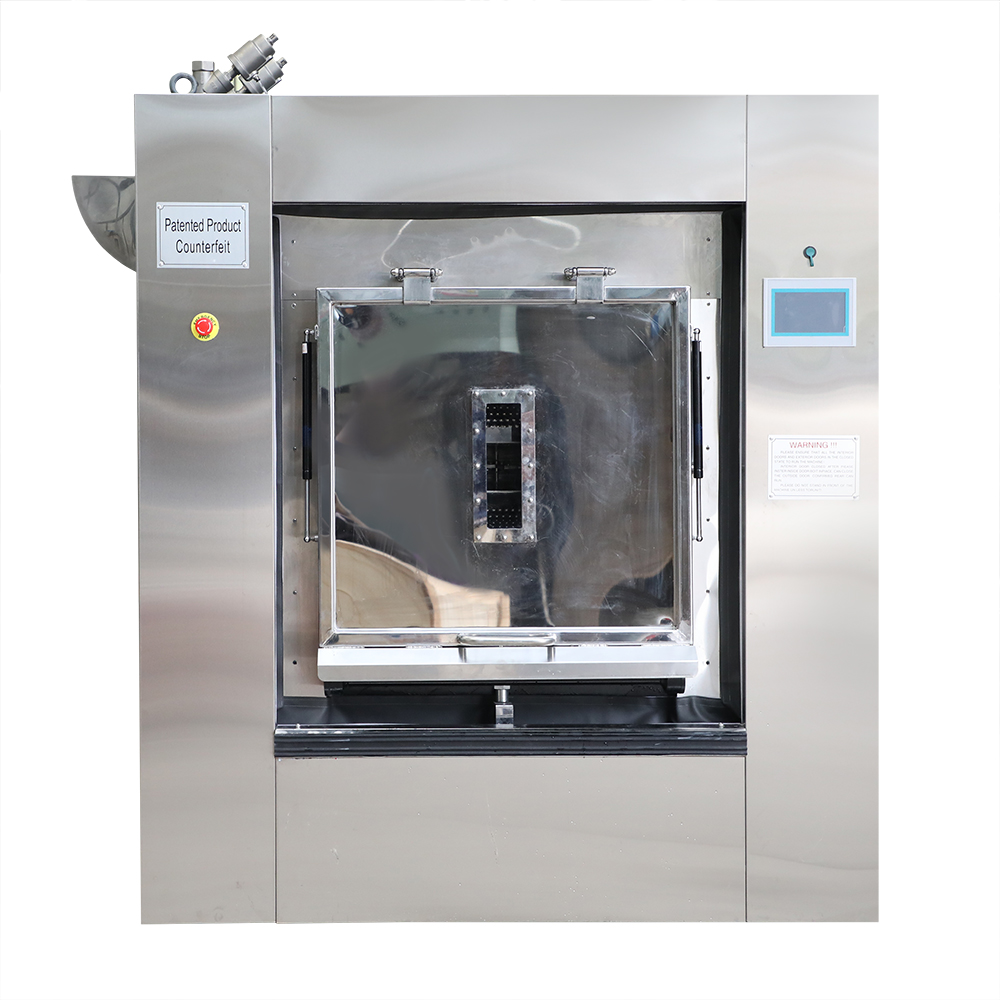

Two door barrier washer 20kgs
Model | BW20 | BW30 | BW50 | BW100 |
Maximum Capacity kg | 20 | 30 | 50 | 100 |
Inner Drum D×L mm | Φ730×490 | Φ900× 500 | φ970×720 | Φ 1200×890 |
Motor Power kw | 2.2 | 4 | 5.5 | 11 |
Washing Speed rpm | 35 | 35 | 35 | 32 |
Rotation rpm | 70 | 70 | 70 | 65 |
Extracting Rotation rpm | 440 | 400 | 370 | 350 |
Fast Speed Rotation rpm | 920 | 800 | 750 | 750 |
Steam Inlet mm | DN20 | DN20 | DN20 | DN25 |
Water Inlet mm | DN40 | DN40 | DN40 | DN50 |
Drain mm | Φ89 | Φ89 | Φ89 | Φ 140 |
Water Pressure Mpa | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
Steam Pressure Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Air compressor Mpa | 0.4-0.5 | 0.4-0.56 | 0.4-0.5 | 0.4-0.5 |
Water Consumption kg | 300 | 450 | 700 | 1650 |
Steam Consumption kg | 15 | 25 | 45 | 50 |
Electricity Heating Power Kw | 18 | 24 | 36 | 48 |
Overall Dimension (Front Back) mm | 1250 (1300) | 1400 (1450) | 1500 (1550) | 1720 (1770) |
Overall Dimension (Left Right) mm | 1360 (1440) | 1370 (1450) | 1640 (1720) | 1810 (1890) |
Overall Dimension (Height) mm | 1690 (1840) | 1800 (1950) | 1880 (2030) | 2150 (2300) |
Weight kg | 800 | 1140 | 2000 | 3000 |
Power Supply V/Pn/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
Characters:

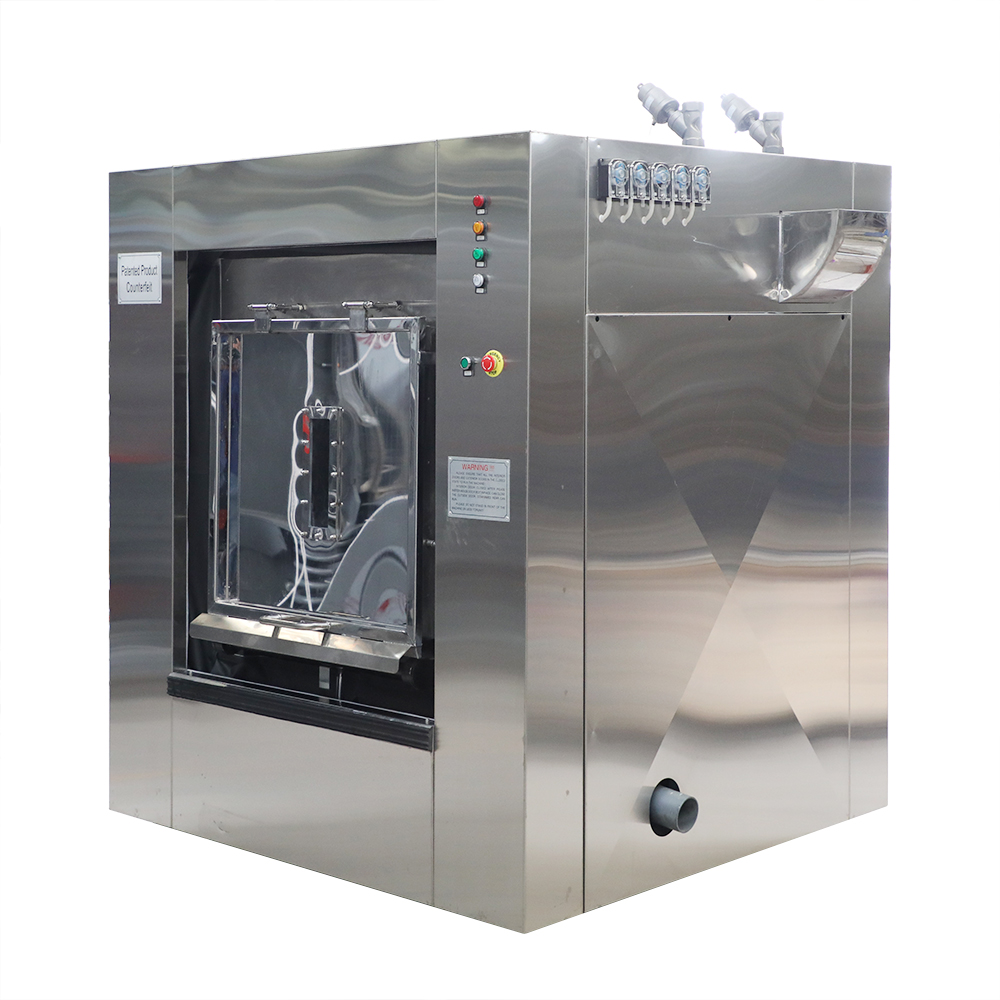

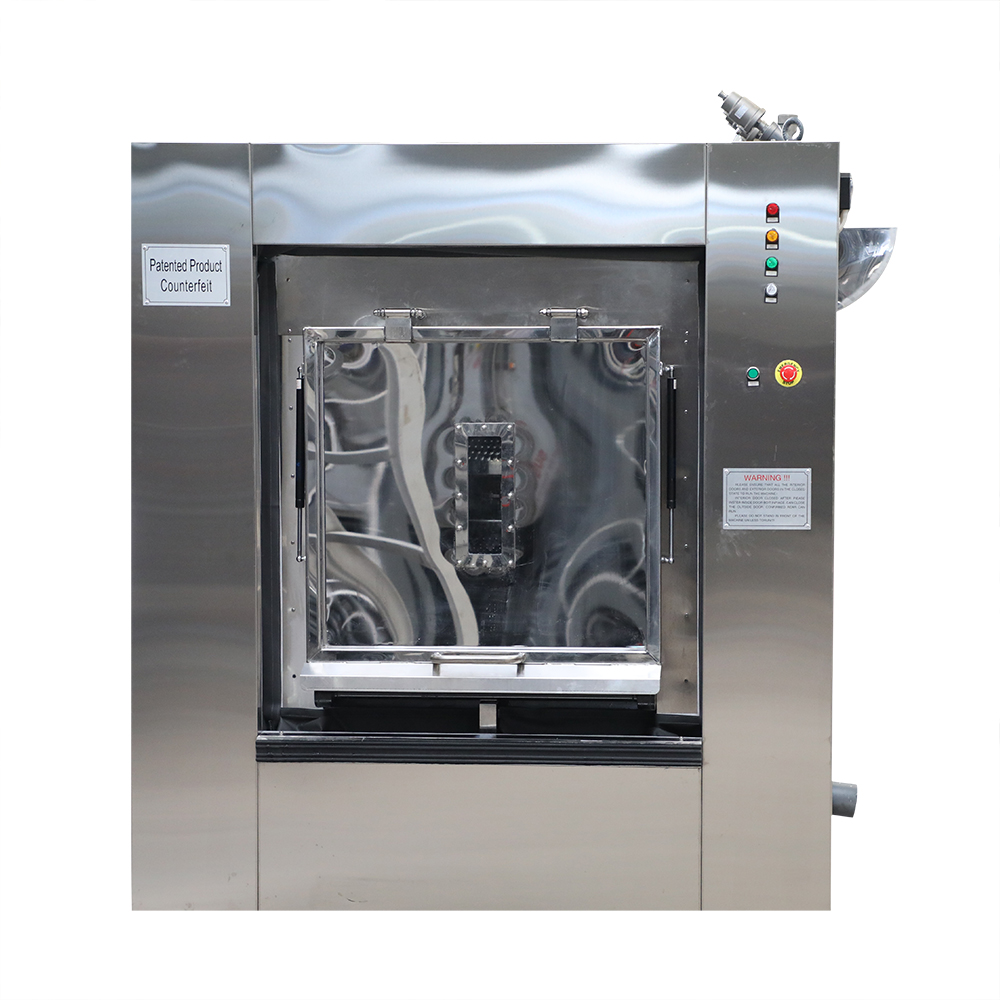

1.Double opposite doors for loading and unloading laundry.
2.Dirty clothes can be loaded on one side of the machine and unloaded, sanitized on the opposite side, once the washing cycle is complete
3.Doors can be interlocked to allow the loading on one side and unloading on other side
Have End of cycle alarm to save valuable process time

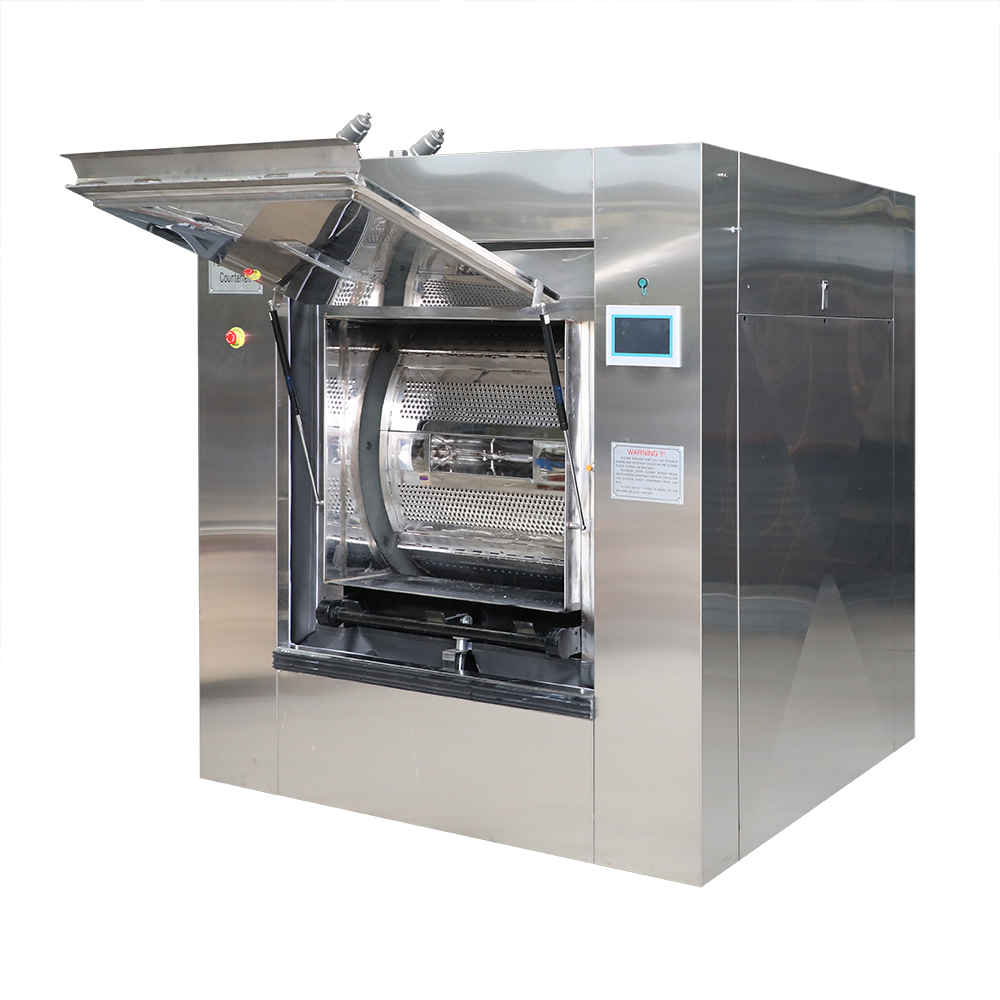

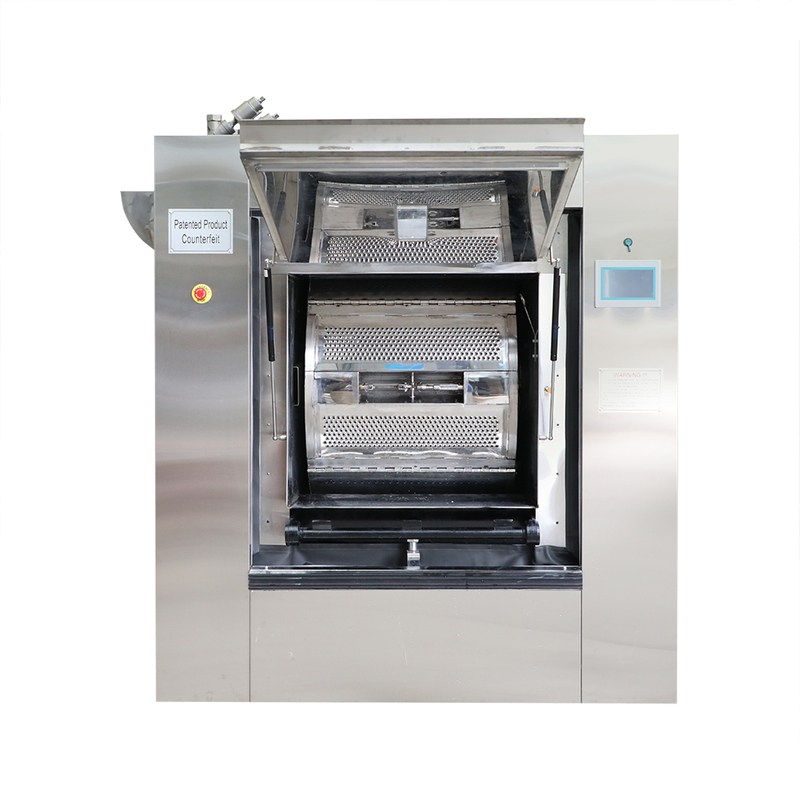

4.Automatic inner drum door opening (AIDO) at the end of the cycle for effortless and fast unloading operations
5.With microprocessor controlled with display not less than 5 inches
6.with full touchscreen or soft button controlled
7.With Double display to better manage the process on the clean side of the laundry
8.With Automatic positioning of drum with motor brake and UPS system for safety in case of power failure
9.With equipped with emergency stop button for both sides
10.Drum, vat and top panel shall be made in AISI 304 stainless steel
11.With Integrated the linen weighing system and adjusts the water level to the amount of linen, saving water, soap and energy at less than full load.
Safety Features
The machine should be designed keeping in a view the safety of the operator and machine:
(a) Outside basket doors should be interlocked electrically to ensure that the electrical drive system do not function until all the doors are firmly closed. The machine will not start if any of the doors is left open.
(b) The inside basket doors should be designed to ensure that unless these are locked in position with provided spring locks, the outside basket doors cannot be closed.
(c) An overflow arrangement prevents the machine from flooding with water.
(d) Thermal overload relay cuts off supply to the motor during the overloading
Pre-installation works shall be in contractor responsibilities and shall include the isolation of clean and dirty zones, the machine shall be chock protected against wall hitting during vibration, appropriate and durable dampers shall be used.

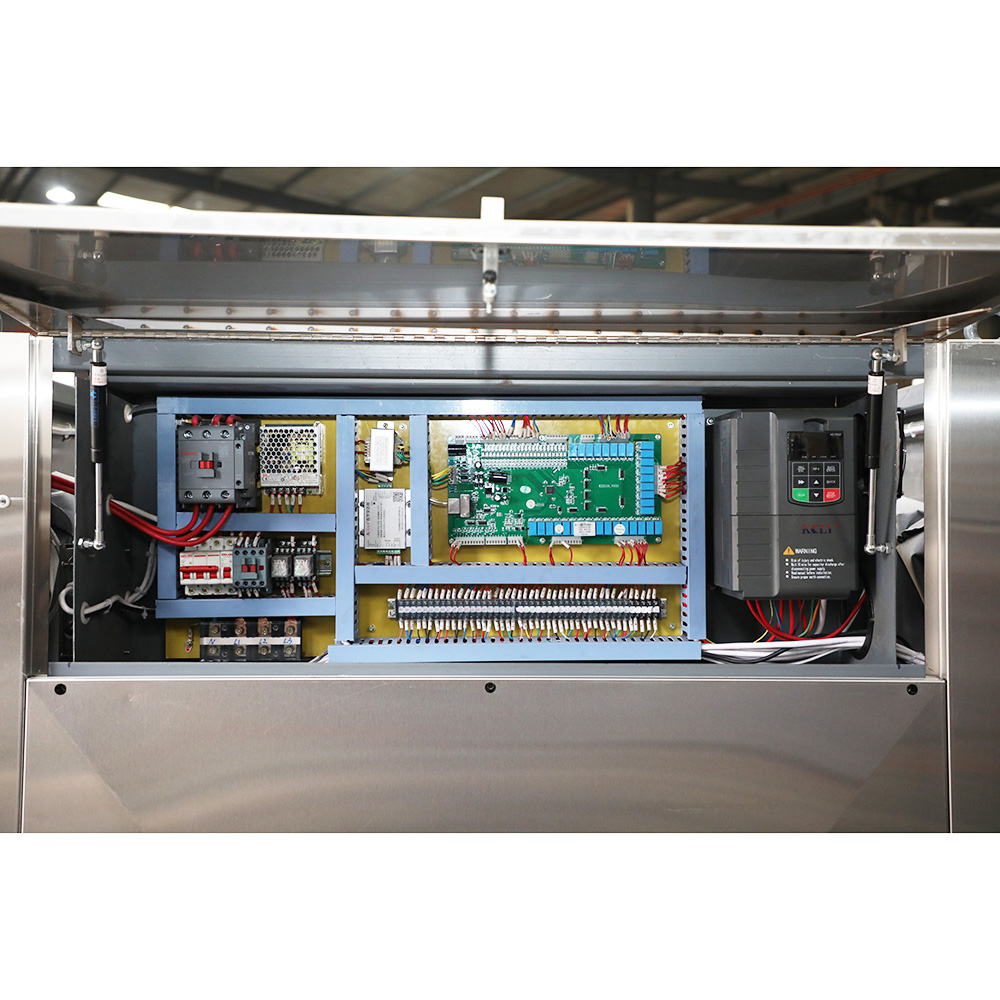

supplied with customized power distribution board with suitable incoming Circuit breaker, Over and under voltage relay, phase inversion protection, Residual current device
supplied with one cubic meter plastic tank mounted on metal frame stand of 2m height
supplied with starter kit of consumables for six months
supplied with two ergonomic spring laundry trolley with load leveler to allow the capacity to be constantly kept at the highest working level
CE/ISO approved
Application of Pharmaceutical Factory Uniform Sanitary Barrier Washing Machine 50kgs
Two door barrier washer 20kgs
Model | BW20 | BW30 | BW50 | BW100 |
Maximum Capacity kg | 20 | 30 | 50 | 100 |
Inner Drum D×L mm | Φ730×490 | Φ900× 500 | φ970×720 | Φ 1200×890 |
Motor Power kw | 2.2 | 4 | 5.5 | 11 |
Washing Speed rpm | 35 | 35 | 35 | 32 |
Rotation rpm | 70 | 70 | 70 | 65 |
Extracting Rotation rpm | 440 | 400 | 370 | 350 |
Fast Speed Rotation rpm | 920 | 800 | 750 | 750 |
Steam Inlet mm | DN20 | DN20 | DN20 | DN25 |
Water Inlet mm | DN40 | DN40 | DN40 | DN50 |
Drain mm | Φ89 | Φ89 | Φ89 | Φ 140 |
Water Pressure Mpa | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
Steam Pressure Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Air compressor Mpa | 0.4-0.5 | 0.4-0.56 | 0.4-0.5 | 0.4-0.5 |
Water Consumption kg | 300 | 450 | 700 | 1650 |
Steam Consumption kg | 15 | 25 | 45 | 50 |
Electricity Heating Power Kw | 18 | 24 | 36 | 48 |
Overall Dimension (Front Back) mm | 1250 (1300) | 1400 (1450) | 1500 (1550) | 1720 (1770) |
Overall Dimension (Left Right) mm | 1360 (1440) | 1370 (1450) | 1640 (1720) | 1810 (1890) |
Overall Dimension (Height) mm | 1690 (1840) | 1800 (1950) | 1880 (2030) | 2150 (2300) |
Weight kg | 800 | 1140 | 2000 | 3000 |
Power Supply V/Pn/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
Characters:
1.Double opposite doors for loading and unloading laundry.
2.Dirty clothes can be loaded on one side of the machine and unloaded, sanitized on the opposite side, once the washing cycle is complete
3.Doors can be interlocked to allow the loading on one side and unloading on other side
Have End of cycle alarm to save valuable process time
4.Automatic inner drum door opening (AIDO) at the end of the cycle for effortless and fast unloading operations
5.With microprocessor controlled with display not less than 5 inches
6.with full touchscreen or soft button controlled
7.With Double display to better manage the process on the clean side of the laundry
8.With Automatic positioning of drum with motor brake and UPS system for safety in case of power failure
9.With equipped with emergency stop button for both sides
10.Drum, vat and top panel shall be made in AISI 304 stainless steel
11.With Integrated the linen weighing system and adjusts the water level to the amount of linen, saving water, soap and energy at less than full load.
Safety Features
The machine should be designed keeping in a view the safety of the operator and machine:
(a) Outside basket doors should be interlocked electrically to ensure that the electrical drive system do not function until all the doors are firmly closed. The machine will not start if any of the doors is left open.
(b) The inside basket doors should be designed to ensure that unless these are locked in position with provided spring locks, the outside basket doors cannot be closed.
(c) An overflow arrangement prevents the machine from flooding with water.
(d) Thermal overload relay cuts off supply to the motor during the overloading
Pre-installation works shall be in contractor responsibilities and shall include the isolation of clean and dirty zones, the machine shall be chock protected against wall hitting during vibration, appropriate and durable dampers shall be used.
supplied with customized power distribution board with suitable incoming Circuit breaker, Over and under voltage relay, phase inversion protection, Residual current device
supplied with one cubic meter plastic tank mounted on metal frame stand of 2m height
supplied with starter kit of consumables for six months
supplied with two ergonomic spring laundry trolley with load leveler to allow the capacity to be constantly kept at the highest working level
CE/ISO approved
Application of Pharmaceutical Factory Uniform Sanitary Barrier Washing Machine 50kgs
Model | BW20 | BW30 | BW50 | BW100 |
Maximum Capacity kg | 20 | 30 | 50 | 100 |
Inner Drum D×L mm | Φ730×490 | Φ900× 500 | φ970×720 | Φ 1200×890 |
Motor Power kw | 2.2 | 4 | 5.5 | 11 |
Washing Speed rpm | 35 | 35 | 35 | 32 |
Rotation rpm | 70 | 70 | 70 | 65 |
Extracting Rotation rpm | 440 | 400 | 370 | 350 |
Fast Speed Rotation rpm | 920 | 800 | 750 | 750 |
Steam Inlet mm | DN20 | DN20 | DN20 | DN25 |
Water Inlet mm | DN40 | DN40 | DN40 | DN50 |
Drain mm | Φ89 | Φ89 | Φ89 | Φ 140 |
Water Pressure Mpa | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
Steam Pressure Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Air compressor Mpa | 0.4-0.5 | 0.4-0.56 | 0.4-0.5 | 0.4-0.5 |
Water Consumption kg | 300 | 450 | 700 | 1650 |
Steam Consumption kg | 15 | 25 | 45 | 50 |
Electricity Heating Power Kw | 18 | 24 | 36 | 48 |
Overall Dimension (Front Back) mm | 1250 (1300) | 1400 (1450) | 1500 (1550) | 1720 (1770) |
Overall Dimension (Left Right) mm | 1360 (1440) | 1370 (1450) | 1640 (1720) | 1810 (1890) |
Overall Dimension (Height) mm | 1690 (1840) | 1800 (1950) | 1880 (2030) | 2150 (2300) |
Weight kg | 800 | 1140 | 2000 | 3000 |
Power Supply V/Pn/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
Model | BW20 | BW30 | BW50 | BW100 |
Maximum Capacity kg | 20 | 30 | 50 | 100 |
Inner Drum D×L mm | Φ730×490 | Φ900× 500 | φ970×720 | Φ 1200×890 |
Motor Power kw | 2.2 | 4 | 5.5 | 11 |
Washing Speed rpm | 35 | 35 | 35 | 32 |
Rotation rpm | 70 | 70 | 70 | 65 |
Extracting Rotation rpm | 440 | 400 | 370 | 350 |
Fast Speed Rotation rpm | 920 | 800 | 750 | 750 |
Steam Inlet mm | DN20 | DN20 | DN20 | DN25 |
Water Inlet mm | DN40 | DN40 | DN40 | DN50 |
Drain mm | Φ89 | Φ89 | Φ89 | Φ 140 |
Water Pressure Mpa | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
Steam Pressure Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Air compressor Mpa | 0.4-0.5 | 0.4-0.56 | 0.4-0.5 | 0.4-0.5 |
Water Consumption kg | 300 | 450 | 700 | 1650 |
Steam Consumption kg | 15 | 25 | 45 | 50 |
Electricity Heating Power Kw | 18 | 24 | 36 | 48 |
Overall Dimension (Front Back) mm | 1250 (1300) | 1400 (1450) | 1500 (1550) | 1720 (1770) |
Overall Dimension (Left Right) mm | 1360 (1440) | 1370 (1450) | 1640 (1720) | 1810 (1890) |
Overall Dimension (Height) mm | 1690 (1840) | 1800 (1950) | 1880 (2030) | 2150 (2300) |
Weight kg | 800 | 1140 | 2000 | 3000 |
Power Supply V/Pn/Hz | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
Industrial drying machine is a kind of equipment that is dried by hot air, which can dry wool, cotton clothes, bed sheets and quilt covers
1. It adopts computer automatic control, and can configure different drying temperature and drying time according to drying requirements to realize automatic drying.
2 The inner drum is made of bright stainless steel with excellent heat resistance, the inner wall is smooth, and the wear of clothes is reduced
3 Equipped with a high-efficiency radiator and a reasonable air duct, so that the hot air directly contacts the clothes, which greatly improves the drying efficiency and saves energy.
4 There are various models such as external steam radiator or electric heating radiator, or natural gas radiator to choose from
