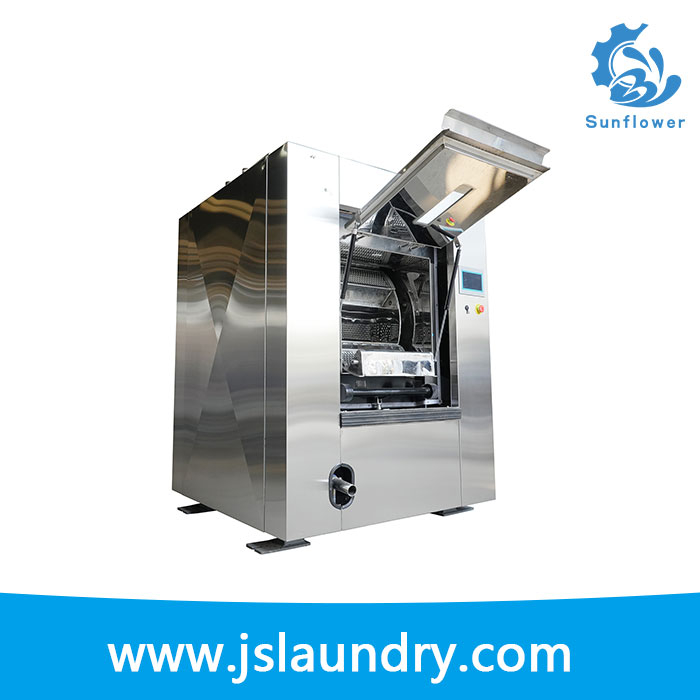

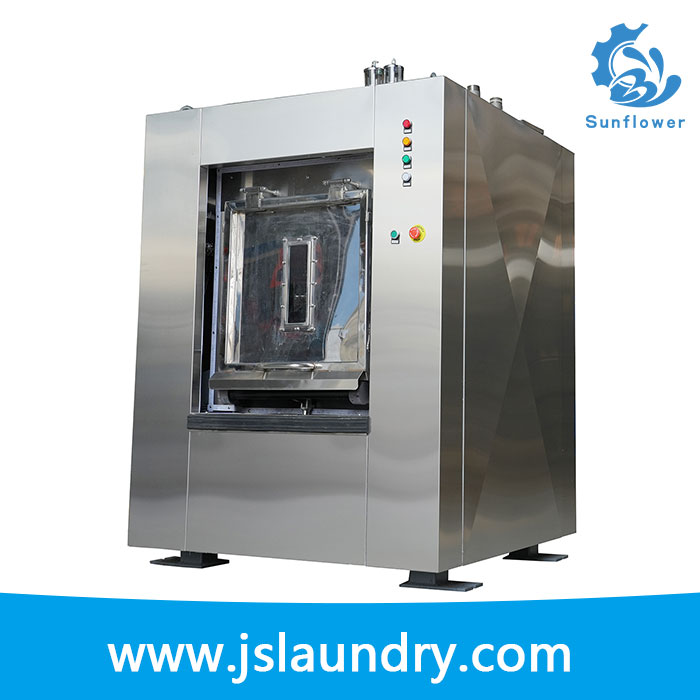

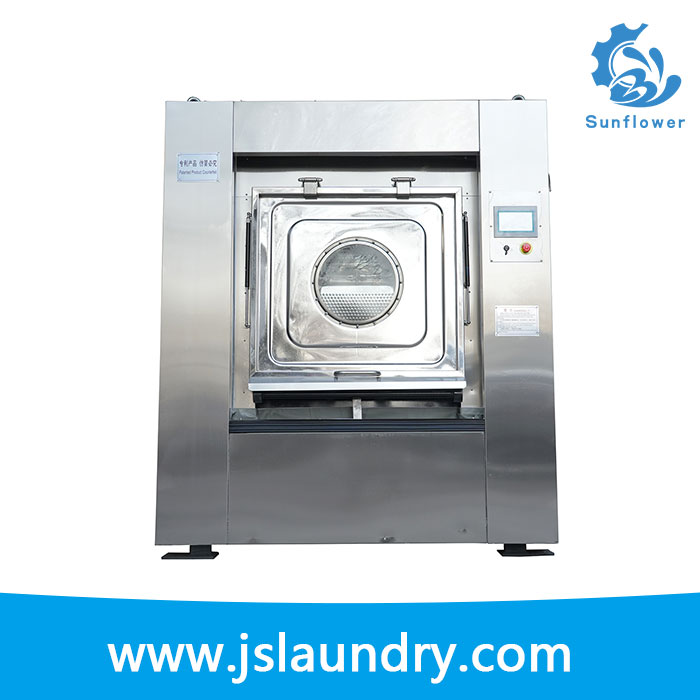

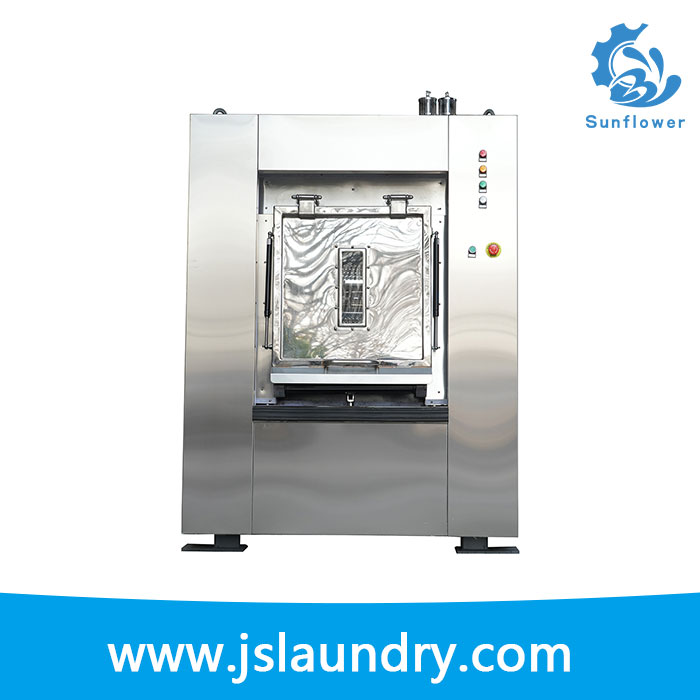

Healthcare Medical Hygiene Insolated Washer Extractor 100kg

Isolated Barrier Washer Extractor has three different size that 30kgs 50kgs 100kgs
Barrier Washer extractors can meet individual requirements. Volumes can be easily adapted when the business grows

Quantity:
  • BW-100F
  • HAIFENG
  • 84502012

Sanitary Hospital Washing Machine

Health-Care Isolated Barrier Washer extractors for Best  Hygiene Conditions

A It is suitable for washing clothes, wool, chemical fiber, silk and other clothing, linen, linen and other items to meet the medical laundry large-capacity laundry needs, the use of rear drainage structure, to solve the laundry clean and tidy; in vitro refueling, in line with ergonomic, Reducing the labor intensity of equipment maintenance, can achieve the initial wash, the main wash, disinfection, bleaching, cleaning, laundry and the whole process of automation.


B  Automatic elution machine using imported frequency conversion system, easy speed, start smooth low noise, energy saving effect is obvious, the transmission structure is simple and reliable


C  Healthcare Medical Hygiene Insolated Washer Extractor 100kg has fully automatic eluting machine with fully enclosed drainage frame structure design, reduce pollution, keep the workplace dry and clean. Inside and outside the tube are stainless steel. Increased service life


The outter cover shell , washing  drums  and washing chambers are all made of all stainless steel SS304  ,the washing drum is connected to the outer drum by main bearing system ,and efficient shock absorbing system will protect our washer extractor   during  its high speed rotation


E This hygienic Isolated Washer Extractor  has  friendly programmable operating panel which contains more than  30 programs  ,and it  is totally automatic that the operator just need to press one button ,the machine will finish adding water , washing ,heating and water exhaust all by itself


Our  Washer Extractor’s  shock absorbing system  is made of damper and strong springs ,which will efficiently reduce the shocking during washing


G Branded   invert  will control the frequency  motor to rate in different speed while washing  extracting and it will also help to reduce the current of the washer extractor


H  Isolated Barrier Washer Extractor has three different size that 30kgs 50kgs 100kgs

   Barrier Washer extractors can meet individual requirements. Volumes can be easily adapted when the business grows



You can add an extra wash, rinse or choose both to create a personalized wash cycle based on their individual needs.


Customers will appreciate the large LED display that leads the user through the washing process.

The specification of 100kg washer extractor is as follows

Model BW-100
Rated capacity(kg): 100kg
Drum capacity(L): 1000L
Motor power(kw): 11KW
Inventor power: 15kw
Washing rotation (rpm): 30rpm-35rpm
Dewatering rotation (rpm): 650rpm to 750rpm
Steam pressure (Mpa): 0.4-0.5
Overall dimensions(mm): 1810*1950*2160
Weight(kg): 3200
Our products are ISO9001 & CE certified.
Terms of payment: T/T/LC

model

BW50

BW100

rated capcity kg

50

100

drum

diametermm

Φ900

Φ1200

depth mm

800

1220

volume L

508

1000washing drum can be seperated into two parts

heated by

Electric/STEAM

Steam

G-FORCE

320

380

power V/Hz


380v

motor kw

5.5

11

inventor power kw

7.5

15

pipe port

water

25

40

steam

25

25

water exhaust

980

110

air compress MPa



water consumption kg

1200

1800

electricity consumption kwh

2.1

2.8

over all dimension (l*w*h)mm

1710*1590*1715

1810*1950*2165

weightkg

1900

2900


 model  BW-100  BW-50
 rated capacity  100kg  50kg
 drum dimension 1200*840  1080*600
 motor power 15 kw  5.5kw
 cleaning speed  30rpm  30rpm
 extracting speed  650rpm  750rpm
 steam presser  0.4-0.5 Mpa  0.4to 0.5Mpa
inventor power  15kw  7.5kw
electricity heating power -----  36kw
water inlet  1 1/2’’  1 1/2’
 steam inlet  1’’  1’
 chemical inlet  1/2’’  1/2’
 overall dimension  1600*1870*2000  1400*1600*1820
 weight  2800  2000
