You are here: Home » Products » Flatwork Ironer » Flatwork Ironer--1 roller » Flat Ironing Machine--Natural Gas Heated

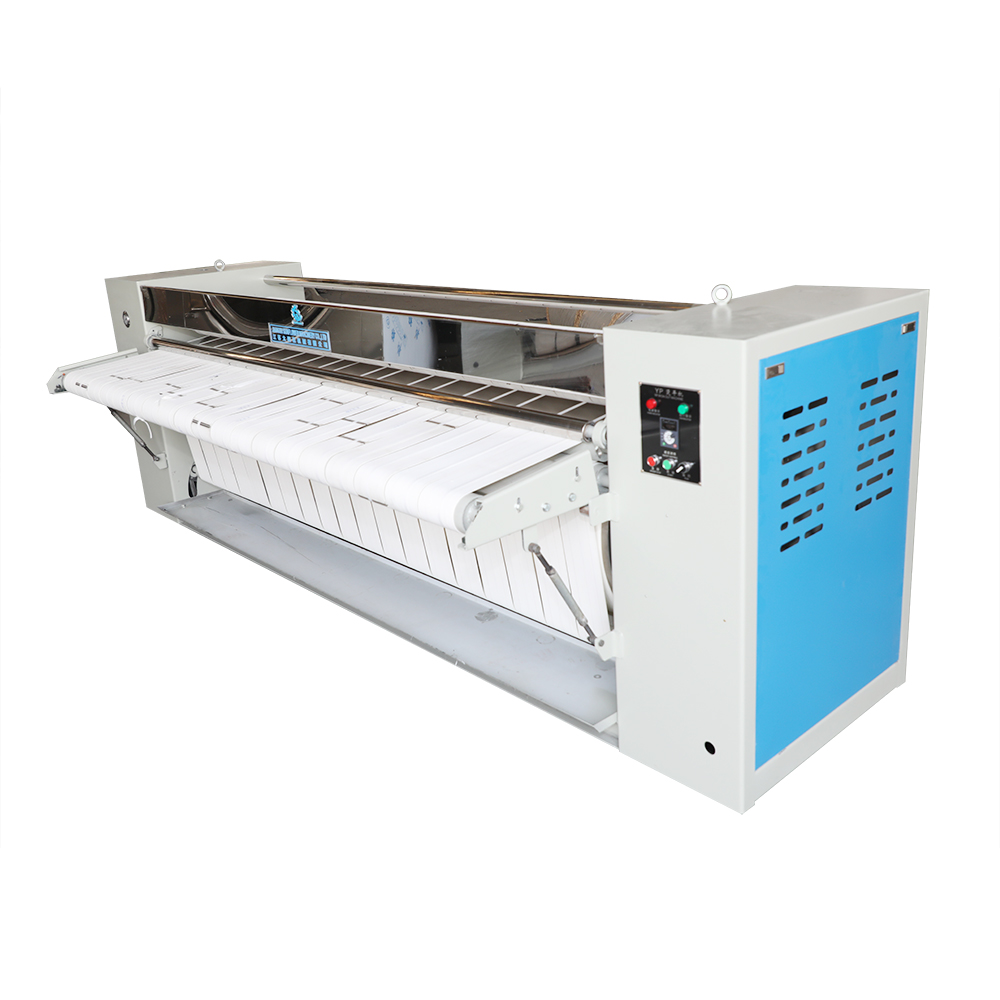

Flat Ironing Machine--Natural Gas Heated

Automatic Flatwork ironing machine is able to do ironing of bedsheet , quit cover ,pillow case and so on

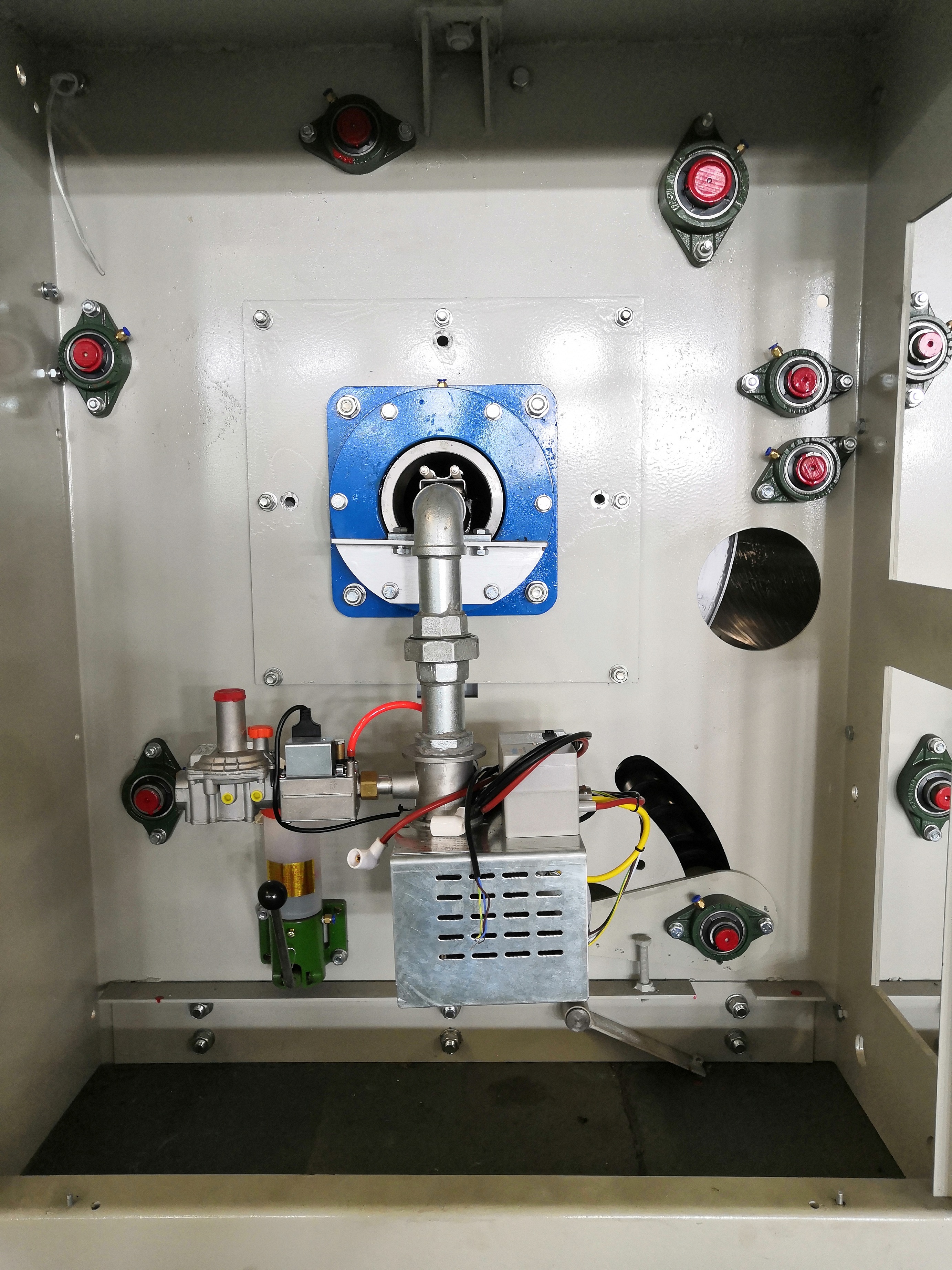

Way of heating ---Natural gas
Also have steam heated machine and electricity heated machine in opition

Quantity:
  • YPAI3000
  • HAIFENG
  • 84513000
Product Description

Features of Flatwork Ironer

1 Microprocessor controlling panel

2 Invert speed controller High productivity with minimum maintenance

3 Highest water evaporation capacity

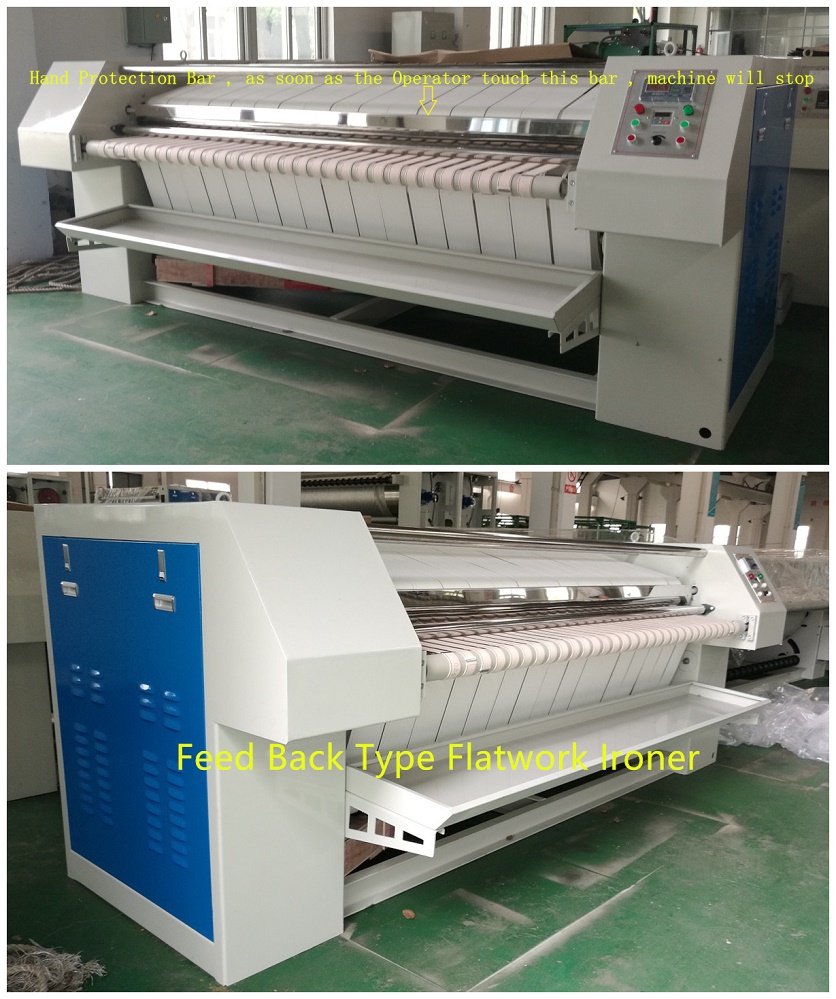

4  Finger guard protection Safe

5  easy to install User-friendly control

6 Temperature and/or speed adjustable any time

7  Frequency inverter Easy access to all components

8 Standard automatic cool down Optimized exhaust system

9 Different size of Roller is in opition

10 With high energy efficient

Model

YPAI2800

YPAI3000

YPAI3300

Ironing scope

0 meter to 2.8 meters

0 meter to 3 meters

0 meter to 3.3 meters

Drum quantity

1

1

1

Roller Material

Ss304

Ss304

Ss304

Drum size

Ø800mm*2800mm

Ø800mm*3000mm

Ø800mm*3200mm

Natural gas pressures

0.02 to 0.06 Mpa

0.02 to 0.06 Mpa

0.02 to 0.06 Mpa

Ironing speed

<=10 m/min

<=10 m/min

<=10m/min

LPG consumption

5kgs/h-10kgs/h

5kgs/h-10kgs/h

10kgs/h-15kgs/h

Motor power

0.75kw

0.75kw

0.75kw

Over all dimension

3840*1440*1400

4040*1440*1400

4340*1740*1400

Weight

1300kg

1500kg

1600kg

Taizhou Haifeng Machinery Manufacturing co,.ltd_副本Jeans DryerLaundry Machine CostNatural Gas Heating ironing machine (4)Calender Ironing MachineFeedback Type_副本Drying machine washing machineWashing MachineWasher Extractor


Technical Data Sheet
Machine&rsquo; s name

Ironing machine YPAI 3000

Model

YPAI3000

Number of drum

one

Steam presser

0.4mpa to 0.6mpa

Ironing speed

16m /s

Designed surface temperature

164  CENTIGRATE  when the presser meter shows 0.4 MPa

Steam consumption

85 kg /h

Motor power

0.75kg

Overall dimension

4010*1600*1400

Weight

1800
