Washing Machine 100kg (CE Approved)

Quantity:
  • XGQ-100F
  • ISO&CE
  • 100 Sets/Month
  • China
  • Wooden Case
  • Set
  • 1 Set
Character of this 100kg washing machine is as follows

1 This machine has function of washing and extracting

2 The shell and drums are all made of all stainless steel, the washing drum is connected to the outer drum by main bearing system, and the shock will be absorbed by special shock absorbing system while its high speed rotation

3 This machine has friendly programmable operating panel which contains more than 20 programs, this machine is totally automatic that the operator just need to press one button, the machine will finish adding water, washing, heating and water exhaust all by itself

4 Our machine has shock absorbing system which is made of damper and strong springs, which will efficiently reduce the shocking during washing, besides, we have install over shock switch on the frame of the machine, which will send signal to the machine to reduce the rotation, if the machine is over shocked for the reason of that the clothes are not well balanced.

5 LG invert which durable then brand Invert, and it will control the inverted motor to rate in different speed while washing and extracting. Besides, when the machine is braked. The invert will stop the machine together with the damper, will make it more efficient and make the machine last long time.

6 The whole system is made of Micro computer and air operated valve system, which will extend the life of the whole machine, and the door's enter -lock system will ensure the safety of the operator

Specification
Model XGQ-100F
Capacity 100kg
Motor power 7.5kw
Inventor power 11kw
Overall dimension 1600mm*1870mm*2000mm
Weight 2800kg
CE apprived

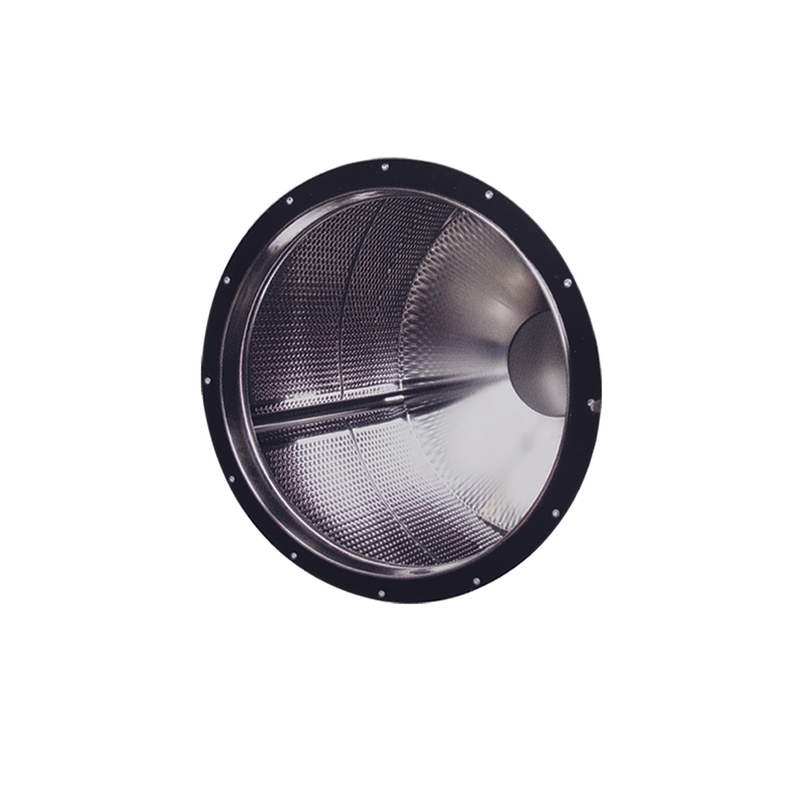

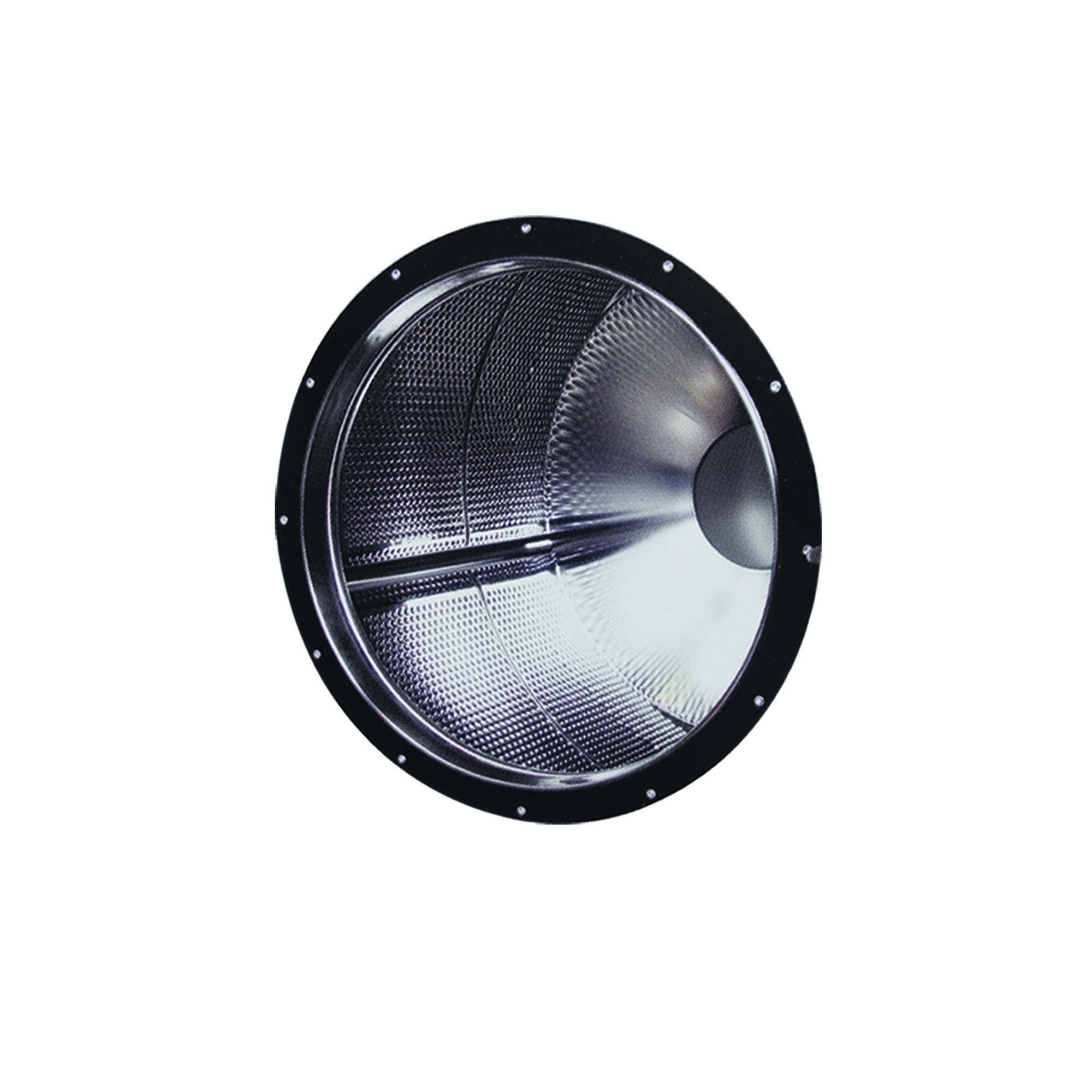

Washer Extractor 100kgs Machinery Parts -3
Washer Extractor 100kgs machinery parts-1
Washer Extractor 100kgs machinery parts-2

Model  XGQ-50F XGQ-70F  XGQ-100F
Rated capacity   50kg  70kg  100kg
Drum dimension  1080×600 1080*720mm 1200×840
Motor power  4kw 5.5kw 7.5kw
Rotation  38rpm-720rpm 84rpm-650rpm 33rpm-650rpm
Inventor power  4kw 5.5 11 kw
Electricity heating power  36 kw ---------   -------------
Water inlet  3/2’ 3/2’’ 11/2”
Steam inlet  1” 1’ 1”
Chemicals inlet  1/2”   1/2”
Overall dimension  1820*1500*1600 1850*1500*1720 1600*1870*2000
Weight  1500kg 2500kg  2800kg
