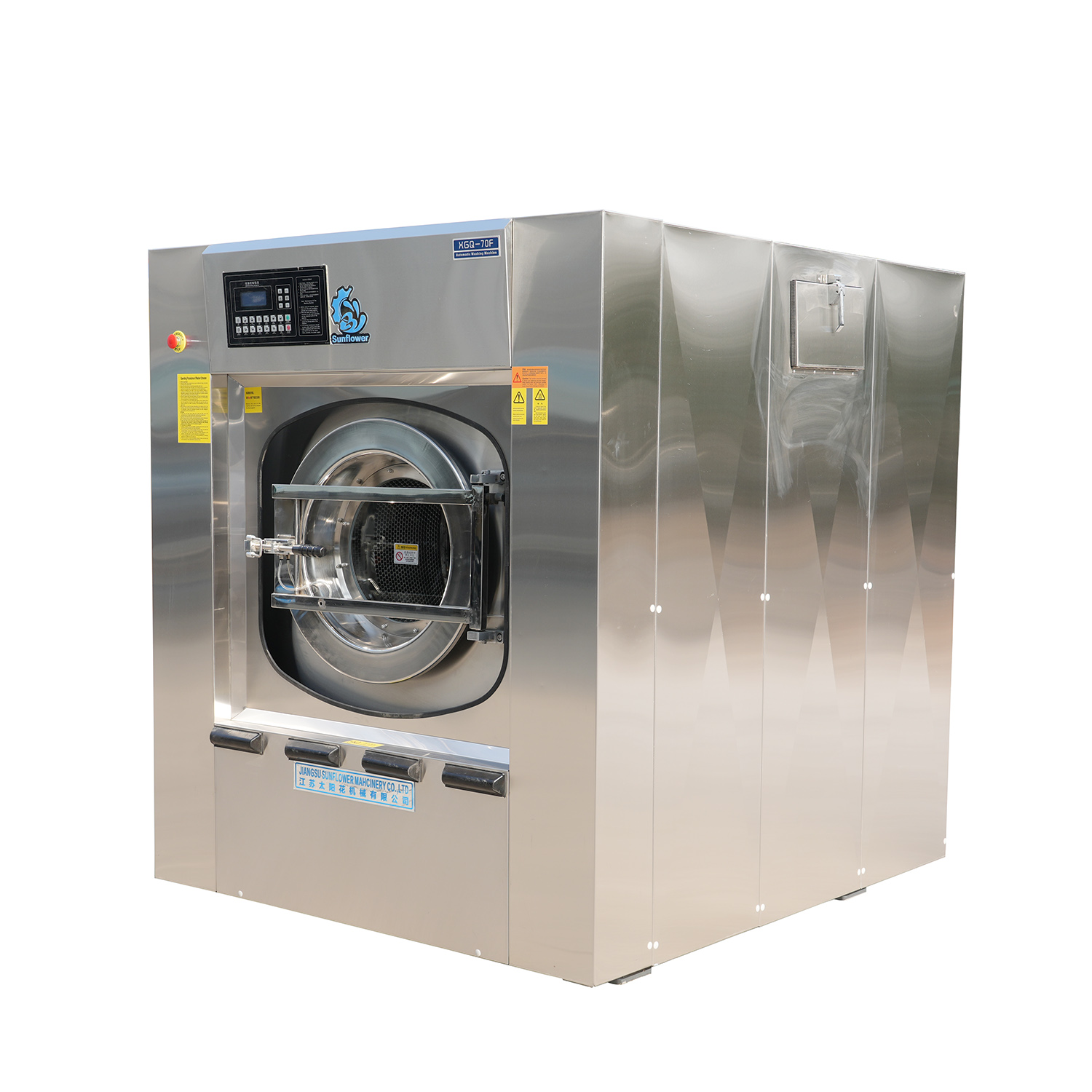

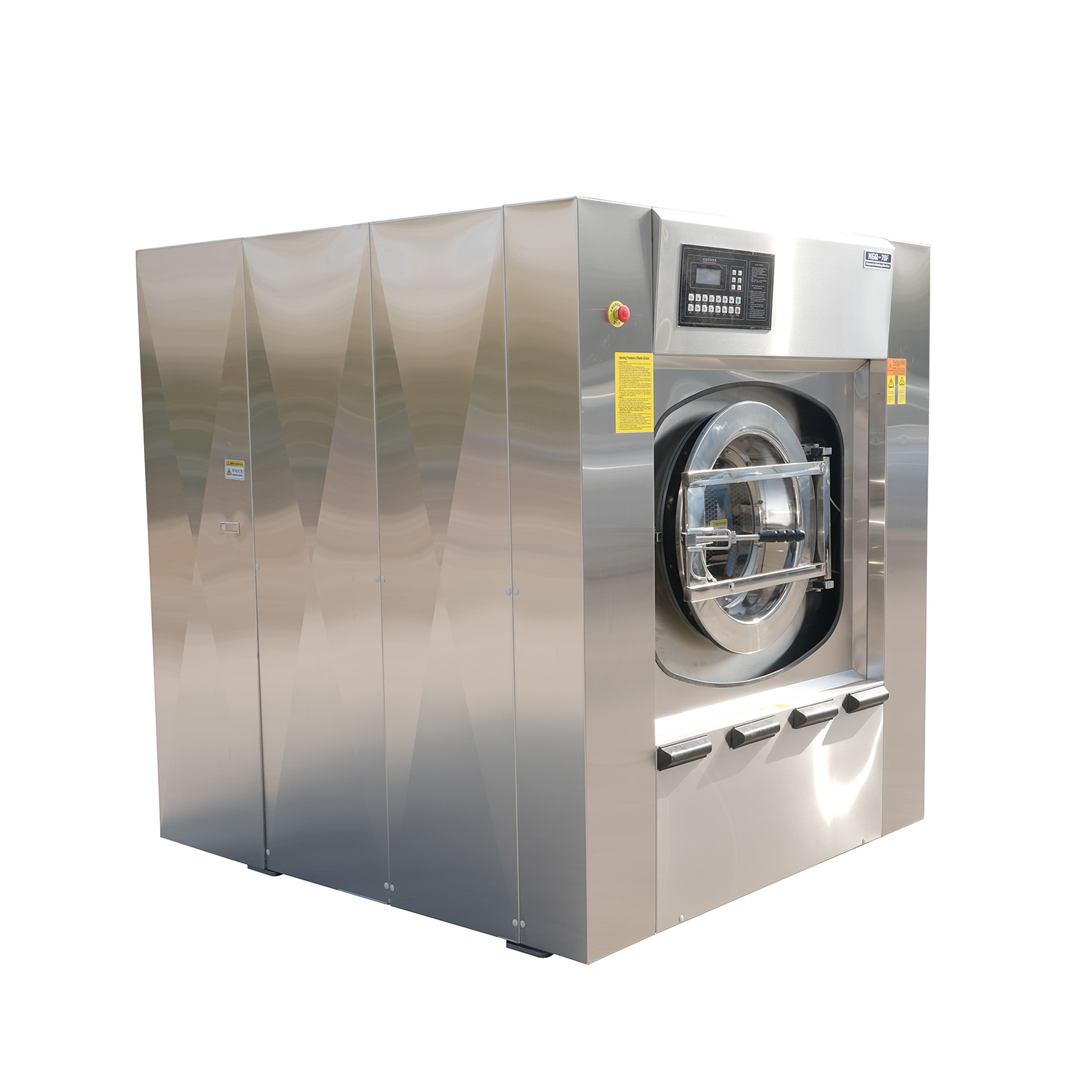

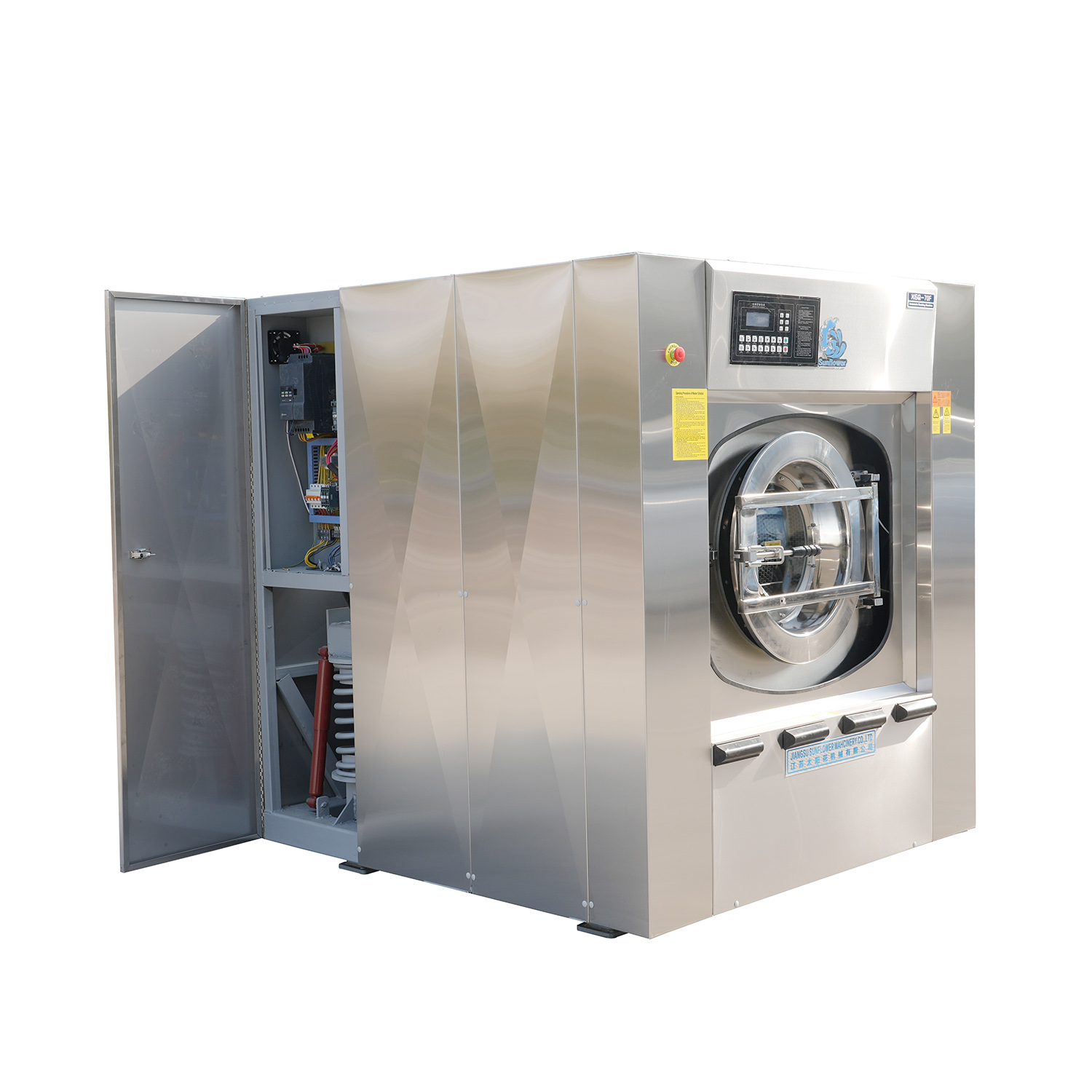

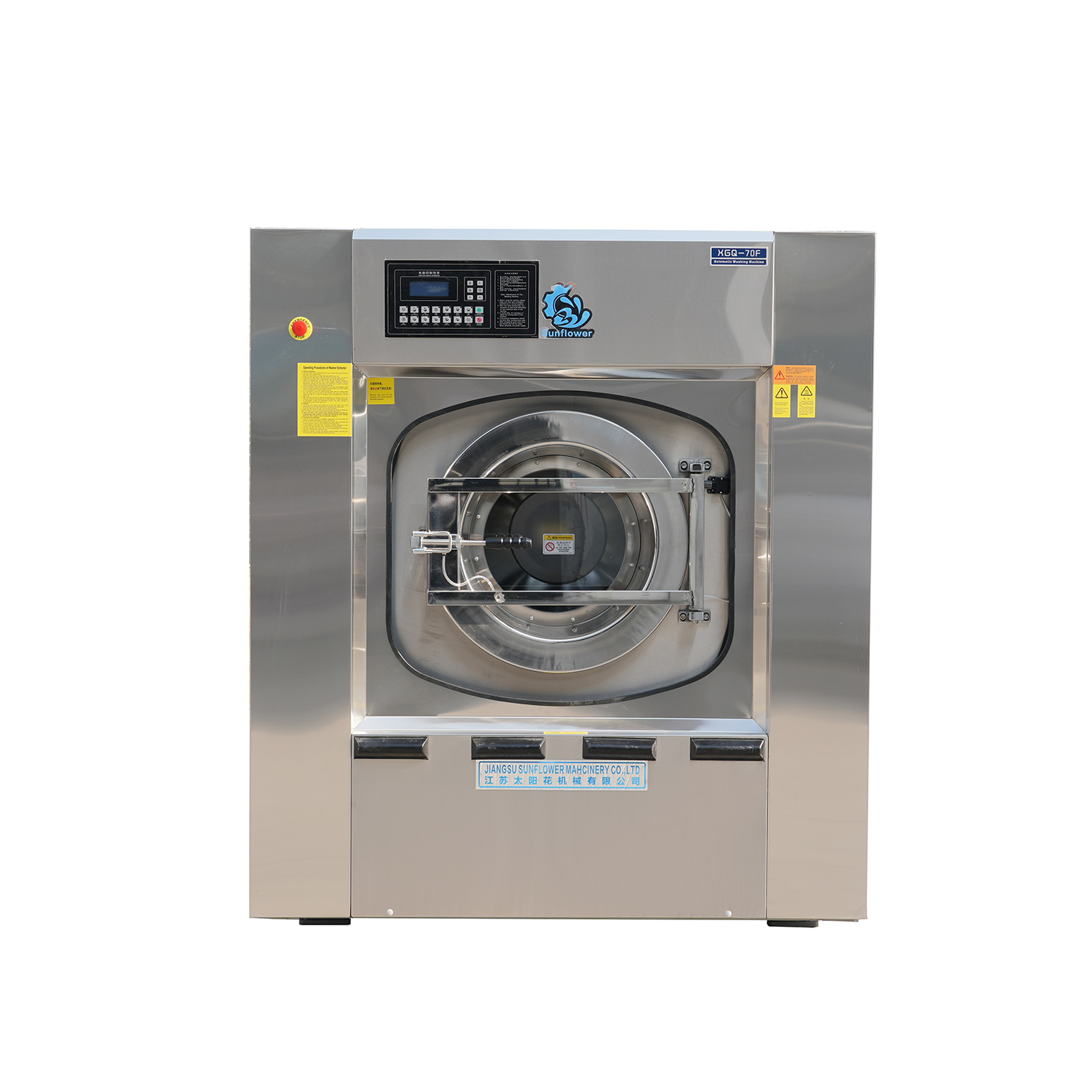

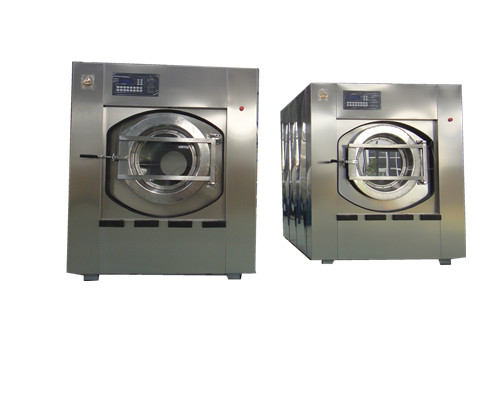

Washer Extractor 100kg

Quantity:
  • XGQ-100F
  • ISO9001
  • 50kg
  • CHINA
  • WOODEN CASES
  • SET
  • 1 SET
Description of Washer Extractor 100kgs

We have been providing successful laundry solutions to our customers, such as nursing home, hotel and athletic department. Our efficient, durable commercial laundry equipments are here to meet the your demanding needs.


The new Micro computer Controlled washer-extractors offer our customers with easy programming, and tremendous energy savings compared. Owners will be impressed with the water savings they achieve and the benefits to their operation. The easy-to-use controls and flexibility of the pre-programmed cycles will be a hit with customers. They can add an extra wash, rinse or choose both to create a personalized wash cycle based on their individual needs. Customers will appreciate the large LED display that leads the user through the washing process.

Character of Washer Extractor 100kgs

Stainless steel Washing drums , including outter drum and inner drum
Well Known brand Frequency controller to control the speed system and protect the Frequency motor
Efficient shock reducing system to protect the whole system
NSK bearing system
English programmable operating panel is able to remember more than 30 programs
Pneumatic operating system
Safty Interlock




The new XGQ-F series washer-extractors are available in 15kgs ,20kgs 25kgs,30kgs, 50kgs , and 100 KGS capacities.

Model: XGQ-100F

Rated capacity(kg): 100

Drum capacity(L): 1014

Motor power(kw): 7.5

Washing rotate(rpm): 30

Dewatering rotate(rpm): 650

Steam pressure (Mpa): 0.4-0.5

Overall dimensions(mm): 1968*1680*1934

Weight(kg): 3200

Our products are ISO9001 & CE certified.

Terms of payment: T/T
Model  XGQ-15F  XGQ-20F  XGQ-25 XGQ-30F XGQ-50F XGQ-70F  XGQ-100F
Rated capacity  15KG  20KG 25 30kg  50kg  70kg  100kg
Drum dimension  380*650 700*500 800*500 90470 1080×600 1080*720mm 1200×840
Motor power  1.5kw  2.2kw 3.7kw 3kw 4kw 5.5kw 7.5kw
Rotation  40rpm-800rpm  40rpm-800rpm 40rpm-800rpm 40rpm-800rpm 38rpm-720rpm 84rpm-650rpm 33rpm-650rpm
Inventor power  1.5kw  2.2 kw 4 kw 3 kw 4kw 5.5 11 kw
Electricity heating power  6 kw  12 kw 22 kw 24 kw 36 kw ---------   -------------
Water inlet  0.6  1 11/2” 11/2” 3/2’ 3/2’’ 11/2”
Steam inlet  0.6  1/2’ 3/4” 3/4” 1” 1’ 1”
Chemicals inlet  0.6  1/2” 1/2” 1/2” 1/2”   1/2”
Overall dimension  1100*970*1420  1130*1000*1420 1230*1260*1700 1350*1340*1700 1820*1500*1600 1850*1500*1720 1600*1870*2000
Weight  450kg  500kg 890kg 890kg 1500kg 2500kg  2800kg
