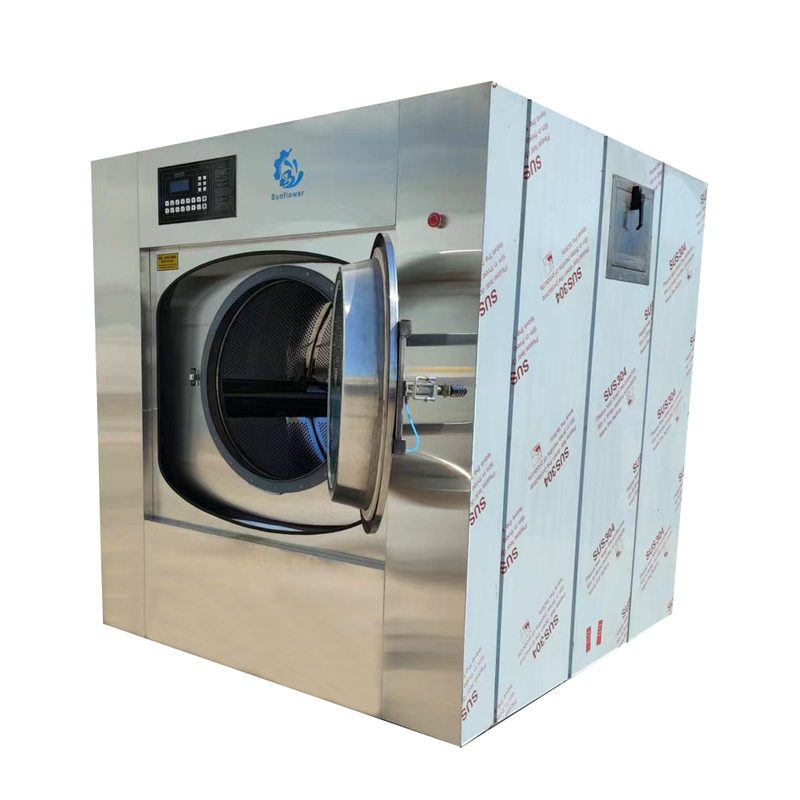

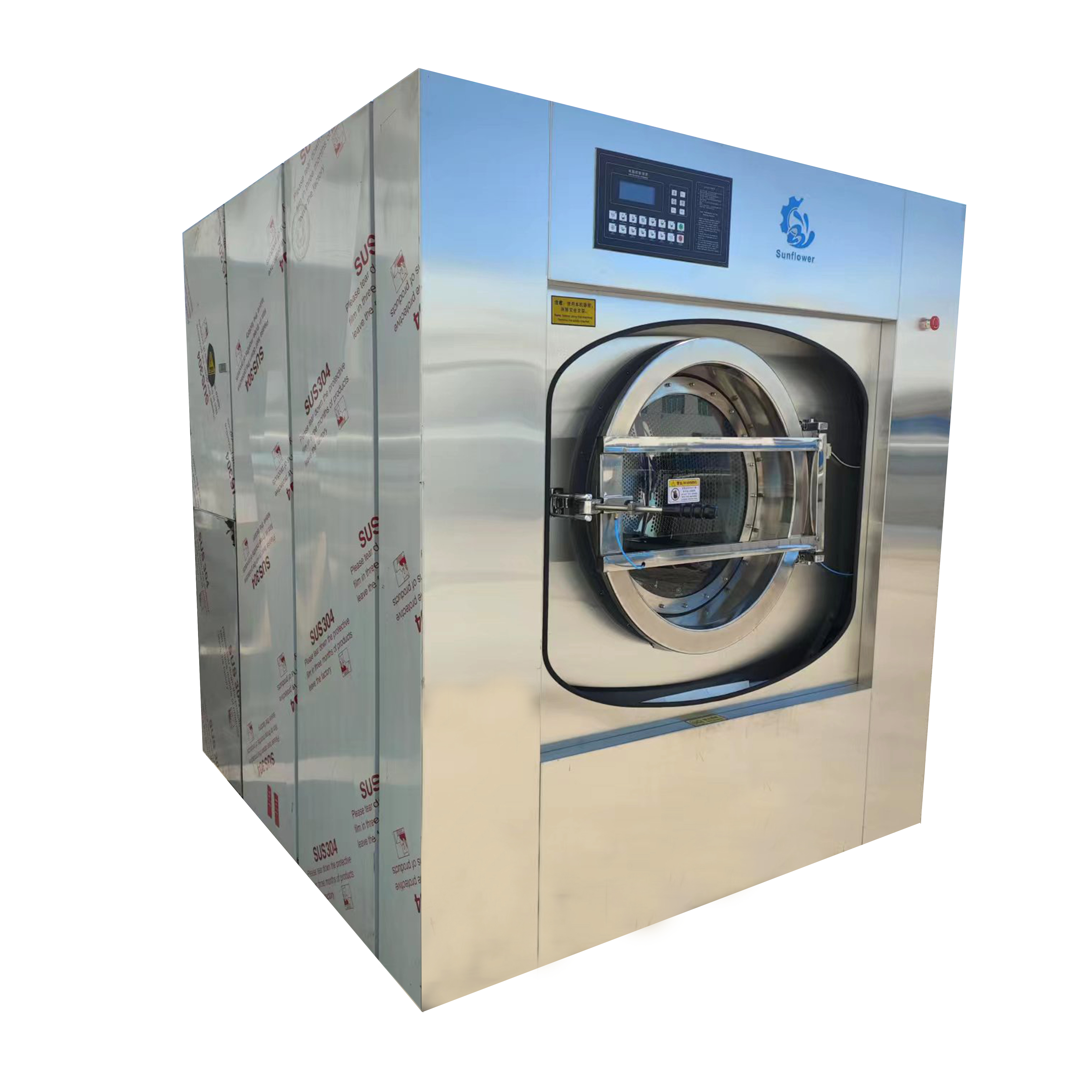

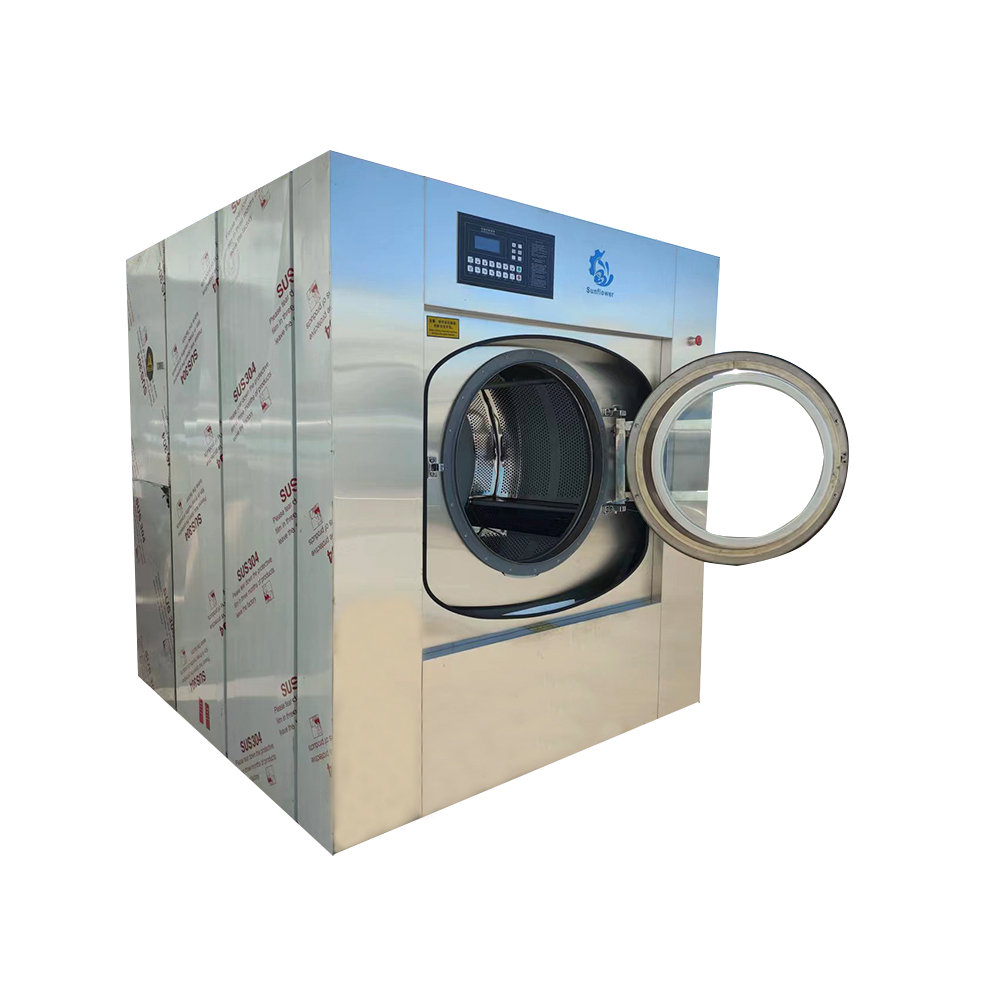

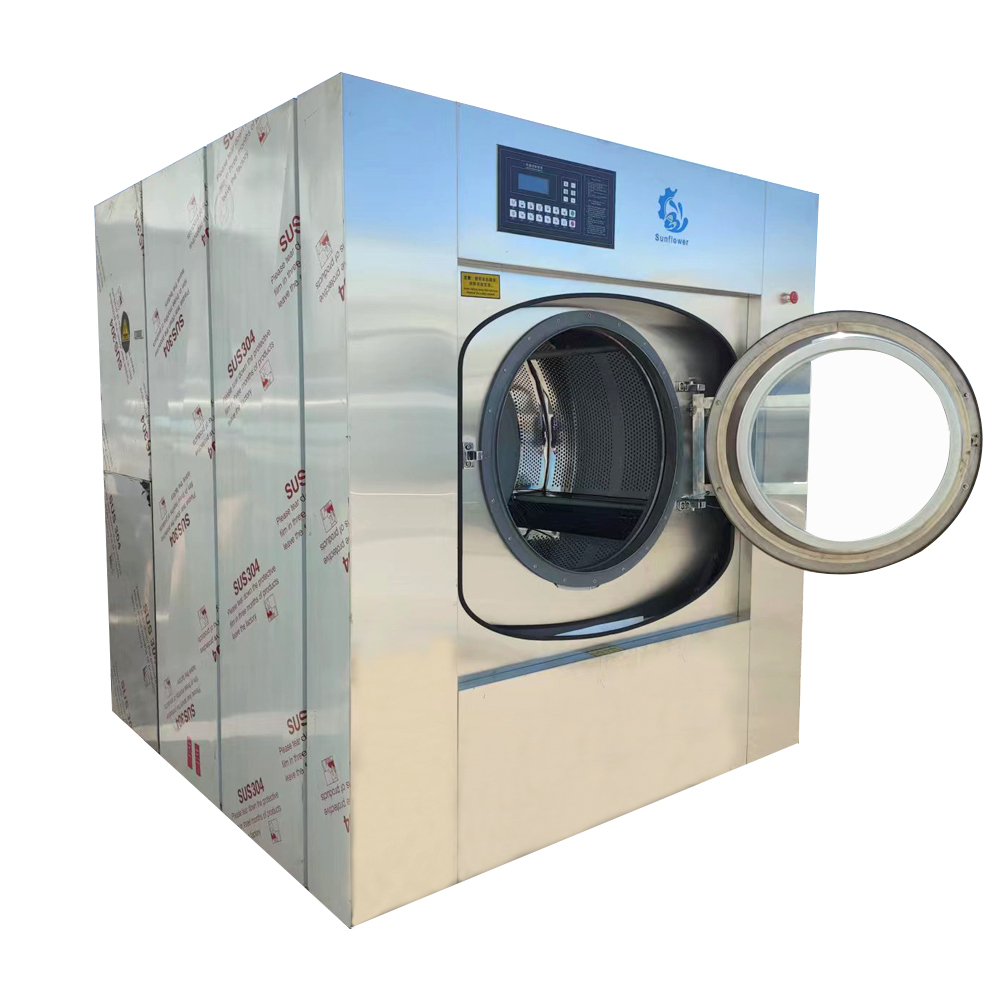

Washer Extractor 100kg CE (XGQ-100F)

Quantity:
  • XGQ-100F
  • ISO9001 &CE
  • 30sets/Month
  • China
  • Wooden Case
  • SET
  • 1SET
  • 1
  • T/T
A. Our energy saving features and our robust design ensure low cost of ownership and infrequent maintenance.

B. Simple design and fewer parts are the guarantee.

C. Our outstanding warranty covers most parts for 2 years plus frame, shaft, cylinder and shell for 5 years

Freestanding construction

A. All the great features of a free standing machine at hardmount pricing.
B Installation costs are significantly reduced while your laundry's productivity increases. No need for expensive foundations for floor modification.
C 350G extract speeds mean less time in the dryer, saving energy and money. Robust design means lower maintenance costs and super long life.
D. Solid bearing housing, WHICH IS IMPORTED FROM jPANAN, BRND NSK
Rugged cast iron construction is used in our durable bearing hosing. The shaft is constructed of high strength steel, the seals are greaseable yielding longer life. Should the seals leak, the main beaings will not be damaged thanks to an extra large leak off area
Power Control Center
E. The electronic control center is easy to use and ensures that the maximum productivity and the lowest cost of operation are obtained. The microprocessor controls the temperatures, water, levels, speeds and maintenance intervals. It can be programmed both individually and with a PC.

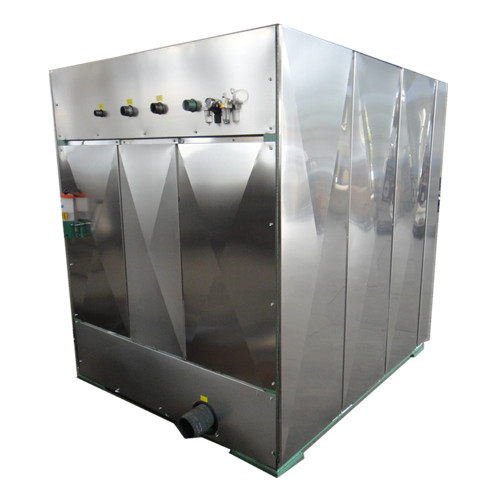

F. 100kg washer extractor has two water adding inlet port and two water exhaust system, It will Short the washing cycle

G This machine's beaing system is NSK Japan IMPORTED
Washer extractors are avaliable in following capacities:

15kg 20kg 25kg 30kg 50kg 70kg 100kg

Specification of 100kg washer extractor

Model XGQ-100F
Rated Capacity(kg): 100kg
Drum Capacity(L): 1000L
Motor Power(kw): 7.5KW
Inventor Power: 11kw
Washing Rotation (rpm): 30rpm-35rpm
Dewatering Rotation (rpm): 650rpm to 750rpm
Heating Type: Steam
Steam Pressure (Mpa): 0.4-0.5
Overall Dimensions(mm): 1600*1870*2000
Weight(kg): 3200
Item  Unit XGQ-15F XGQ-20F XGQ-25F XGQ-30F XGQ-50F XGQ-70F XGQ-100F
CAPACITY  Load capacity Kg 15 20 25 30 50 70 100
  Drum dimension D*L Mm 380*650 700*500 800*500 90470 1080×600 1080*720mm 1200×840
  Cylinder dimension D*L Mm
Motor  Frequency controlled  Kw 1.5kw  2.2kw 3kw 3kw 4kw 5.5kw 7.5kw
  Electricity heating pipe  Kw 12 12 24 24 48 48 -------
  Power consumption
 per cycle
Kw 0.4kw(stm)
3.5kw(ele)
0.6kw(stm)
4kw(ele)
0.8kw(stm)
5kw(ele)
0.8kw(stm)
5kw(ele)
1kw (stm)

7kw(ele)
1.5kw 1.8kw
Drum  Wash speed  Rpm  45 45 40 40 30 30 30
  Balance speed  Rpm 75 75 75 60 60 60 60
  Medium/high spin speed  Rpm  500/950 500/950 420/850 420/850 420/750 420/700 420/650
  G-Factor-extract  G 308 308 312 312 316 321 321
  Stainless steel 304 ---- standard standard standard standard standard standard standard
Programmer  Full programmer operation panel  ---- standard standard standard standard standard standard standard
  Programs can remember Pc 15 15 30 30 30 30 30
Heating type  Steam  Standard  Standard Standard Standard Standard Standard Standard
  Electricity Standard Standard Standard Standard Standard N/A N/A
Water  Water inlet DN Mm 20 20 25 50 50 75 75
  Water pressure  Bar 2-4 2-4 2-4 2-4 2-4 2-4 2-4
  Water consumption Kg 300 350 400 500 750 1200 1800
Drain  Mm 50 50 80 80 80 140 140
Steam  Steam inlet (DN) Mm 15 15 20 20 25 25 25
  Steam pressure  Bar 4-6 4-6 4-6 4-6 4-6 4-6 4-6
  Steam consumption per cycle  K 8 10 20 30 35 40 50
Dimension
L*W*H
Mm 1100*970*1420  1130*1000*1420 1230*1260*1700 1350*1340*1700 1820*1500*1600 1850*1500*1720 1600*1870*2000
