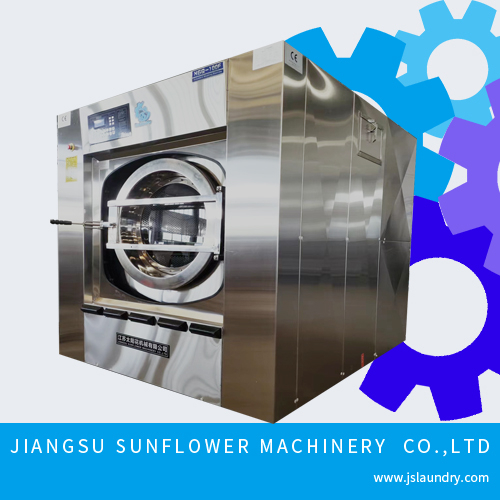

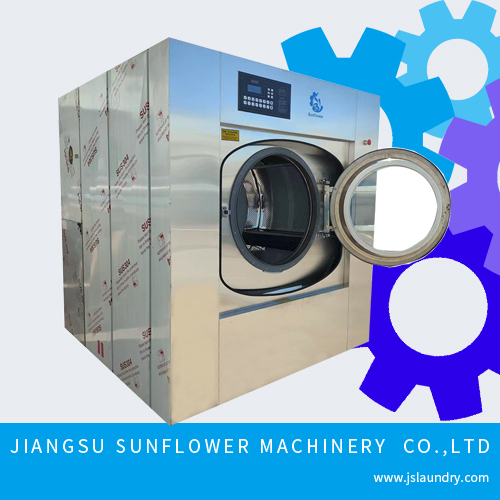

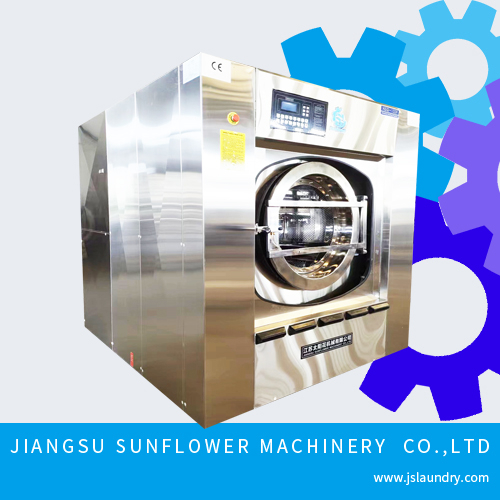

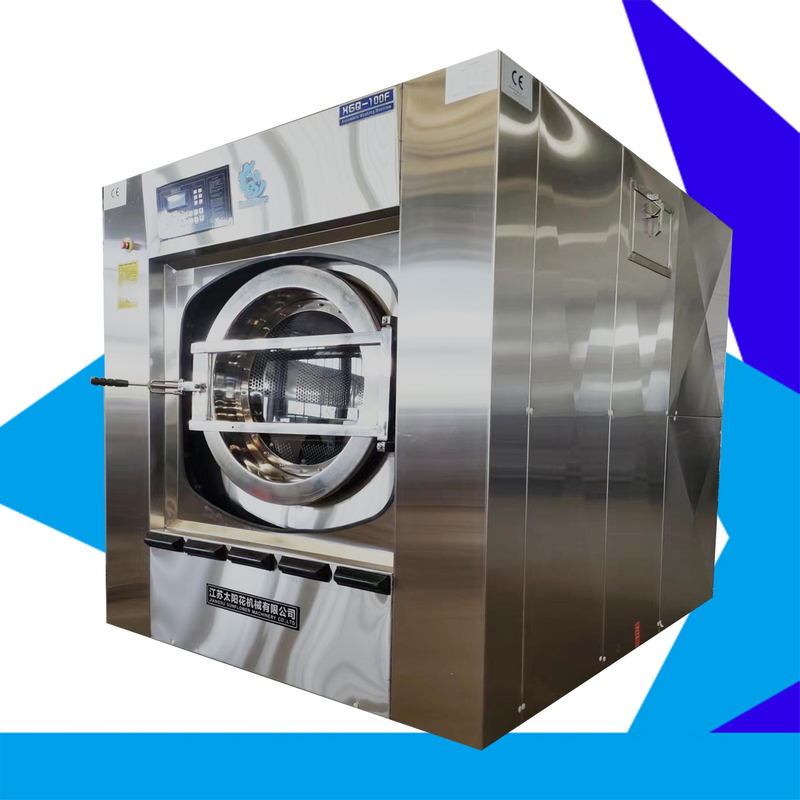

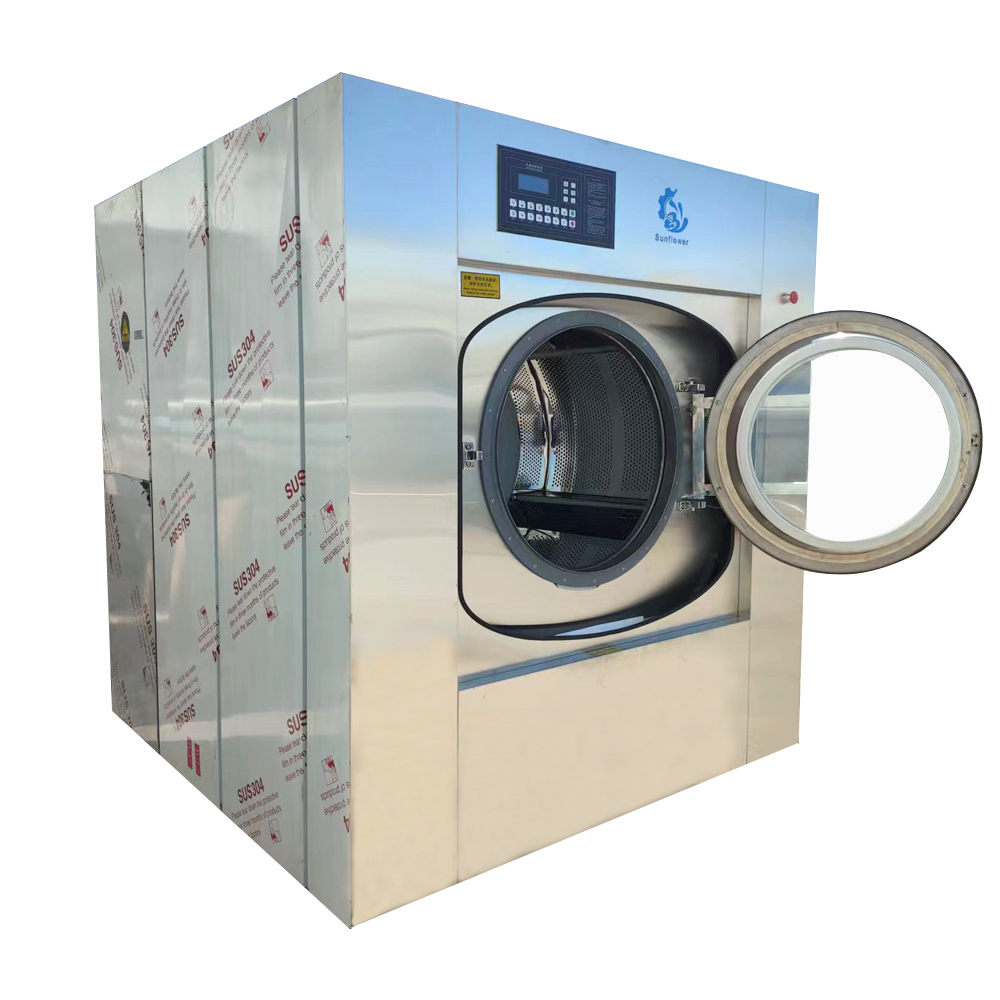

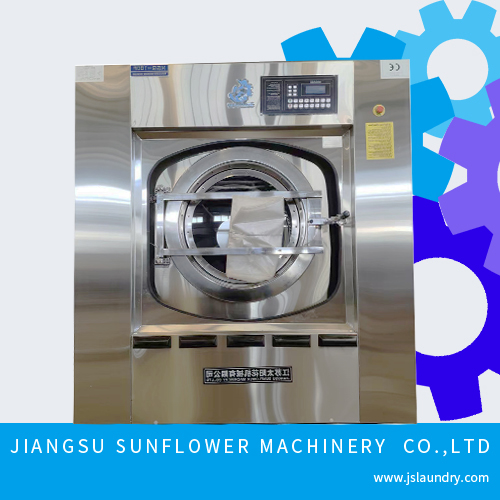

Programmable Front Loaded Industrial Laundry Equipment 100kgs

Industrial Laundry Equipment to wash fabric from hotels hosptial armies Railway station and so on
All Stainless steel structure
hot water
cold water
steam heated
electricity heated
English/Spainish/Russian Operation system

Quantity:
  • XGQ-100F
  • HAIFENG
  • 84502012


Laundry Equipment

Programmable Front Loaded  Industrial laundry equipment is perfrect Laundry Machinery For you to start Laundry Business

for hotel ,hosptial ,citizen laundry shop and so on


The Main character of the laundry equipment is as follows


A. Soft Amounted installation ,make the installation easy and simple ,meanwhile this laundry equipment has smooth high speed extracting

B Installation costs are significantly reduced while your laundry's productivity increases. No need for expensive foundations for floor modification. The operator just need to make sure the foundation of the laundry shop floor being well leveled

C This Laundry Equipment has  350G extracting force  ,the washed garments need less time in the dryer machine , it will help the operator to save  energy and money. Robust design means lower maintenance costs and super long life.

D. Solid bearing housing, WHICH IS IMPORTED FROM jPANAN, BRND NSK
Rugged cast iron construction is used in our durable bearing hosing. The shaft is constructed of high strength steel, the seals are greaseable yielding longer life. Should the seals leak, the main beaings will not be damaged thanks to an extra large leak off area Power Control Center

E. The electronic control center is easy to use and ensures that the maximum productivity and the lowest cost of operation are obtained. The microprocessor controls the temperatures, water, levels, speeds and maintenance intervals. It can be programmed both individually and with a PC.

F. 100kg washer extractor has two water adding inlet port and two water exhaust system, It will Short the washing cycle



Specification
Model XGQ-100F
Rated Capacity(kg): 100kg
Drum Capacity(L): 1000L
Motor Power(kw): 7.5KW
Inventor Power: 11kw
Washing Rotation (rpm): 30rpm-35rpm
Dewatering Rotation (rpm): 650rpm to 750rpm
Heating Type: Steam
Steam Pressure (Mpa): 0.4-0.5
Overall Dimensions(mm): 1600*1870*2000
Weight(kg): 3200

Model

XGQ-50F

XGQ-70F

XGQ-100F

Rated capacity

 50kg

 70kg

100kg

Drum dimension

1080×600

1080*720mm

1200×840

Motor power

4kw

5.5kw

7.5kw

Rotation

38rpm-720rpm

84rpm-650rpm

33rpm-650rpm

Inventor power

4kw

5.5

11 kw

Electricity heating power

24kw

24kw

 48kw

Water inlet

3/2

3/2’’

11/2”

Steam inlet

1”

1

1”

Chemicals inlet

1/2”


1/2”

Overall dimension

1620*1600*1600

1850*1600*1720

1600*1870*2000

Weight

2000kg

2500kg

3200kg


Taizhou Haifeng Machinery Manufacturing co,.ltd_副本Laundry Machine CertificateLaundry Washing Machine 01Washing MachineWasher ExtractorLaundry Washing MachineLaundry Machine ManufactureDrying MachineDrying machine washing machine


Model  XGQ-15F  XGQ-20F  XGQ-25 XGQ-30F XGQ-50F XGQ-70F  XGQ-100F
Rated capacity  15KG  20KG 25 30kg  50kg  70kg  100kg
Drum dimension  380*650 700*500 800*500 90470 1080×600 1080*720mm 1200×840
Motor power  1.5kw  2.2kw 3.7kw 3kw 4kw 5.5kw 7.5kw
Rotation  40rpm-800rpm  40rpm-800rpm 40rpm-800rpm 40rpm-800rpm 38rpm-720rpm 84rpm-650rpm 33rpm-650rpm
Inventor power  1.5kw  2.2 kw 4 kw 3 kw 4kw 5.5 11 kw
Electricity heating power  6 kw  12 kw 22 kw 24 kw 36 kw ---------   -------------
Water inlet  0.6  1 11/2” 11/2” 3/2’ 3/2’’ 11/2”
Steam inlet  0.6  1/2’ 3/4” 3/4” 1” 1’ 1”
Chemicals inlet  0.6  1/2” 1/2” 1/2” 1/2”   1/2”
Overall dimension  1100*970*1420  1130*1000*1420 1230*1260*1700 1350*1340*1700 1820*1500*1600 1850*1500*1720 1600*1870*2000
Weight  450kg  500kg 890kg 890kg 1500kg 2500kg  2800kg
