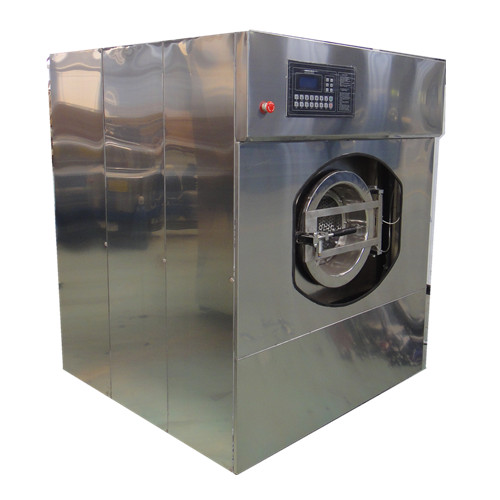

Laundry Machine 30kg

Quantity:
  • XGQ-30F
  • ISO9001 &CE
  • 30sets/Month
  • China
  • Wooden Case
  • set
  • One Set
XGQ Serious
On premise washer-extractors
15kg 20kg 30kg 50kg 70kg 100kg (freestanding )
Outstanding reliability and efficient at a price you can afford
Powerful, efficient and affordable. These are the design keys for XGQ serious of freestanding washer -extractors, from Haifeng equipment. Our energy saving features and our robust design ensure low cost of ownership and infrequent maintenance. Simple design and fewer parts are the guarantee. Our outstanding warranty covers most parts for 2 years plus frame, shaft, cylinder and shell for 5 years. We know you don't have time to deal with break down
Freestanding construction
All the great features of a free standing machine at hardmount pricing. Installation costs are significantly reduced while your laundry's productivity increases. No need for expensive foundations for floor modification. 350G extract speeds mean less time in the dryer, saving energy and money. Robust design means lower maintenance costs and super long life.
Solid bearing housing
Rugged cast iron construction is used in our durable bearing hosing. The shaft is constructed of high strength steel, the seals are greaseable yielding longer life. Should the seals leak, the main beaings will not be damaged thanks to an extra large leak off area
Power Control Center
The electronic control center is easy to use and ensures that the maximum productivity and the lowest cost of operation are obtained. The microprocessor controls the temperatures, water, levels, speeds and maintenance intervals. It can be programmed both individually and with a PC.

The specification of 100kg washer extractor is as follows

Model XGQ-30F
Rated capacity(kg): 30kg
Drum capacity(L): 300L
Motor power(kw): 3KW
Inventor power: 4kw
Washing rotation (rpm): 30rpm-35rpm
Dewatering rotation (rpm): 650rpm to 850rpm
Steam pressure (Mpa): 0.4-0.5
Overall dimensions(mm): 1600*1870*2000
Weight(kg): 3200
Our products are ISO9001 & CE certified.
Terms of payment: T/T/LC
  model   XGQ-100F   XGQ-50F XGQ-30F   XGQ-20F XGQ-15F
  rated capacity   100kg   50kg 30kg   20kg   15kg
  drum dimension 1200*840   1080*600 820*550    700*480   600*420
  motor power   7.5kw   4kw   4kw   2.2kw   2.2kw
  cleaning speed   30rpm   30rpm   38rpm   38rpm   40rpm
  extracting speed   650rpm   750rpm   800rpm   850rpm   900rpm
  steam presser   0.4-0.5 Mpa   0.4to 0.5Mpa   0.4-0.5Mpa   0.4-0.5Mpa   0.4to0.5Mpa
inventor power   11kw   4kw   4kw   4kw   3kw
electricity heating power -----   36kw   24kw   22kw   12kw
water inlet   1 1/2’ ’   1 1/2’   1 1/2’ 1 1/2’   1’
  steam inlet   1’ ’   1’   3/4’   3/4’   3/4’
  chemical inlet   1/2’ ’   1/2’   1/2’   1/2’   1/2’
  overall dimension   1600*1870*2000   1400*1600*1820   1100*1300*1600   1130*1000*1420   950*1000*1470
  weight   2800   2000   890   890   500kg
