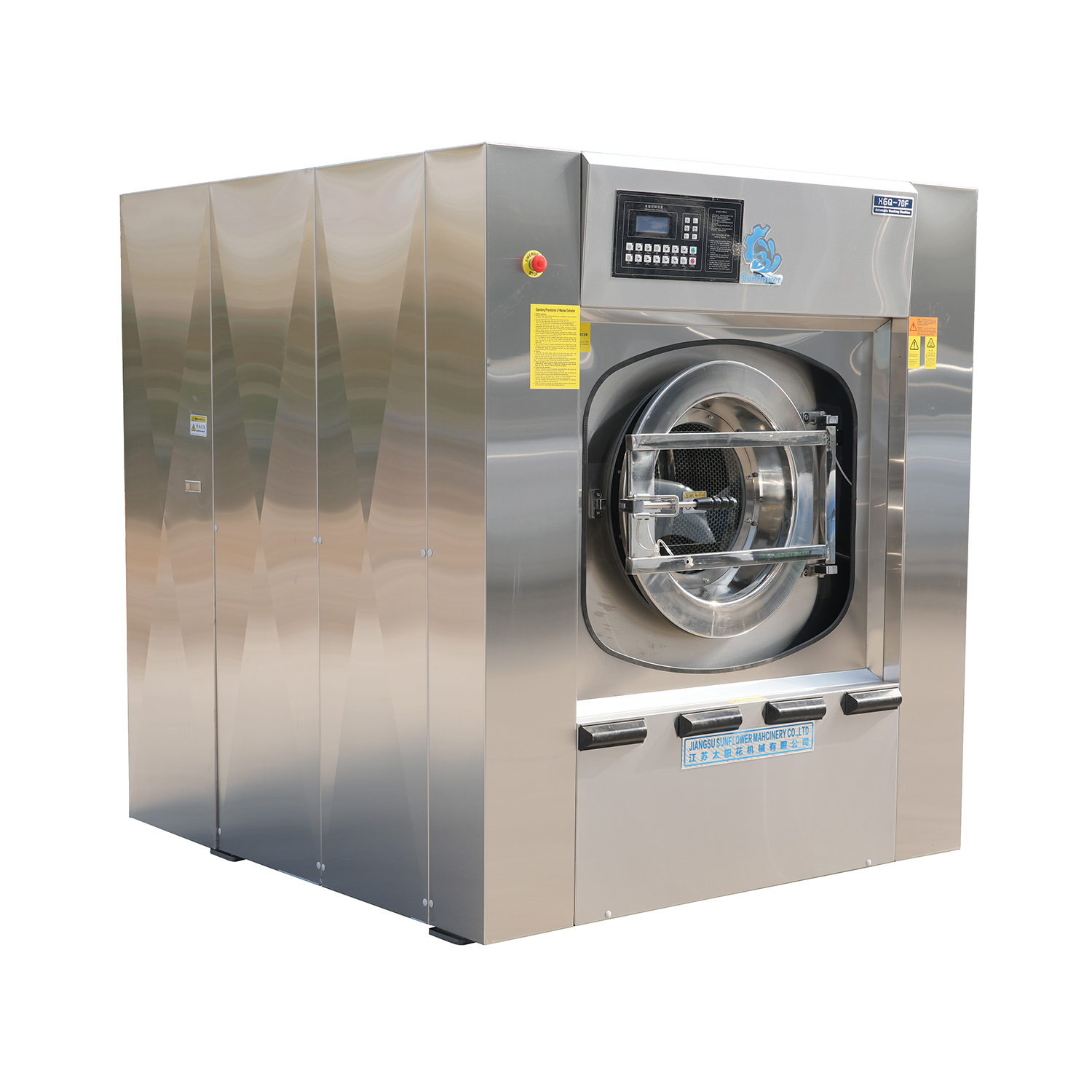

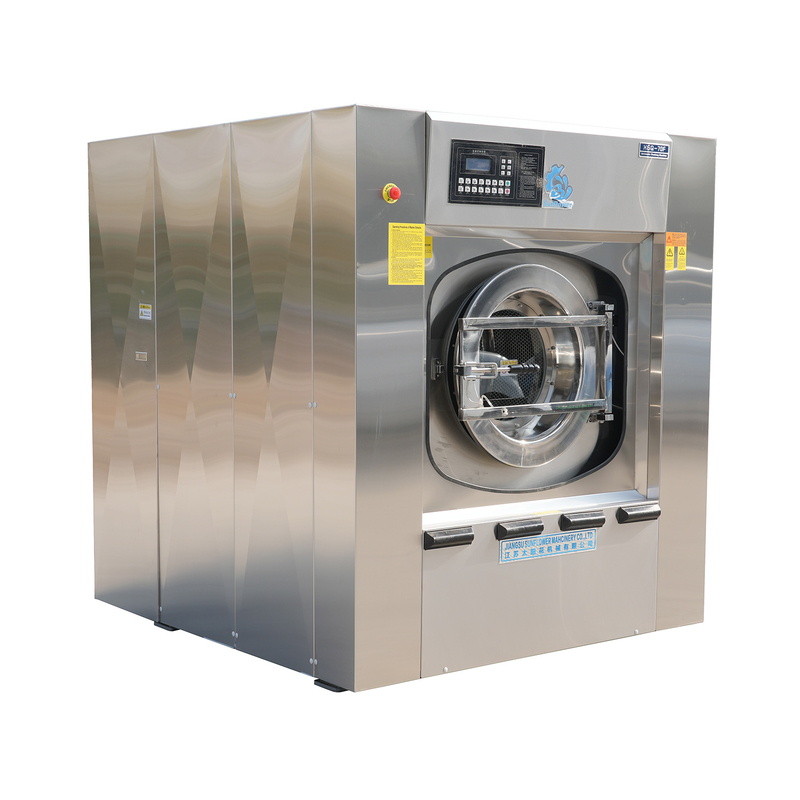

Hotel Washer 100kg

Quantity:
  • XGQ-100F
  • ISO&CE
  • 30sets/Month
  • China
  • Wooden Case
  • set
  • One Set
Introduction of this Hotel Washer Washer  is as follows

Drum stainless steel
Body stainless steel
LED display, Programmable operating panel, with manual over rides
Fully automatic
Front loaded
100kg Maximum capacity
Automatic balance
Soft mounted

Customers will appreciate the large LED display that leads the user through the washing process.

The new XGQ-F series washer-extractors are available in 15kg, 20kg, 25kg, 30kg, 50kg, 70kg, 100 kg and 120kg

The specification of 100kg washer extractor is as follows

Model XGQ-100F
Rated capacity(kg): 100kg
Drum capacity(L): 1000L
Motor power(kw): 7.5KW
Inventor power: 11kw
Washing rotation (rpm): 30rpm-35rpm
Dewatering rotation (rpm): 650rpm to 750rpm
Steam pressure (Mpa): 0.4-0.5
Overall dimensions(mm): 1600*1870*2000
Weight(kg): 3200
Our products are ISO9001 & CE certified.
Terms of payment: T/T/LC
Item  Unit XGQ-15F XGQ-20F XGQ-25F XGQ-30F XGQ-50F XGQ-70F XGQ-100F
CAPACITY  Load capacity Kg 15 20 25 30 50 70 100
  Drum dimension D*L Mm 380*650 700*500 800*500 90470 1080×600 1080*720mm 1200×840
  Cylinder dimension D*L Mm
Motor  Frequency controlled  Kw 1.5kw  2.2kw 3kw 3kw 4kw 5.5kw 7.5kw
  Electricity heating pipe  Kw 12 12 24 24 48 48 -------
  Power consumption
 per cycle
Kw 0.4kw(stm)
3.5kw(ele)
0.6kw(stm)
4kw(ele)
0.8kw(stm)
5kw(ele)
0.8kw(stm)
5kw(ele)
1kw (stm)

7kw(ele)
1.5kw 1.8kw
Drum  Wash speed  Rpm  45 45 40 40 30 30 30
  Balance speed  Rpm 75 75 75 60 60 60 60
  Medium/high spin speed  Rpm  500/950 500/950 420/850 420/850 420/750 420/700 420/650
  G-Factor-extract  G 308 308 312 312 316 321 321
  Stainless steel 304 ---- standard standard standard standard standard standard standard
Programmer  Full programmer operation panel  ---- standard standard standard standard standard standard standard
  Programs can remember Pc 15 15 30 30 30 30 30
Heating type  Steam  Standard  Standard Standard Standard Standard Standard Standard
  Electricity Standard Standard Standard Standard Standard N/A N/A
Water  Water inlet DN Mm 20 20 25 50 50 75 75
  Water pressure  Bar 2-4 2-4 2-4 2-4 2-4 2-4 2-4
  Water consumption Kg 300 350 400 500 750 1200 1800
Drain  Mm 50 50 80 80 80 140 140
Steam  Steam inlet (DN) Mm 15 15 20 20 25 25 25
  Steam pressure  Bar 4-6 4-6 4-6 4-6 4-6 4-6 4-6
  Steam consumption per cycle  K 8 10 20 30 35 40 50
Dimension
L*W*H
Mm 1100*970*1420  1130*1000*1420 1230*1260*1700 1350*1340*1700 1820*1500*1600 1850*1500*1720 1600*1870*2000
