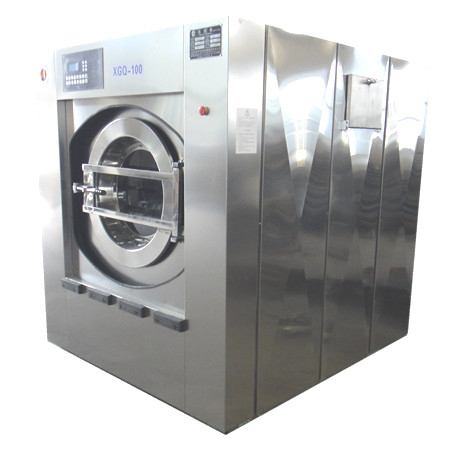

Commercial Washer 100kg

Quantity:
  • XGQ-100F
  • ISO&CE
  • 30sets/Month
  • China
  • Wooden Case
  • set
  • 1set
Brief introduction of this commercial washer is as follows

1 this machine has function of washing and extracting

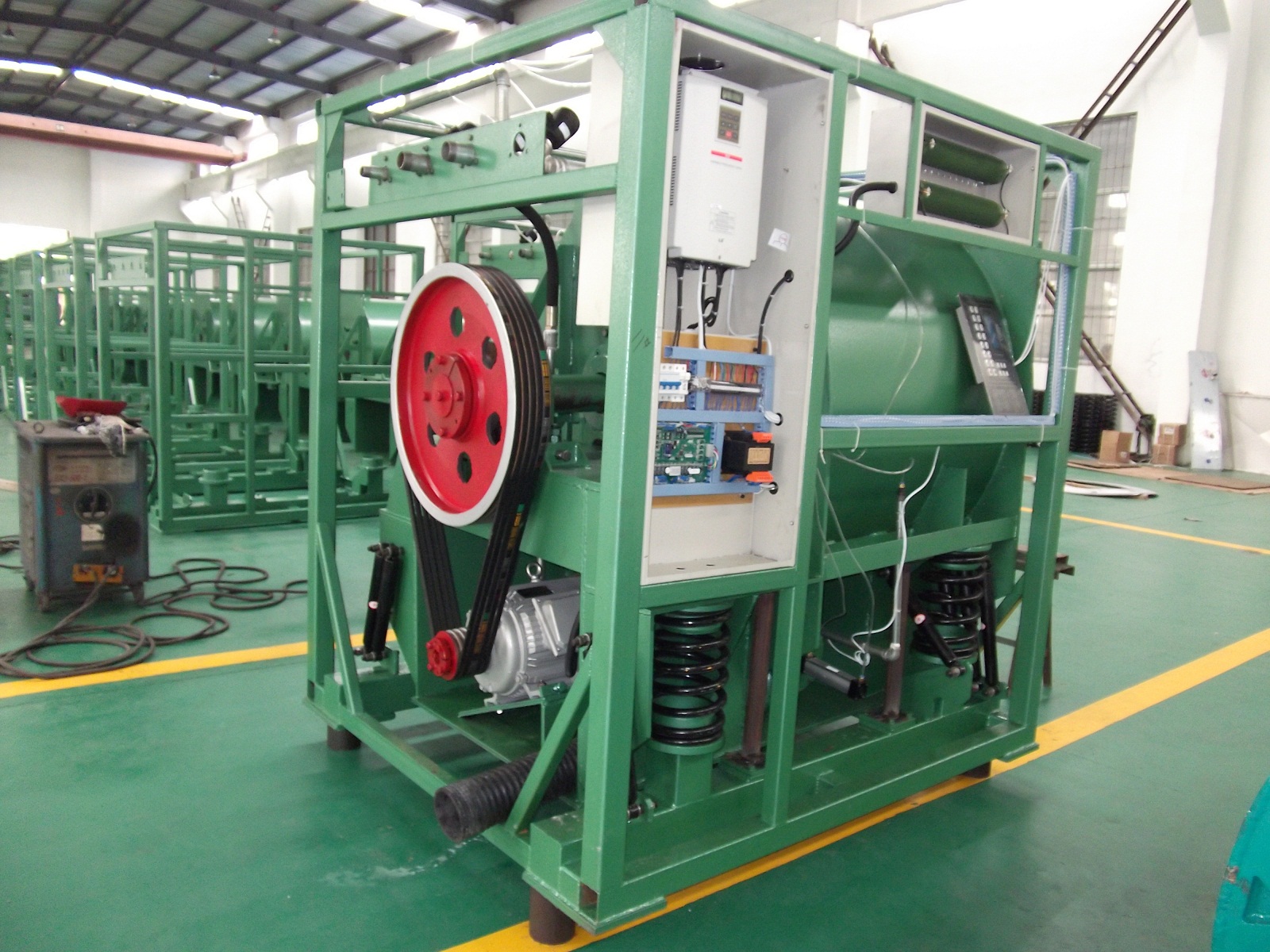

2 the shell and drums are all made of all stainless steel, the washing drum is connected to the outer drum by main bearing system, and the shock will be absorbed by special shock absorbing system while its high speed rotation

3 this machine has friendly programmable operating panel which contains more than 20 programs, this machine is totally automatic that the operator just need to press one button, the machine will finish adding water, washing, heating and water exhaust all by itself

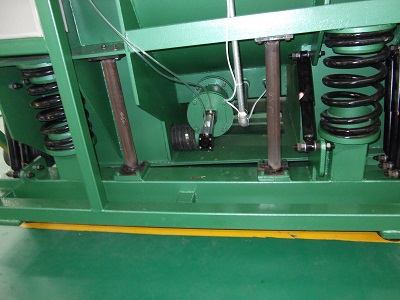

4 our machine has shock absorbing system which is made of damper and strong springs, which will efficiently reduce the shocking during washing, besides, we have install over shock switch on the frame of the machine, which will send signal to the machine to reduce the rotation, if the machine is over shocked for the reason of that the clothes are not well balanced.

5 LG invert which durable then brand Invert, and it will control the inverted motor to rate in different speed while washing and extracting. Besides, when the machine is braked. The invert will stop the machine together with the damper, will make it more efficient and make the machine last long time.

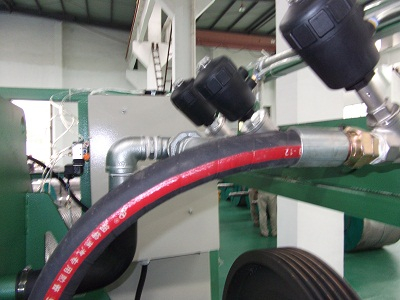

6 the whole system is made of Micro computer and air operated valve system, which will enlong the life of the whole machine, and the door lock system will ensure the safety of the operation

The specification of 100kg washer extractor is as follows

Model XGQ-100F
Rated capacity(kg): 100kg
Drum capacity(L): 1000L
Motor power(kw): 7.5KW
Inventor power: 11kw
Washing rotation (rpm): 30rpm-35rpm
Dewatering rotation (rpm): 650rpm to 750rpm
Steam pressure (Mpa): 0.4-0.5
Overall dimensions(mm): 1600*1870*2000
Weight(kg): 3200
Our products are ISO9001 & CE certified.
Terms of payment: T/T/LC
Model  XGQ-15F  XGQ-20F  XGQ-25 XGQ-30F XGQ-50F XGQ-70F  XGQ-100F
Rated capacity  15KG  20KG 25 30kg  50kg  70kg  100kg
Drum dimension  380*650 700*500 800*500 90470 1080×600 1080*720mm 1200×840
Motor power  1.5kw  2.2kw 3.7kw 3kw 4kw 5.5kw 7.5kw
Rotation  40rpm-800rpm  40rpm-800rpm 40rpm-800rpm 40rpm-800rpm 38rpm-720rpm 84rpm-650rpm 33rpm-650rpm
Inventor power  1.5kw  2.2 kw 4 kw 3 kw 4kw 5.5 11 kw
Electricity heating power  6 kw  12 kw 22 kw 24 kw 36 kw ---------   -------------
Water inlet  0.6  1 11/2” 11/2” 3/2’ 3/2’’ 11/2”
Steam inlet  0.6  1/2’ 3/4” 3/4” 1” 1’ 1”
Chemicals inlet  0.6  1/2” 1/2” 1/2” 1/2”   1/2”
Overall dimension  1100*970*1420  1130*1000*1420 1230*1260*1700 1350*1340*1700 1820*1500*1600 1850*1500*1720 1600*1870*2000
Weight  450kg  500kg 890kg 890kg 1500kg 2500kg  2800kg
