Barrier Washing Machine Hospital Virvus Infection Prevent Type Insolaed Washing Machine

5 0 Reviews

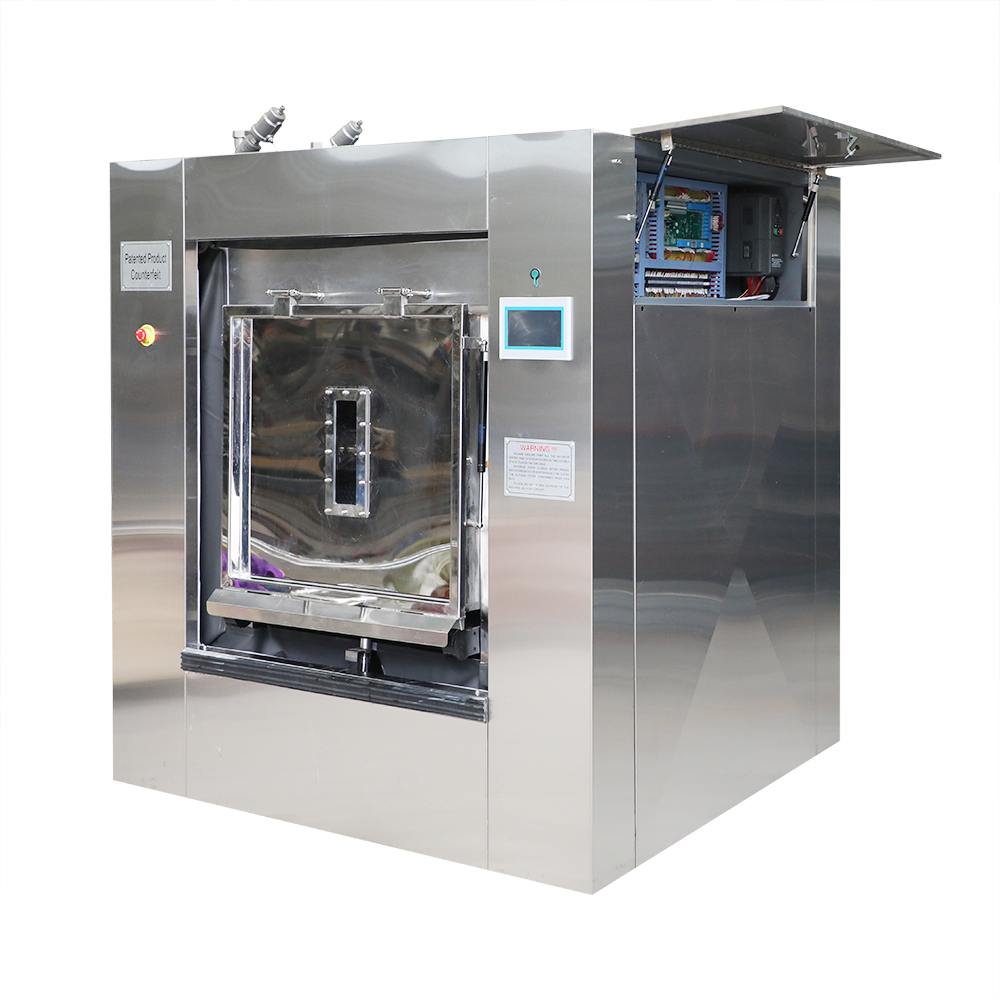

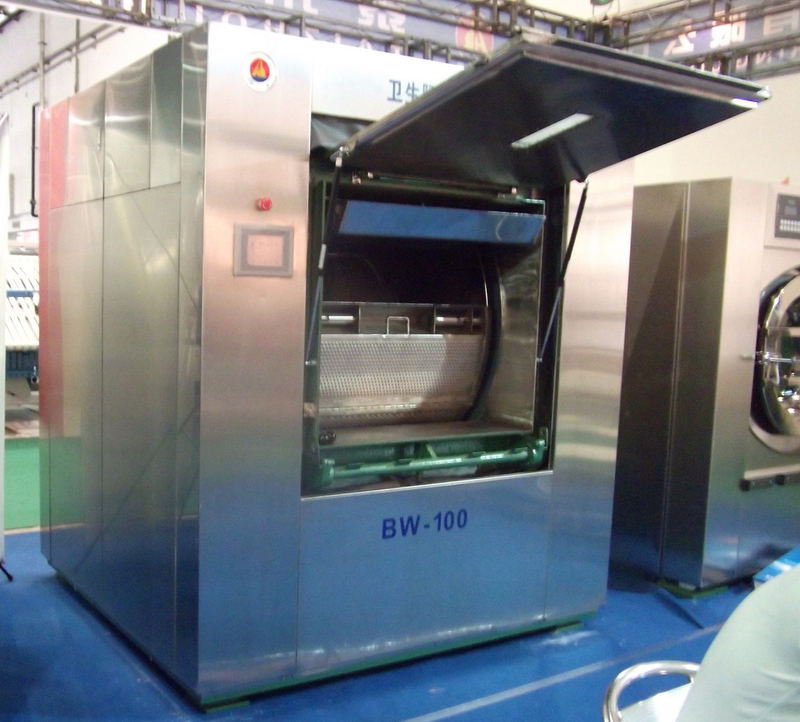

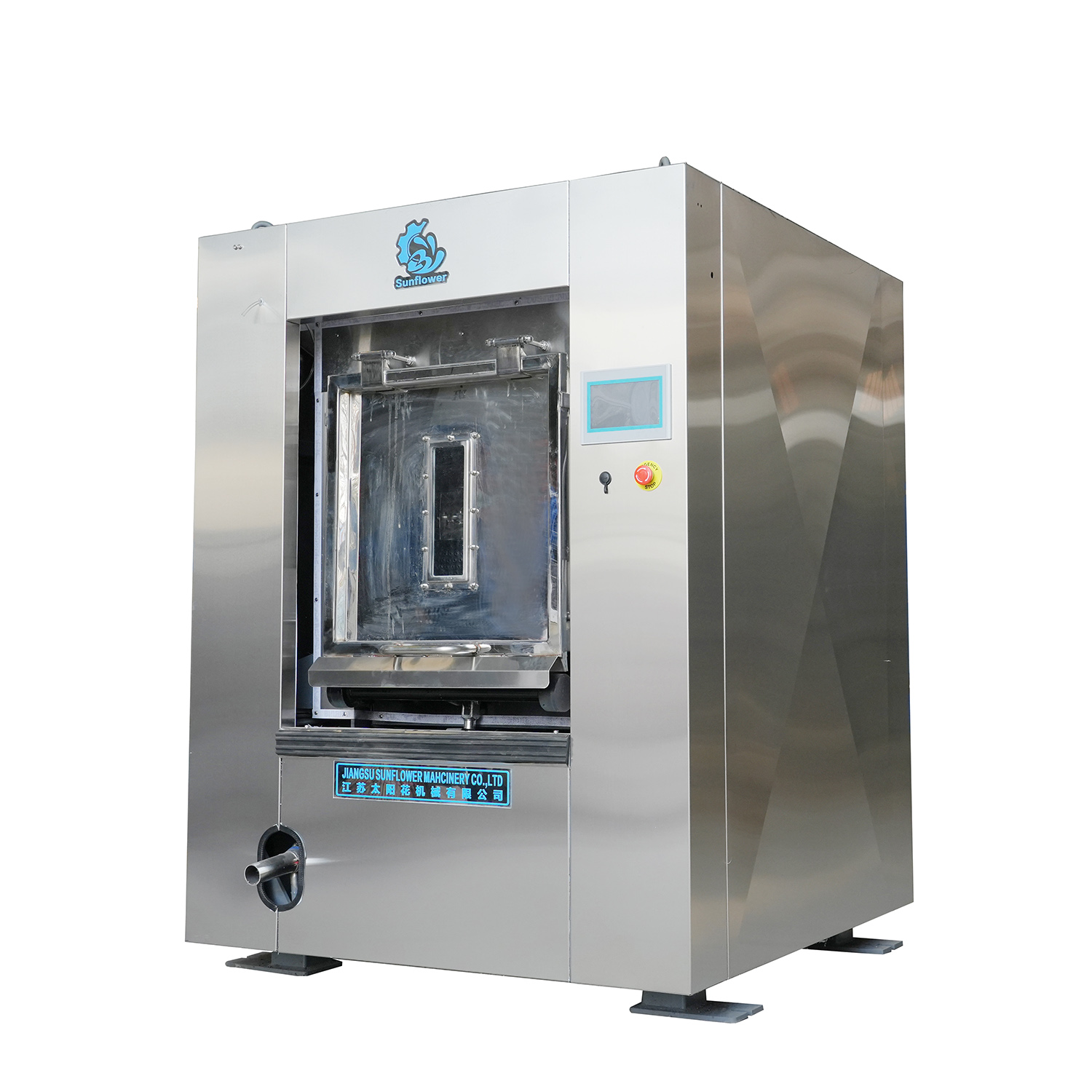

Barrier washer separates laundry room into two isolated zones , clean zone and unclean zone. The linen to be washed is loaded into the machine from unclean zone and the washed linen is unloaded from the clean zone so as to avoid cross contamination caused by one door in-out. It is an ideal washing equipment for hospital and hygienic laundries.
Pharmaceutial Factory Working Uniform Barrier Laundry Machine
Hygienic Washer Extractor
Hospital laundry washing machine
Hospital Laundry Machine
Patient Uniform Washing Machine
Medical Cleaning Washer Extractor Machine
Patient Uniform Washing Equipment
Static Electricity Prevent Washing Machine
Pharmaceutial Sanitary Isolated Barrier Washing Cleaner Equipment
Health Isolating Washing Machine
Barrier Washer Extractor Machine
Barrier Washing Machine
Hospital Virvus Infection Prevent Type Insolaed Washing Machine
Sanitary Hygeinic  Barrier Washing Machine
Barrier washer machine
Barrier washer extractor Machine
Barrier laundry machine
Pharmacy Laundry machines
Laundry machine price
Health Isolating Washing Machine
Availability:
Quantity:


Barrier washer separates laundry room into two isolated zones , clean zone and unclean zone. The linen to be washed is loaded into the machine from unclean zone and the washed linen is unloaded from the clean zone so as to avoid cross contamination caused by one door in-out. It is an ideal washing equipment for hospital and hygienic laundries.


Controller :

The large touch screen with Chinese (English) operation interface, which ensures the dialogue between operator and the machine more convenient and reliable.


Air bag anti-shock device (BW1000) :

Smooth running and minimum shock thanks to the heavy-duty design and air bag anti-shock device.


Auto-correction device in the door :

Auto-correction is controlled by the proximity switch so that the door can be positioned accurately at loading and unloading position.


Inner door lock :

Double-bolt locking system adopted. With self-lock and anti-lossen functions. Operation is safe and easy.

Description
BW-1000A
Inner drum ×lengthmm990*1280
Outer drum ×lengthmm1060*1440
Washing /balancing speedrpm40*65
Medium extracting speedrpm350
Motor powerkW11
Compressed air inlet diametermm8
Steam pressureMpa0.4-0.6
Water pressureMpa0.2-0.4
Compressed air pressureMpa0.5-0.6
Water consumption/ cyclekg1900
Electric consumption/cyclekW3.5
Steam consumption/cyclekg85
Dimension (L/W/H)mm2312*1480*2205
Weightkg3480



Model

BW20

BW30

BW50

BW100

Maximum  Capacity kg

20

30

50

100

Inner Drum D×L

 mm

Φ730×490

Φ900× 500

φ970×720

Φ 1200×890

Motor Power   kw

2.2

4

5.5

11

Washing Speed  rpm

35

35

35

32

Rotation  rpm

70

70

70

65

Extracting Rotation rpm

440

400

370

350

Fast Speed Rotation

rpm

920

800

750

750

Steam Inlet  mm

DN20

DN20

DN20

DN25

Water Inlet  mm

DN40

DN40

DN40

DN50

Drain  mm

Φ89

Φ89

Φ89

Φ 140

Water Pressure  Mpa

0.2-0.3

0.2-0.3

0.2-0.3

0.2-0.3

Steam Pressure  Mpa

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

Air compressor Mpa

0.4-0.5

0.4-0.56

0.4-0.5

0.4-0.5

Water Consumption  kg

300

450

700

1650

Steam Consumption  kg

15

25

45

50

Electricity Heating Power Kw

18

24

36

48

Overall Dimension

(Front Back) mm

1250 (1300)

1400 (1450)

1500 (1550)

1720 (1770)

Overall Dimension

(Left Right) mm

1360 (1440)

1370 (1450)

1640 (1720)

1810 (1890)

Overall Dimension

(Height) mm

1690 (1840)

1800 (1950)

1880 (2030)

2150 (2300)

Weight kg

800

1140

2000

3000

Power Supply V/Pn/Hz

380/3/50

380/3/50

380/3/50

380/3/50
