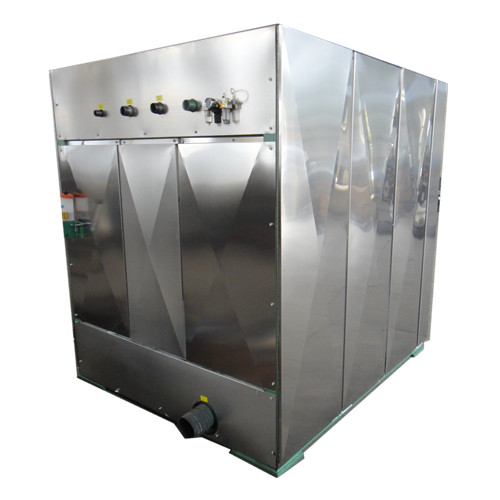

Automatic Washer Extractor 100kg

Quantity:
  • XGQ-100F
  • ISO9001
  • 50 Set/Month
  • China
  • Wooden Cases
  • set
  • 1set
Purpose of Washer Extractor


Washer Extractor is most ideal washing machine to do washing job of garments , towels ,bedsheet , bedcovers in dry cleaning shops , laundry shop , primise laundry center , hospital or  factory


Character of washer extractor

1. Adopt advanced computer control system. Chinese or English language display manual and automatic proggrams can be chosen. The whole process of prewashing. Washing. Ringing. Bleaching and extracting can be finished automatically.

2. Adop the international advanced suspension structure which with strong spring and hydraulic pressure to absord the shock drain at back place. Soft mounted installation

3. Continuum-style bearing housing structure. The high quality seal ring is installed at the outter of water liquid, advanced invert to ocntrol the speed. Has Advantage of energy saving and stable running.

4. High quality 304 stainless steel material is for anti-rust and long term service

5. With advance over shock and door lock protect structure

6. Big door for loading and unloading the materioal. Manual detergent supply or automatic dosing supply can be ordered to produce

Specification
Model XGQ-100F
Rated Capacity(kg): 100kg
Drum Capacity(L): 1000L
Motor Power(kw): 7.5KW
Inventor Power: 11kw
Washing Rotation (rpm): 30rpm-35rpm
Dewatering Rotation (rpm): 650rpm to 750rpm
Heating Type: Steam
Steam Pressure (Mpa): 0.4-0.5
Overall Dimensions(mm): 1600*1870*2000
Weight(kg): 3200

Washing Machine 02
     Washer Extractor 100kgs
Industrial Washing Machine 100kgs



Model  XGQ-30F XGQ-50F XGQ-70F  XGQ-100F
Rated capacity  30kg  50kg  70kg  100kg
Drum dimension  90470 1080×600 1080*720mm 1200×840
Motor power  3kw 4kw 5.5kw 7.5kw
Rotation  40rpm-800rpm 38rpm-720rpm 84rpm-650rpm 33rpm-650rpm
Inventor power  3 kw 4kw 5.5 11 kw
Electricity heating power  24 kw 36 kw ---------   -------------
Water inlet  11/2” 3/2’ 3/2’’ 11/2”
Steam inlet  3/4” 1” 1’ 1”
Chemicals inlet  1/2” 1/2”   1/2”
Overall dimension  1350*1340*1700 1820*1500*1600 1850*1500*1720 1600*1870*2000
Weight  890kg 1500kg 2500kg  2800kg
