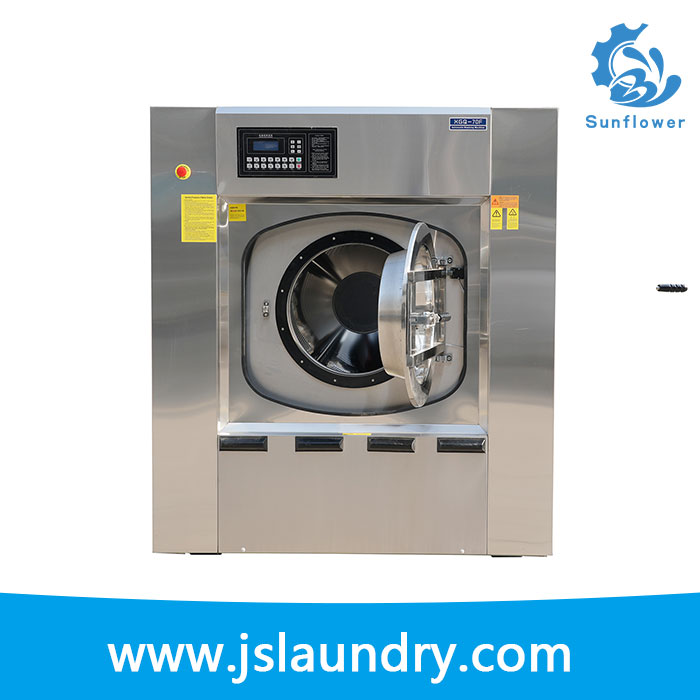

Washer Extractor 70kg

The automatic washing machine washer extractor is specially designed for hotels, hospitals, laundry rooms, and laundry factories, which integrates laundry and dehydration. The capacity of the machine is 15kg, 20kg, 30kg, 50kg, 70kg, 100kg
The machine has the following characteristics
1 Adopt suspension shock absorber structure, the shock absorption rate is more than 95%
2 Safety interlocks to ensure operator safety
3 stainless steel 304 laundry drum, stainless steel outer plate, to ensure the service life of the machine
4 Light touch computer board, large-screen LED display and friendly operating system ensure user-friendly operation
5 With automatic detection function, even if you know the usage status of the device
6 Equipped with advanced frequency conversion speed regulation system, frequency conversion motor, advanced structure, energy saving and power saving
7 Adopt back drainage, soft connection, no foundation, easy installation
8 Using high-quality components, safe and reliable
Price: $ 0
Availability:
Quantity:

General description:
Front loading, open pocket, electrically heated, high spin washer extractor. High
extraction force for efficient dewatering. Should have all necessary hoses and for
water supply and connections for waste discharge into an open channel.
Specifications:
1.      Inner and outer drum manufactured from grade 304 stainless steel. Inner drum
2.      to be fitted with 4 lifters and have countersunk, perforated holes of minimum
3.      diameter 5mm.
4.      Frame and body construction is painted and powder coated steel
5.      Soft mount suspension system incorporating springs and dampers.
6.      Large door opening for easy loading /unloading. Safety interlock on the door to
prevent opening if there is water in the drum or the drum is rotating.
7.      Prepared for both powder (five flushable compartments) and liquid detergent.
8.      Fully programmable microprocessor controlled with fault/error display functions.
9.      Frequency controlled motor eliminating the need for a gearbox.
10.  Minimum of two oil lubricated or sealed for life drum bearings in heavy duty
housing and sealed with a minimum of three oil /grease seals.
11.  During the spin cycle the out of balance shall be determined and the maximum
extraction speed adjusted accordingly or, in the event of out of balance being
too great, the machine must automatically re-distribute the load to effect
satisfactory balance.
12.  Maximum dry linen capacity 60 - 70kg.
13.  Drum volume 700Litres.
14.  Drum diameter about 1080 mm.
15.  Extraction rpm about 750
16.  Extraction force , G-factor 300G.
17.  Electric heating capacity 50
18.  Water inlet 32mm dia., drain 110mm dia.
19.  Emergency stop button.
20.  If the machine being offered requires compressed air, to operate the water
supply or drain valves, then a compressor must be supplied to the specification
outlined below.

model

XGQ-15F

XGQ-20F

XGQ-30F

XGQ-50F

XGQ-70F

XGQ-100F

Rated Capacity

15KG

20KG

30kg

50kg

70kg

100kg

Roller size

380*650

700*500

900×470

1080×600

1080*720mm

1200×840

Motor size

1.5kw

2.2kw

3kw

4kw

5.5kw

7.5kw

drum speed

40rpm-800rpm

40rpm-800rpm

40rpm-800rpm

38rpm-720rpm

84rpm-650rpm

33rpm-650rpm

Inverter power

1.5kw

2.2 kw

3 kw

4kw

5.5

11 kw

Electric heating power

6 kw

12 kw

24 kw

36 kw

48kw

 48kw

Inlet size

0.6

1’

11/2”

3/2’

3/2’’

11/2”

Inlet size

0.6

1/2’

3/4”

1”

1’

1”

feeding port

0.6

1/2”

1/2”

1/2”


1/2”

Overall size

1100*970*1420

1130*1000*1420

1350*1340*1700

1820*1500*1600

1850*1500*1720

1600*1870*2000


Machine Name

Washer Extractor

Model

XGQ -70F

Rated Capacity

70  kg

Motor Power

5.5kw

Extracting Speed

30rpm

Steam Pressure

0.4to 0.5 MPa

Overall Dimension

1.5mm * 1.6mm * 1720mm
