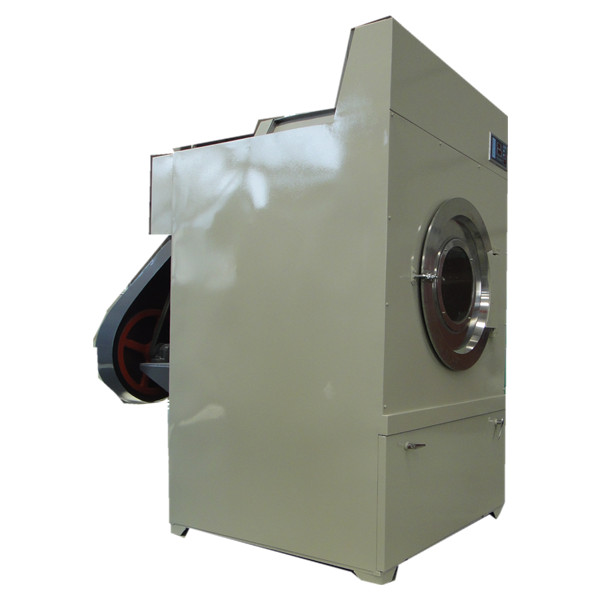

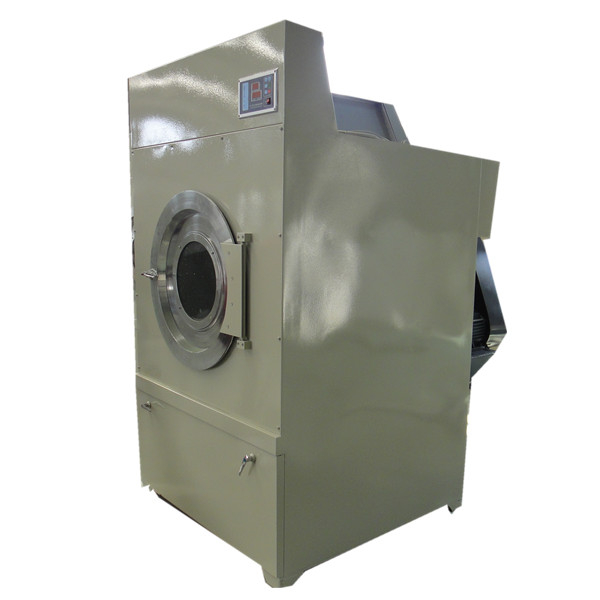

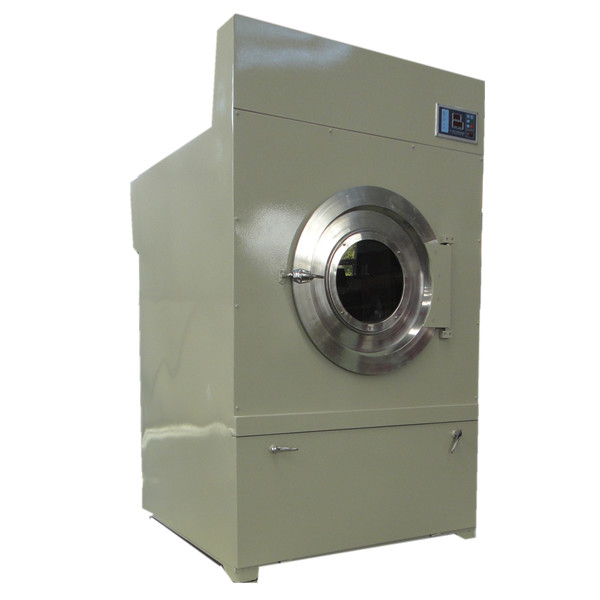

Tumbler Dryer 50kgs

Quantity:
  • HGQ50
  • HGQ50
  • 100 Sets/Month
  • china
  • Wooden Cases
  • set
  • one set
The machine's drum is made of stainless steel, and it is totally automatic
And also the machine has the facility of cooling that would be very safe for the opeartor.

The machine which capacity is range from 30 kgs to 100kgs are mainly for hotels, laundries and hospitals anf the machine which capacity is range from 100kgs to 150kgs is mainly for textile factory, leather factory if you are interested in our machine, please not hesitate to leave us a message and we will response to it in time.
Model HGQ50
Capacity 50kg
Drum dimension 1050mm*930mm
Drum speed 33rpm
Electronic heating 27kw
Steam heating 0.4 to 0.5Mpa
Motor power 1.5kw
Fan power 1.1kw
Overall dimension 1190mm*1670mm*2100mm
model   HGQ15 HGQ30    HGQ50   HGQ100   HGQ120   HGQ150
  capacity   15KG   30Kg   50Kg   100Kg   120kg   150kG
  drum   Φ 760mm*560mm   Φ 900mm*750mm   Φ 1050*930   Φ 1320*1055   Φ 1470*1055   Φ 1660*1150
  drum speed   33rpm   33rpm   33rpm   33rpm   33rpm   28rpm
  electronic heating   12.6kw   16.2kw   27   -----   ---   ---
  steam heating 0.4Mpa to 0.5Mpa   0.4Mpa to 0.5Mpa   0.4 t0 0.5 Mpa   0.4 to 0.5 Mpa   0.4to 0.5Mpa   0.4to 0.5MPa
  motor power   0.75kw 1.1kw   1.5kw   2.2kw   3kw   4kw
  fan power 0.75kw   1.1kw   1.1kw   1.5kw   1.5kw*2   1.5kw*2
  overall dimension 800mm*1020mm*1530mm 1000*140*1800   1190*1670*2100   1480*1840*2380   1660*1840*2470 1760*2000*2730
