Jiangsu Sunflower Machinery Co,.ltd

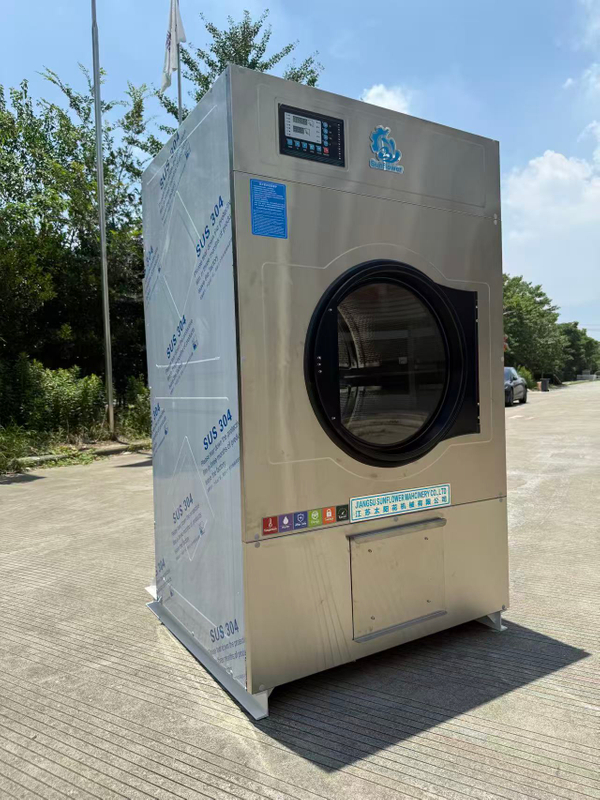

Tumble dryer is perfect machine for laundry shops, hospitals and hotels
To do drying job of bed covers, towels and soo on
This machine will work together with washer extractor or industrial washing machine
Character of 30kgs tumbler dryer is as follows
The drum is made from high-quality stainless steel to prolong working life
Big-size door is adopted for convenient fabric feeding and taking as well as transparent toughened glass is equipped for convenient view of fabric drying condition.
High-power horizontal type heater is adopted to guarantee safe and effective drying effect.
Self-cleaning lint filter is equipped to avoid lint jam.
Specification of 30kgs Tumbler Dryer
Model HGQ30
Capacity 30kgs
Drum Dimension Φ900mm*750mm
Drum Speed 33rpm
Electricity Heating Power 16.2kw
Motor Power 1.1kw
Fan Power 1.1kw
Overall Dimension 1000*1400*1800
Weight 600kgs
Terms of payment: T/T
Our products are ISO9001 and CE certified.
Tumble dryer is perfect machine for laundry shops, hospitals and hotels
To do drying job of bed covers, towels and soo on
This machine will work together with washer extractor or industrial washing machine
Character of 30kgs tumbler dryer is as follows
The drum is made from high-quality stainless steel to prolong working life
Big-size door is adopted for convenient fabric feeding and taking as well as transparent toughened glass is equipped for convenient view of fabric drying condition.
High-power horizontal type heater is adopted to guarantee safe and effective drying effect.
Self-cleaning lint filter is equipped to avoid lint jam.
Specification of 30kgs Tumbler Dryer
Model HGQ30
Capacity 30kgs
Drum Dimension Φ900mm*750mm
Drum Speed 33rpm
Electricity Heating Power 16.2kw
Motor Power 1.1kw
Fan Power 1.1kw
Overall Dimension 1000*1400*1800
Weight 600kgs
Terms of payment: T/T
Our products are ISO9001 and CE certified.
Model | HGQ15 | HGQ30 | HGQ50 | HGQ100 | HGQ120 | HGQ150 | HGQ200 |
Rated Capacity | 15kg | 30kg | 50kg | 100kg | 120kg | 150kg | 200kg |
Drum Dimension (mm) | Φ 760*560 | Φ 900*750 | Φ 1050*930 | Φ 1320*1055 | Φ 1470*1055 | Φ 1600*1150 | Φ 1300*2150 |
Drum Speed | 33r/min | 33r/min | 33r/min | 33r/min | 33r/min | 28r/min | 33r/min |
Electric Heating Power | 12.6kw | 16.2kw | 27kw | ---- | ----- | ------ | ----- |
Motor Power | 0.75kw | 1.1kw | 1.5kw | 2.2kw | 3kw | 4kw | 3kw |
Fan Power | 0.55kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw*2 | 1.5kw*2 | 2.2kw |
Overall Dimension (mm) | 850*1000*1720 | 1000*1400*1800 | 1190*1670*2100 | 1480*1840*2380 | 1660*1840*2470 | 1760*2000*2730 | 2650*1630*2720 |
overall weight | 250kg | 600kg | 800kg | 980kg | 1100kg | 1300kg | 1300kg |
Model | HGQ15 | HGQ30 | HGQ50 | HGQ100 | HGQ120 | HGQ150 | HGQ200 |
Rated Capacity | 15kg | 30kg | 50kg | 100kg | 120kg | 150kg | 200kg |
Drum Dimension (mm) | Φ 760*560 | Φ 900*750 | Φ 1050*930 | Φ 1320*1055 | Φ 1470*1055 | Φ 1600*1150 | Φ 1300*2150 |
Drum Speed | 33r/min | 33r/min | 33r/min | 33r/min | 33r/min | 28r/min | 33r/min |
Electric Heating Power | 12.6kw | 16.2kw | 27kw | ---- | ----- | ------ | ----- |
Motor Power | 0.75kw | 1.1kw | 1.5kw | 2.2kw | 3kw | 4kw | 3kw |
Fan Power | 0.55kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw*2 | 1.5kw*2 | 2.2kw |
Overall Dimension (mm) | 850*1000*1720 | 1000*1400*1800 | 1190*1670*2100 | 1480*1840*2380 | 1660*1840*2470 | 1760*2000*2730 | 2650*1630*2720 |
overall weight | 250kg | 600kg | 800kg | 980kg | 1100kg | 1300kg | 1300kg |
Industrial drying machine is a kind of equipment that is dried by hot air, which can dry wool, cotton clothes, bed sheets and quilt covers
1. It adopts computer automatic control, and can configure different drying temperature and drying time according to drying requirements to realize automatic drying.
2 The inner drum is made of bright stainless steel with excellent heat resistance, the inner wall is smooth, and the wear of clothes is reduced
3 Equipped with a high-efficiency radiator and a reasonable air duct, so that the hot air directly contacts the clothes, which greatly improves the drying efficiency and saves energy.
4 There are various models such as external steam radiator or electric heating radiator, or natural gas radiator to choose from
