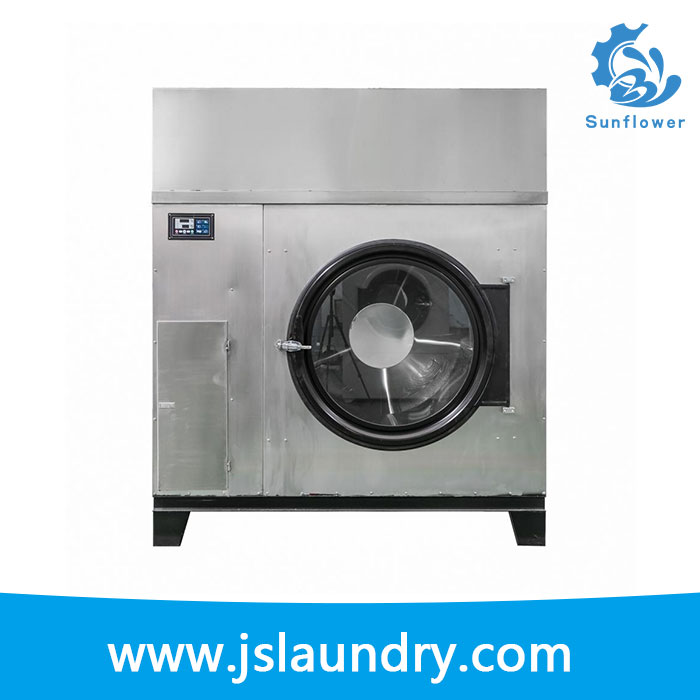

Tumbler Dryer 120kg

Price: $ 0

Breif of 100kgs Tumbler Dryer Machine
Character of this Tumbler dryer
Heated Painting make this machine last longer time
Is able to dry  two loads in one hour
microprocessor controlled with fully programmable control unit and selectable temperatures
and time controls and a digital read out
Large door 180 Centigrade open ,it is easy for operator to load and unload
With two hot air driven fan at the bottom of machine ,make sure hot air go through the tumbler dryer
from top to the bottom

The specification of 120kg tumbler dryer is as follows.

Model HGQ120
Capacity 120kg
Drum dimension diameter 1470mm*950mm
Rotation 33rpm
Steam pressure 0.944 to 0.588Mpa
Motor power 3kw
Fan power 1.5kw *2
Overall dimension 1640mm*1780mm*2280mm
Weight 980kg
If you want more infornation of this machine, please send us inquiry.

Detailed Description is as follows :

Tumbler dryer is perfect machine to do drying job of the towels, bed covers and so on for laundry shops, hospitals and hotels.

This machine will work together with washer extractor or industrial washing machine to make the fabric 100% dried by hot air.

The drum is made from high-quality stainless steel, we can also make the machines covered by all stainless steel.

Tumble dryer's outter cover painting is polished and heated, that makes the machine looks much perfect

Can be heated by electricity or steam that 15kg 30kg 50kg dryer can heated by either steam or electricity, but the dryer 100kg can only be heated by steam

Big-size door is adopted for convenient fabric feeding and taking as well as transparent toughened glass is equipped for convenient view of fabric drying condition.


 HGQ15  HGQ30  HGQ50  HGQ100 HGQ120  HGQ150   HGQ200
 Rated Capacity  15kg  30kg  50kg  100kg  120kg  150kg  200kg
 Drum Dimension
 Φ760*560  Φ900*750  Φ1050*930  Φ1320*1055  Φ1470*1055  Φ1600*1150  Φ1300*2150
 Drum Speed (rpm )  33r/min  33r/min  33r/min  33r/min  33r/min  28r/min  33r/min
 Electric Heating Power  12.6kw  16.2kw  27kw  ----  -----  ------  -----
 Motor Power  0.75kw  1.1kw  1.5kw  2.2kw  3kw  4kw  3kw
 Fan power  0.75kw  1.1kw  1.1kw  1.5kw  1.5kw*2  1.5kw*2  2.2kw
 Overall Dimension
800*1020*1530 1000*1400*1800 1190*1670*2100 1480*1840*2380 1660*1840*2470 1760*2000*2730 2650*1630*2720
 Overall Weight  250kg  600kg  800kg  980kg  1100kg  1300kg  1300kg
