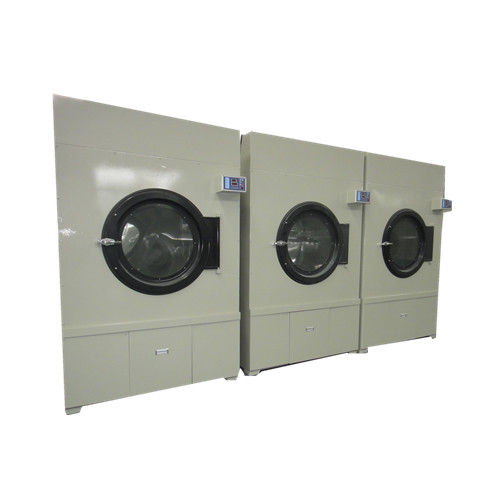

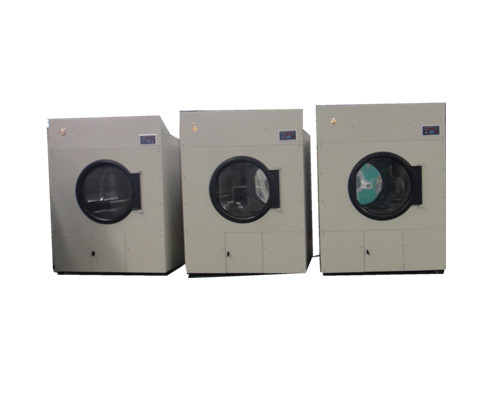

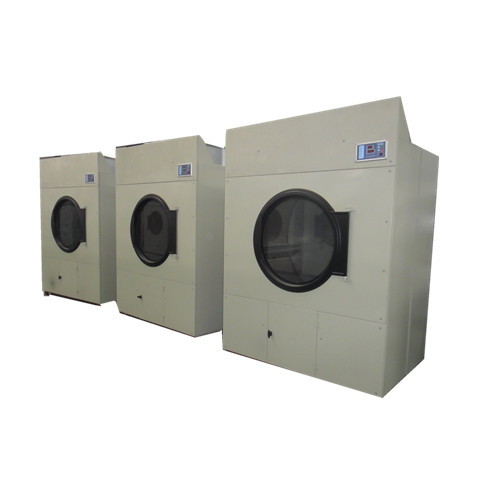

Tumble Dryer 120kg

  • HGQ120
  • HGQ120
  • 100sets /Month
  • China
  • Wooden Case
  • SET
  • 100sets/month
  • 1SET
  • 20days
  • 1
  • T/T
Tumble dryer is perfect machine for laundry shops, hospitals and hotels
This machine will work together with washer extractor or industrial washing machine
Tumble dryer 's drum is made from high-quality stainless steel to prolong working life

Tumble dryer's outter panel painting is polished and heated, the whole set machine looks elegant and classic

Big-size door is adopted for convenient fabric feeding and taking as well as transparent toughened glass is equipped for convenient view of fabric drying condition.
High-power heater is adopted to guarantee safe and effective drying effect.
Self-cleaning lint filter is equipped to avoid lint jam.

Our products are ISO9001 and CE certified.

Model: HGQ120
Capacity: 120kg
Drum dimension: Diameter 1470mm*1160mm
Rotation spped: 33rpm
Steam pressure: 0.4Mpa to 0.5Mpa
Motor power: 3 kw
Fan power: 1.5kw*2
Overall dimension: 1640mm*1780mm*2280mm
Drying washed & extracted fabric such as cotton, wool, hemp, silk, chemical fiber, etc; It is suitable for hotels, hospitals, organizations, laundries etc.

Terms of payment: T/T
  model   HGQ15   HGQ30   HGQ50   HGQ100 HGQ120  HGQ150    HGQ200
  rated capacity   15kg   30kg   50kg   100kg   120kg   150kg   200kg
  drum dimension
  Φ 760*560   Φ 900*750   Φ 1050*930   Φ 1320*1055   Φ 1470*1055   Φ 1600*1150   Φ 1300*2150
  drum speed   33r/min   33r/min   33r/min   33r/min   33r/min   28r/min   33r/min
  electric heating power   12.6kw   16.2kw   27kw   ----   -----   ------   -----
  motor power   0.75kw   1.1kw   1.5kw   2.2kw   3kw   4kw   3kw
  fan power   0.75kw   1.1kw   1.1kw   1.5kw   1.5kw*2   1.5kw*2   2.2kw
  overall dimension
  800*1020*1530   1000*1400*1800   1190*1670*2100   1480*1840*2380   1660*1840*2470   1760*2000*2730   2650*1630*2720
  overall weight   250kg   600kg   800kg   980kg   1100kg   1300kg   1300kg
