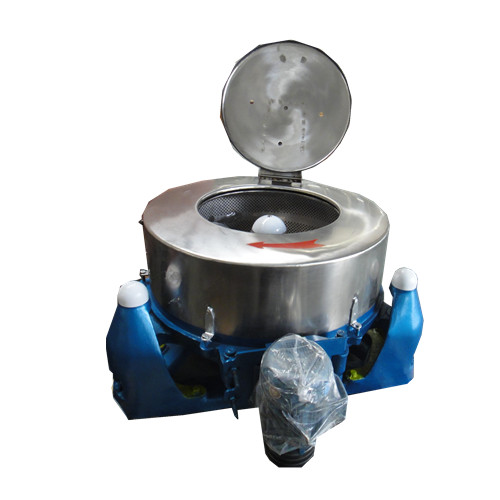

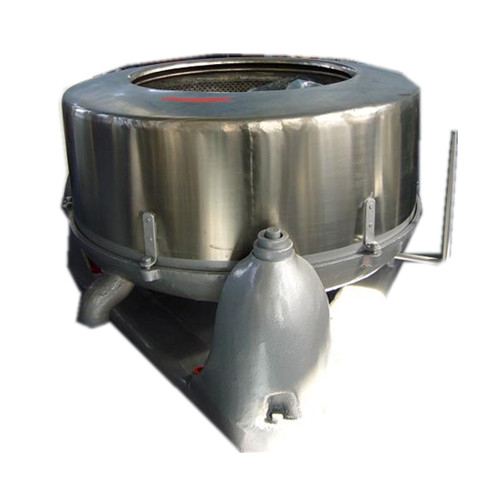

Spinning Dryer 210kg

Quantity:
  • TL1200
  • ISO9001&CE
  • haifeng
  • 100 Sets Every Two Monthes
  • China
  • Wooden Case
  • set
  • 1000stes/month
  • 1set
  • 10days after recieve the documents
  • 1
  • T/T
Product Description
Hydro extractor, spin dryer, laundry dryer, dewatering machine, spinning machine, centrifuging machine
This hydro extractor isto do water extracting job after the fabric is washed

Features:

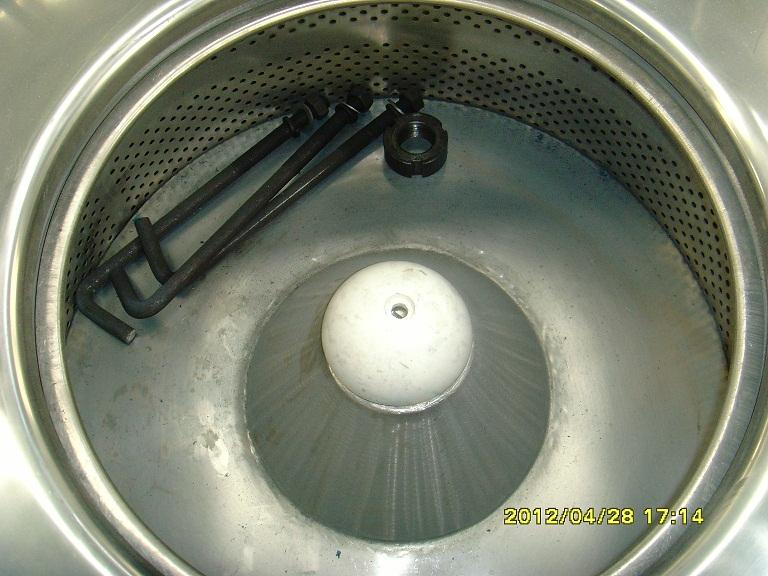

The drum of this machine is made of stainless steel
Independent three legs suspended instruction can avoid shock caused by unbalanced loaded.
The extracting speed of this machine is from 950 rpm to 750rpm
The capacity of this spinning machine is 210kg, and it will make the material inside dried by its high Centrifugal speed
The capacity of this hydro extractor series can be 40kg 60kg 90kg 120kg 210kg
Equipped with special brake arms which is durable and reliable make the machine more safe.
The motor will start with slow speed and reach supposed speed gradually, the drum will be driven by triangle rubber belt, running smooth and synchronous.

The specification of this machine is as follows

Model TL1200
Capacity 210kg
Motor power 7.5kw
Drum dimension Φ 1200mm
Overall dimension Φ 2550*1400
Weight 1800kg

Our products are approved CE and ISO9001 certified.
Terms of payment: T/T or LC
Technical Data Sheet
model   motor power drum dimension overall  dimension(mm) weight   (KG)
TL500 (50kg)   1.5KW   Φ 500   Φ 950*600   300
TL600 (60kg )   2.2KW   Φ 600   Φ 1220*700   500
TL800 (90kg)   4KW   Φ 800   Φ 1720*840   800
TL1000(120kg)   5.5KW   Φ 1000   Φ 1830*840   1400
TL1200 (210kg)   7.5KW   Φ 1200   Φ 2100*1050   1800
TL1500(350kg)   8KW   Φ 1500   Φ 2550*1400   2100
TL1800(650kg)   12KW   Φ 1800   Φ 2700*1560   2300
  we can also design cap on the top of the dehydrated machine   we can design  steel covers on this machines
