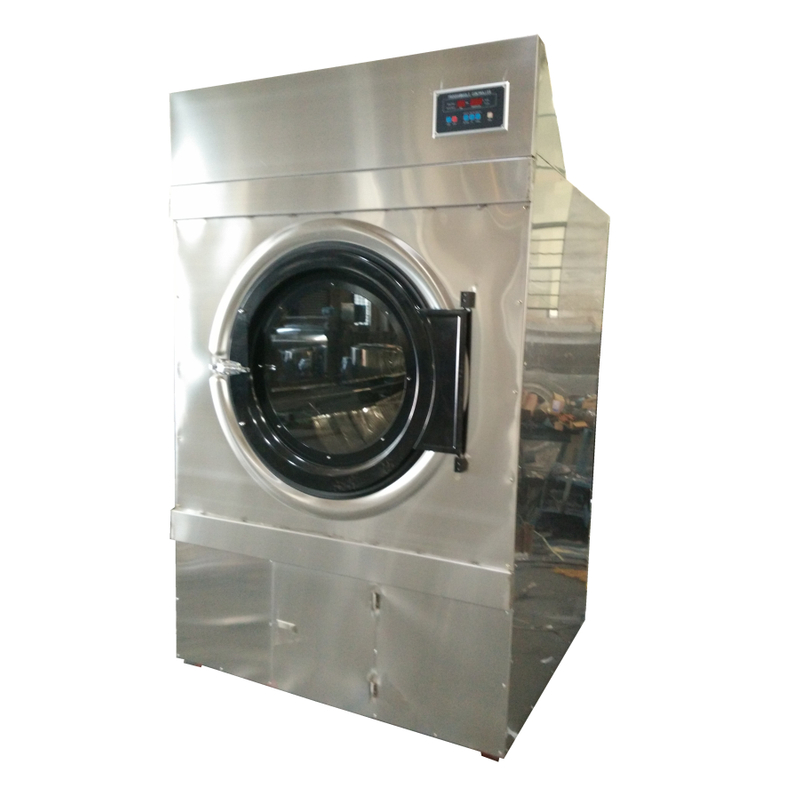

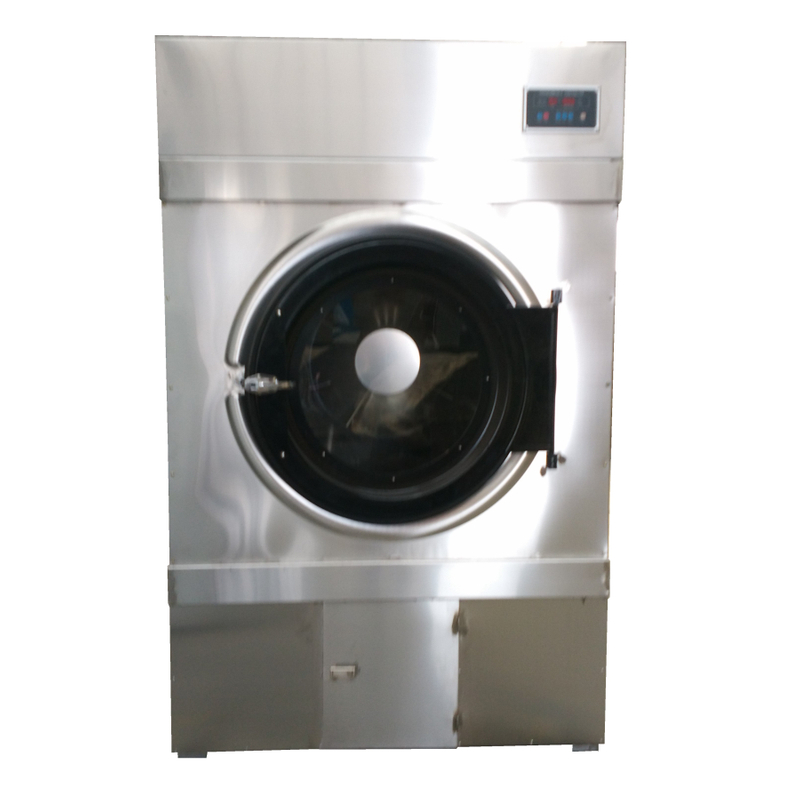

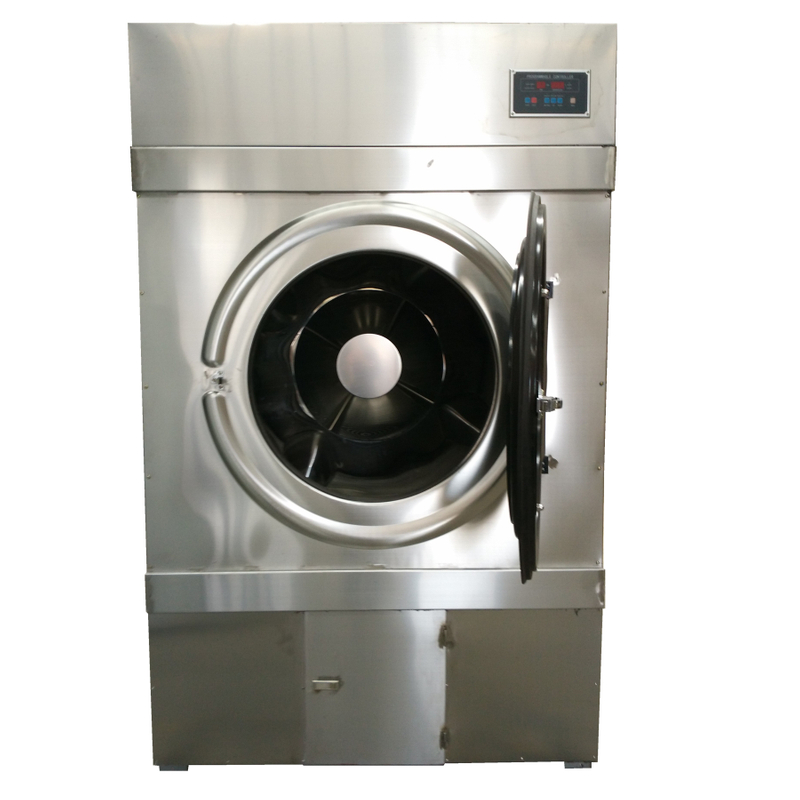

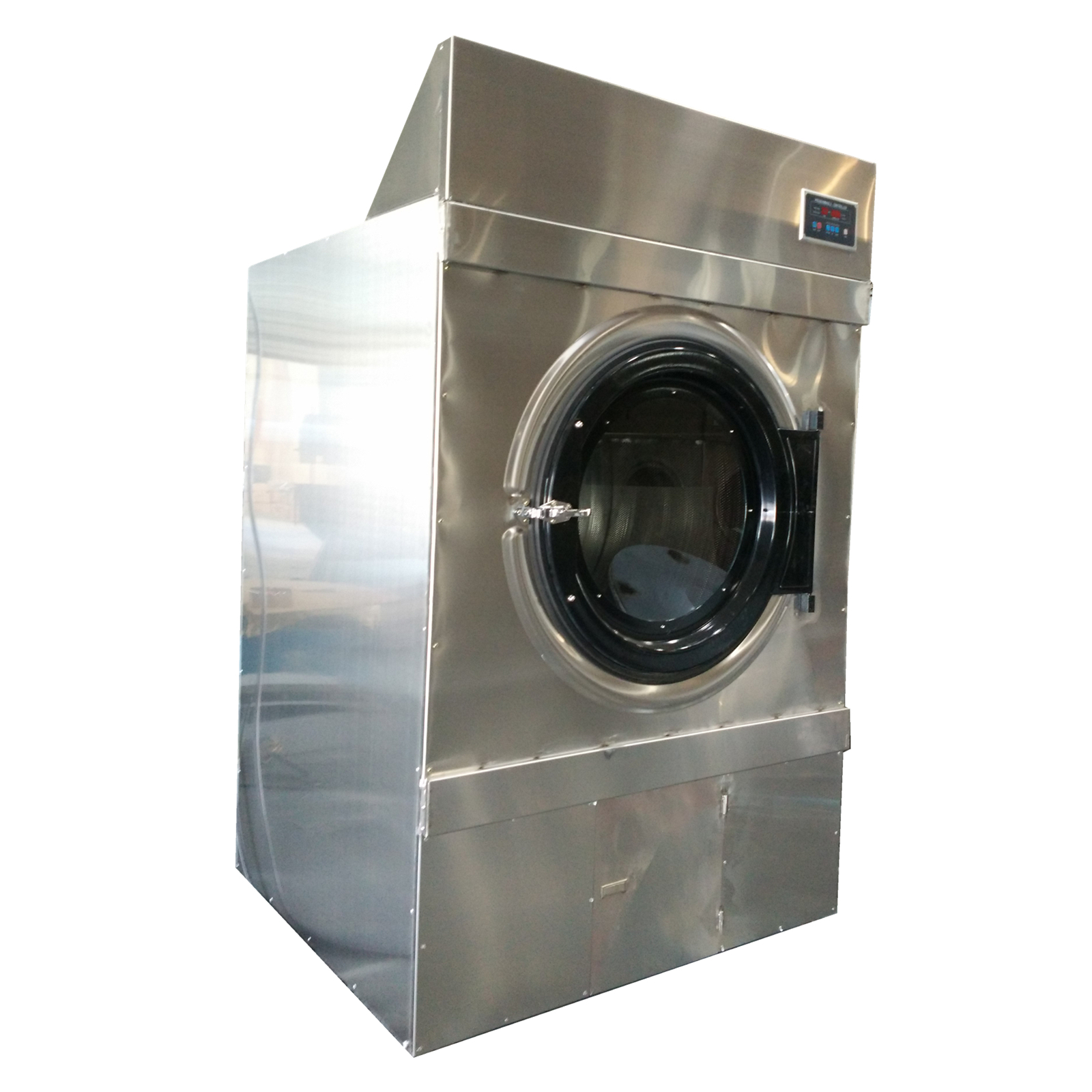

LPG /Natural Tumble Dryer 12KG

Quantity:
  • HG12
  • ISO9001
  • 100 Sets/Month
  • China
  • Wooden Cases
  • SET
  • 1SET
This dryer is heated by gas, but its burner is able to deal with natural gas, LPG too
The advantage of this machine is that it has efficiecy drying speed, and it saves energy, besides this machine has no polution to the environment
This machine only needs 2 to 5 minute to dry the bathrobe, and need only 10 to 15 to dry the table covers, and need 15 minutes to 20 minutes to dry the towels. It only consumpe about 300g to 400g gas every cycle. This machines are very economic to use
The specification of the machine is as follows

Model HG12
Drum rotation 40rpm
Motor power 0.55kw
Fan power 0.12kw
Heated power 7.6kw
Gas pressure 0.3 to 0.4 Mpa
Power 220V
Gas consumption 300g
Drying time 10 minute
Over all dimension 850mm*760mm*1720mm
Weight 200kg
  model HG12  HG15  HG35  HG50  HG70    HG100
  drum rotation speed(rpm)   40   40   35   35   32   32
  motor power (kw)   0.55   0.55   0.75   0.75   1.1   1.5
  fan power (kw)   0.12 0.37   0.75   0.75   1.1   1.1
  heating power (kw)   7.6 14   20   24   32   40
  gas pressure (Mpa)   0.3 to 0.4 0.3 to 0.4   0.4to 0.5   0.4to 0.5   0.4 to 0.5   0.4 TO 0.6
  power (v)   220 380   380   380   380   380
  gas consumption(kg)   0.3   0.4   0.4 to 0.6   1.2 to 1.6   1.8 to 2.3   2.5
  drying time (minute)   10 12   15 to 25   20 to 30   25 to 35   40
overall dimension (mm)(L*W*H) 850*760*1720 850*1000*1720 1500*1060*1950 1500*1310*2200   1600*140*2200   1800*1720*2450
weight (kg) 200 250 500 600   800   1000
