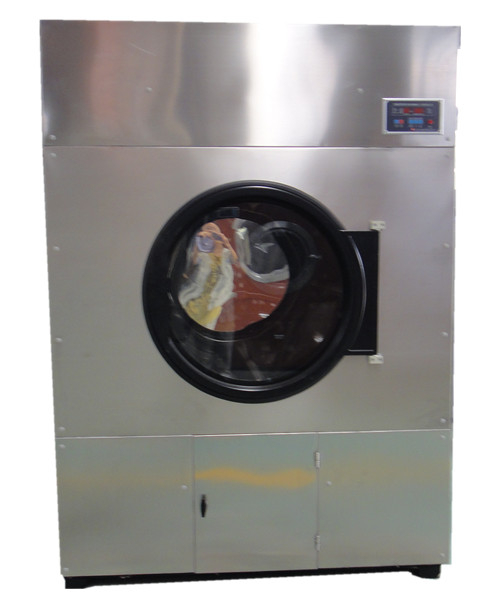

Commercial dryer, Steam dryer, Tumble dryer, industrial drying machine, is perfect machine for laundry shops, hospitals and hotels to do drying job of the fabric
This machine works together with washer extractor or industrial washing machine to to drying job of textile fabric
The drum is made from high-quality stainless steel to make the machines much more durabe, we can also make the machines covered by all stainless steel.
Can be heated by electricity or steam.
Big-size door is adopted for convenient fabric feeding and taking as well as transparent toughened glass is equipped for convenient view of fabric drying condition.
High-power heater is adopted to guarantee safe and effective drying effect.
The capacity of the machine could be 15kg 30kg 50kg 100kg 120kg or 120kg (japaness type) 150kg and 200kg
Purpose:
Drying washed & extracted fabric such as cotton, wool, hemp, silk, chemical fiber, etc; It is suitable for hotels, hospitals, organizations, laundries etc.
Terms of payment: T/T
Our products are ISO9001 and CE certified.
The specification of 100kg tumbler dryer is as follows
Model HGQ100
Capacity 100kg
Drum dimension diameter 1320mm*1055
Rotation 33rpm
Steam pressure 0.944 to 0.588Mpa
Motor power 2.2kw
Fan power 1.5kw
Overall dimension 1480mm*1840mm*2380mm
Weight 980kg
If you are interested in our machines, please not hesitate to contact us.
Commercial dryer, Steam dryer, Tumble dryer, industrial drying machine, is perfect machine for laundry shops, hospitals and hotels to do drying job of the fabric
This machine works together with washer extractor or industrial washing machine to to drying job of textile fabric
The drum is made from high-quality stainless steel to make the machines much more durabe, we can also make the machines covered by all stainless steel.
Can be heated by electricity or steam.
Big-size door is adopted for convenient fabric feeding and taking as well as transparent toughened glass is equipped for convenient view of fabric drying condition.
High-power heater is adopted to guarantee safe and effective drying effect.
The capacity of the machine could be 15kg 30kg 50kg 100kg 120kg or 120kg (japaness type) 150kg and 200kg
Purpose:
Drying washed & extracted fabric such as cotton, wool, hemp, silk, chemical fiber, etc; It is suitable for hotels, hospitals, organizations, laundries etc.
Terms of payment: T/T
Our products are ISO9001 and CE certified.
The specification of 100kg tumbler dryer is as follows
Model HGQ100
Capacity 100kg
Drum dimension diameter 1320mm*1055
Rotation 33rpm
Steam pressure 0.944 to 0.588Mpa
Motor power 2.2kw
Fan power 1.5kw
Overall dimension 1480mm*1840mm*2380mm
Weight 980kg
If you are interested in our machines, please not hesitate to contact us.
model | HGQ15 | HGQ30 | HGQ50 | HGQ100 | HGQ120 | HGQ150 | HGQ200 |
rated capacity | 15kg | 30kg | 50kg | 100kg | 120kg | 150kg | 200kg |
drum dimension (mm) | Φ 760*560 | Φ 900*750 | Φ 1050*930 | Φ 1320*1055 | Φ 1470*1055 | Φ 1600*1150 | Φ 1300*2150 |
drum speed | 33r/min | 33r/min | 33r/min | 33r/min | 33r/min | 28r/min | 33r/min |
electric heating power | 12.6kw | 16.2kw | 27kw | ---- | ----- | ------ | ----- |
motor power | 0.75kw | 1.1kw | 1.5kw | 2.2kw | 3kw | 4kw | 3kw |
fan power | 0.75kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw*2 | 1.5kw*2 | 2.2kw |
overall dimension (mm) | 800*1020*1530 | 1000*1400*1800 | 1190*1670*2100 | 1480*1840*2380 | 1660*1840*2470 | 1760*2000*2730 | 2650*1630*2720 |
overall weight | 250kg | 600kg | 800kg | 980kg | 1100kg | 1300kg | 1300kg |
model | HGQ15 | HGQ30 | HGQ50 | HGQ100 | HGQ120 | HGQ150 | HGQ200 |
rated capacity | 15kg | 30kg | 50kg | 100kg | 120kg | 150kg | 200kg |
drum dimension (mm) | Φ 760*560 | Φ 900*750 | Φ 1050*930 | Φ 1320*1055 | Φ 1470*1055 | Φ 1600*1150 | Φ 1300*2150 |
drum speed | 33r/min | 33r/min | 33r/min | 33r/min | 33r/min | 28r/min | 33r/min |
electric heating power | 12.6kw | 16.2kw | 27kw | ---- | ----- | ------ | ----- |
motor power | 0.75kw | 1.1kw | 1.5kw | 2.2kw | 3kw | 4kw | 3kw |
fan power | 0.75kw | 1.1kw | 1.1kw | 1.5kw | 1.5kw*2 | 1.5kw*2 | 2.2kw |
overall dimension (mm) | 800*1020*1530 | 1000*1400*1800 | 1190*1670*2100 | 1480*1840*2380 | 1660*1840*2470 | 1760*2000*2730 | 2650*1630*2720 |
overall weight | 250kg | 600kg | 800kg | 980kg | 1100kg | 1300kg | 1300kg |
Industrial drying machine is a kind of equipment that is dried by hot air, which can dry wool, cotton clothes, bed sheets and quilt covers
1. It adopts computer automatic control, and can configure different drying temperature and drying time according to drying requirements to realize automatic drying.
2 The inner drum is made of bright stainless steel with excellent heat resistance, the inner wall is smooth, and the wear of clothes is reduced
3 Equipped with a high-efficiency radiator and a reasonable air duct, so that the hot air directly contacts the clothes, which greatly improves the drying efficiency and saves energy.
4 There are various models such as external steam radiator or electric heating radiator, or natural gas radiator to choose from
