Jiangsu Sunflower Machinery Co,.ltd
| Availability: | |
|---|---|
| Quantity: | |

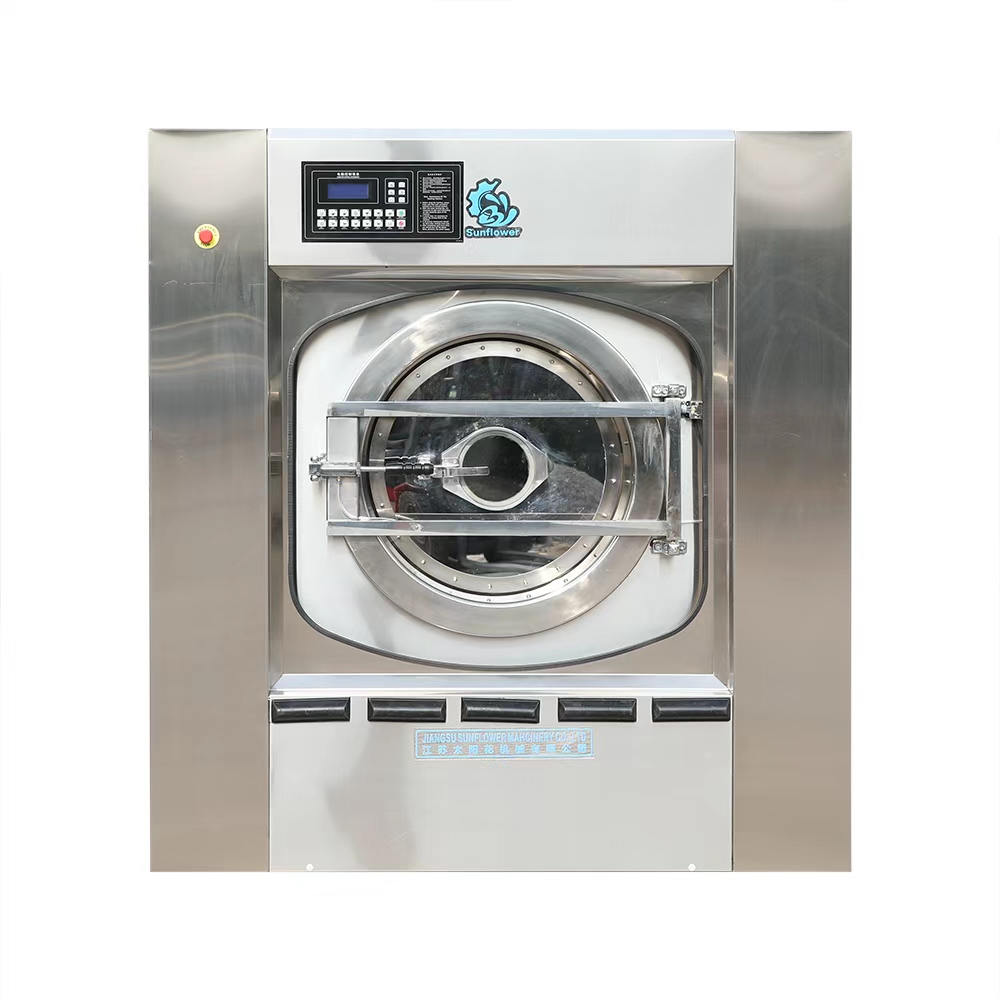

XGQ-50F
SUNFLOWER
84502012
1、Intelligent water conservation, high-efficiency energy saving
Equipped with an intelligent water flow control system, it can flexibly adjust water usage based on sweater weight and process to avoid waste. Combined with energy-saving motors and optimized heating structures, it significantly reduces power consumption, lowering long-term operational costs for businesses.
2、High space utilization
Adopting a front-loading compact structural design, it occupies minimal floor space, maximizes workshop utilization, and is particularly suitable for factories with limited space, significantly improving site efficiency.
3、Precise intelligent temperature control ensures stable processing quality
The high-precision intelligent control system achieves stepless and accurate temperature adjustment within ±1°C, ensuring uniform dyeing of sweaters with no color difference and high color fastness. The SUS304 stainless steel inner tank is corrosion-resistant and protects fabrics, while the stable operation of the equipment features low noise, combining energy efficiency, environmental protection, and high production efficiency.
4 Low Water and Chmeical Ratio
Outter drum is well sealed and the distance between inner drum and outter drum is small ,it make the machine saving water and chemcail for you
5 Space Saving Sweater washing and dyeing machine
Compact design will help you to save space in your workshop and also make your sweater work shop tidy and clean

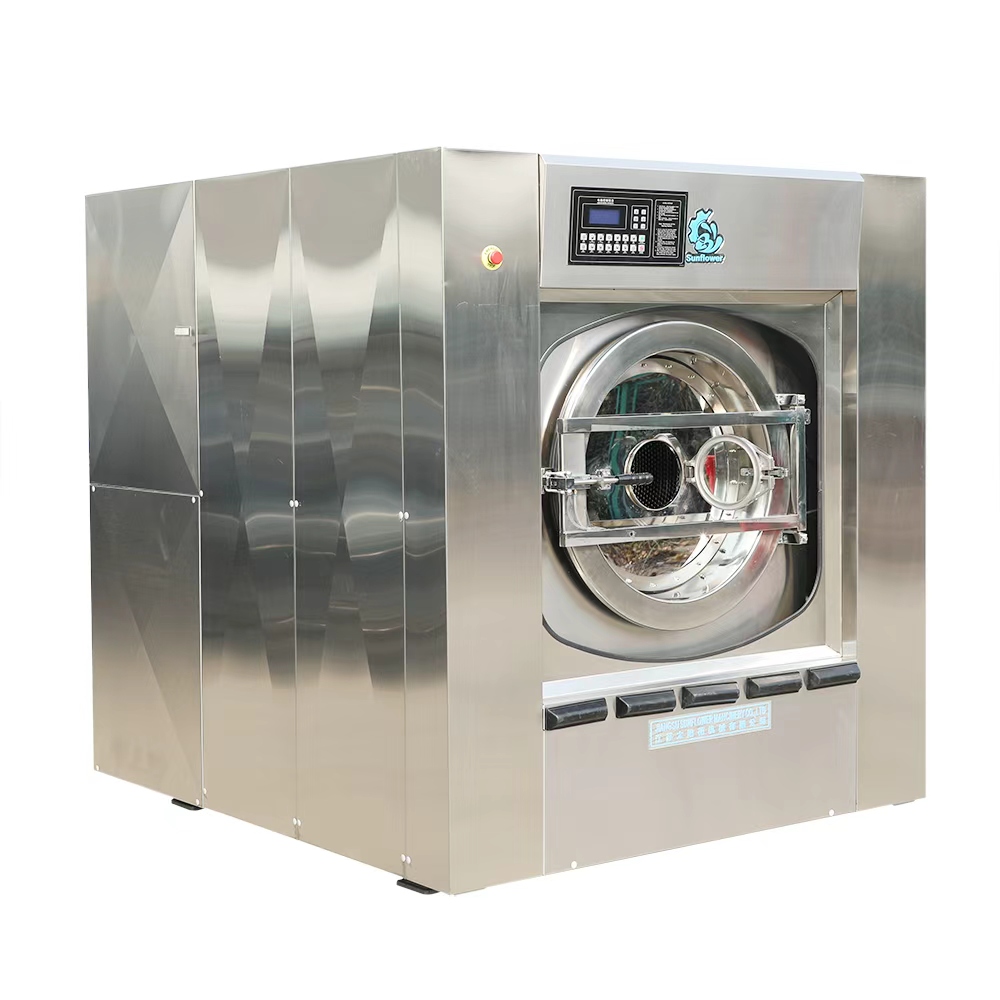

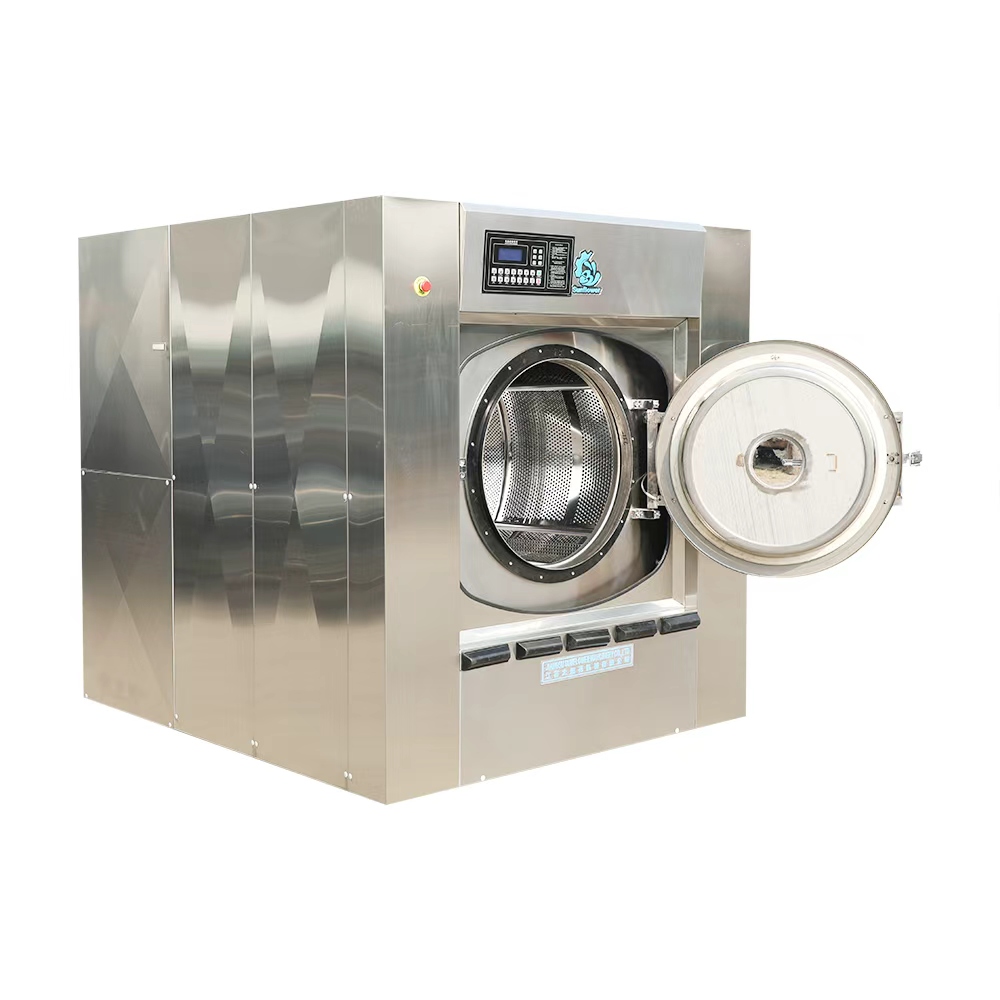

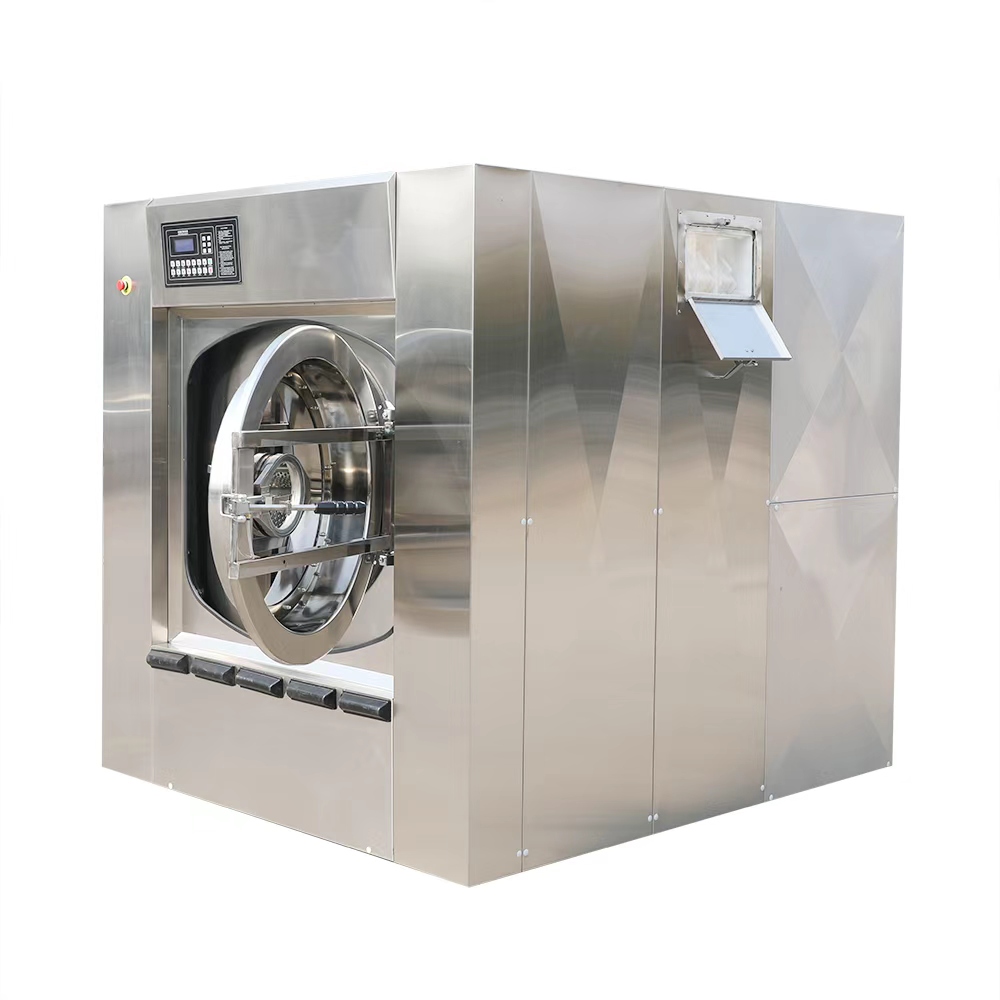

Data Sheet Of Front Loaded Sweater Washing Dyeing Machine 50kg
Item | Name | Specification |
1 | Washer Extractor Type | Vertical Type Front Loaded with one door Steam heated or Built In Electricity heater |
2 | Operation panel and Programs | Programable Operation panel with unlimited programs brand Pump |
3 | Rated Capacity (Wet )KG | 50KGS-55KGS |
4 | Washing Drum , Inner dru and shell | Stainless steel SS304 |
5 | Shell Thickness | δ1.2 |
6 | Washing Chamber thickness | δ2.0 |
7 | Inner Drum thickness | Δ2.0 |
8 | Drum size DÍL mm | φ1080Í580 (520L ) |
9 | Shock reducing system | With the multi directional springs system, the machine can absorb 97% of all vibrations |
10 | Motor | Ford Frequency motors 5.5kw |
11 | Bearing | TWB 22222-22220 |
12 | Invert | Invert 7.5kw |
13 | Water consumption (kg/1 time wash hand 2 times bleaching ) | 500 |
14 | Steam consumption | 50KG |
15 | Electricity consumption Kw.H | 3KW(Electricity heating power 24kw) |
16 | Washing /Balancing speed rpm | 30/60 |
17 | Middle/High extract speed | 350/700 |
18 | Steam port size and water inlet port size | DN25-DN40 |
19 | Overall Dimension (WÍLÍHmm) | 1600*1850*1900 |
20 | Main power line | 2.5-16平方(3+1) |
21 | Weight | 2000KG |
Industrial drying machine is a kind of equipment that is dried by hot air, which can dry wool, cotton clothes, bed sheets and quilt covers
1. It adopts computer automatic control, and can configure different drying temperature and drying time according to drying requirements to realize automatic drying.
2 The inner drum is made of bright stainless steel with excellent heat resistance, the inner wall is smooth, and the wear of clothes is reduced
3 Equipped with a high-efficiency radiator and a reasonable air duct, so that the hot air directly contacts the clothes, which greatly improves the drying efficiency and saves energy.
4 There are various models such as external steam radiator or electric heating radiator, or natural gas radiator to choose from
