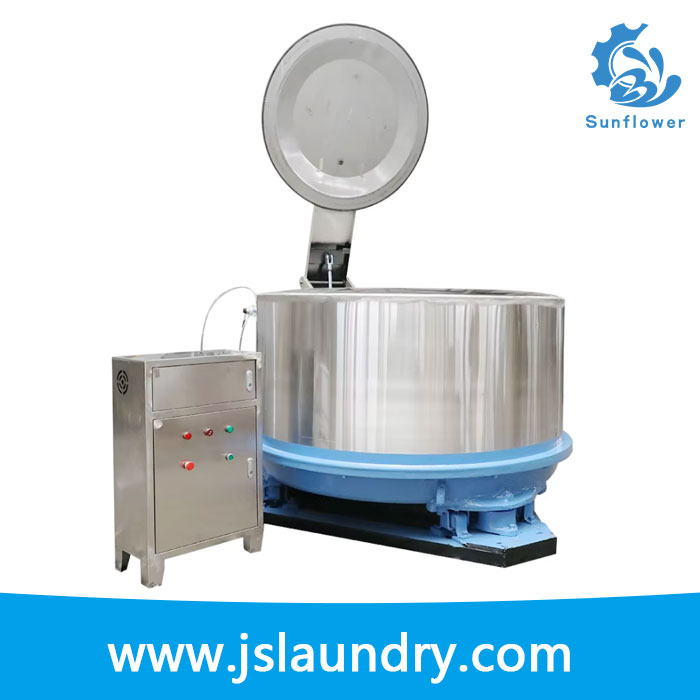

Frequency Spinning Machine

Quantity:
  • SME301-800
  • ISO9001&CE
  • 100 Sets Every Two Monthes
  • China
  • Wooden Case
  • SET
  • 1 SET
Hydro extractor, spin dryer, laundry dryer, dewatering machine, spinning machine, centrifuging machine
This hydro extractor isto do water extracting job after the fabric is washed

Features:
The drum of this machine is made of stainless steel
Independent three legs suspended instruction can avoid shock caused by unbalanced loaded.
The extracting speed of this machine is from 950 rpm to 750rpm
The capacity of this spinning machine is 210kg, and it will make the material inside dried by its high Centrifugal speed
The capacity of this hydro extractor series can be 40kg 60kg 90kg 120kg 210kg
Equipped with special brake arms which is durable and reliable make the machine more safe.
The motor will start with slow speed and reach supposed speed gradually, the drum will be driven by triangle rubber belt, running smooth and synchronous.

The specification of this machine is as follows

Model SME301-800
MOTOR PWOER 4KW
DRUM DIMENSION DIAMETER800*450
CAPACITY 100KG
OVERALL SIZE DIAMETER 1100*850
WEIGHT 1100KG

Our products are approved CE and ISO9001 certified.
Terms of payment: T/T or LC
MODEL MOTOR POWER DRUM DIMENSION mm THE BIGGEST CAPACITY kg OVER ALL SIZE mm NET WEIGHT kg
SME301-800 4KW Φ 800× 450 100 Φ   1100× 850 1100
SME301-1200 7.5KW Φ 1200× 550 300 Φ   1500× 950 2200
SME301-1500 10KW Φ 1500× 660 550 2550× 1950× 1400 2800
SME301-1800 12KW Φ 1800× 760 900 3050× 2260× 1750 3400
