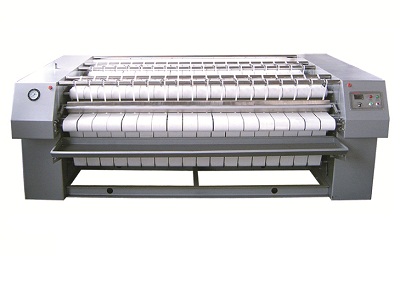

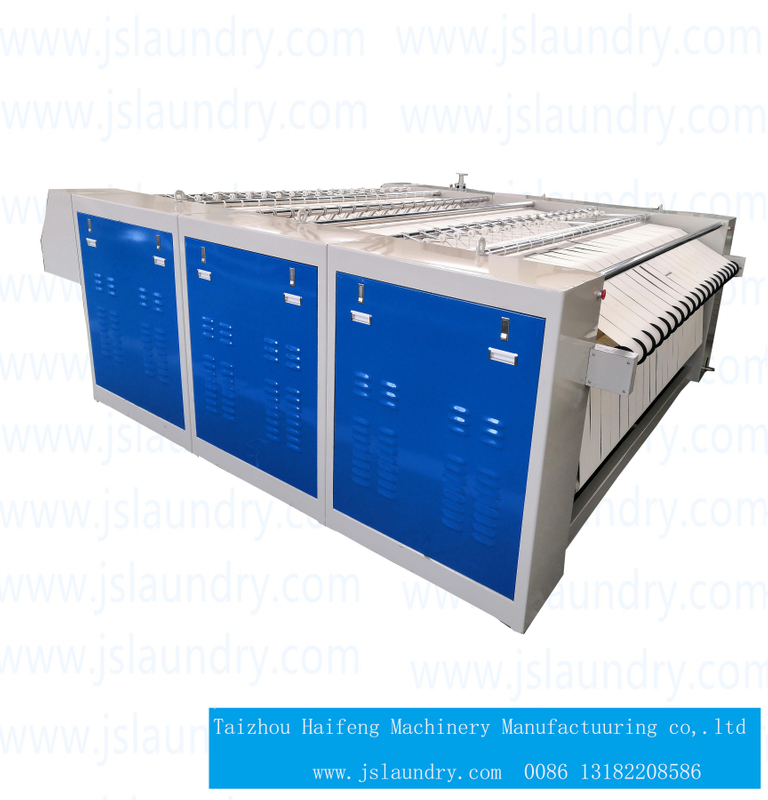

Flatwork Ironing Equipment

Quantity:
  • YPAIV3000
  • ISO9001
  • HAIFENG
  • 50sets /Month
  • China
  • Wooden
  • set
  • One Set
This steam heated ironer is to iron bed covers, bed sheet, table covers, towels and so on This ironer is rolling heated type, the length of the drum is arrange from 1.6 meters to 3.0 meters and the quantity of the roller can be 1, 2, 3, 4, even 5, the more of the ironer are, the faster of the ironer can be This ironer can be heated by electricity or steam This machine is inventor controlled and the drums are made of stainless steel Invent speed control with 5 ironing drum to offer enough Ironing speed for the laundry shop Model YPAIV-3000 Ironing Scope 0 Meter to 3 meter Drum Quantity 4 Steam Pressure 0.4 to 0.6 Mpa Drum Size 800mm*3000mm Ironing speed 30m/minute Motor Power 3kw Overall dimension 4040 mm*4500mm*1400mm Weight 3800kgs



Model

YPAI2500

YPAII2500

YPAI2800

YPAII2800

YPAI3000

YPAII3000

YPAIII3000

Ironing scope

0 meter to 2.5 meters

0 meter to 2.5 meters

0 meter to 2.8 meters

0 meter to 2.8 meters

0 meter to 3 meters

0 meter to 3 meters

0 meter to 3 meters

Dum quantity

1

2

1

2

1

2

0.4 TO 0.6

Steam pressures

0.4 to 0.6 Mpa

0.4 to 0.6 Mpa

0.4 to 0.6 Mpa

0.4 to 0.6 Mpa

0.4 to 0.6 Mpa

0.4 to 0.6 Mpa



Ironing speed

<=10 m/min

<=16m/min

<=10 m/min

<=16m/min

<=10 m/min

<=16m/min

<=27m/min

Designed temperature  of surface

It is 164 centigrade when the pressure is 0.4MPA

It is 164 centigrade when the pressure is 0.4MPA

It is 164 centigrade when the pressure is 0.4MPA

It is 164 centigrade when the pressure is 0.4MPA

It is 164 centigrade when the pressure is 0.4MPA

It is 164 centigrade when the pressure is 0.4MPA

It is 164 centigrade when the pressure is 0.4MPA

Steam consumption

70KG/h

110kg/h

80kg/h

120kg/h

85kg/h

180kgh

240kg/h

Motor power

0.75kw

1.5kw

0.75kw

1.5kw

0.75kw

1.5kw

2.2kw

Over all dimension

3540*1440*1400

3040*2440*14400

3840*1440*1400

3840*2440*1440

4040*1440*1400

4040*2440*1440

4040mm*3500mm*1400mm

Weight

1200kg

1700kg

1400kg

1900kg

1500kg

2600kg

3000kgs
