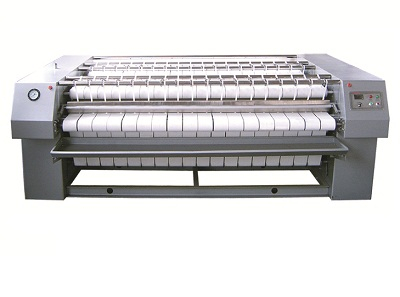

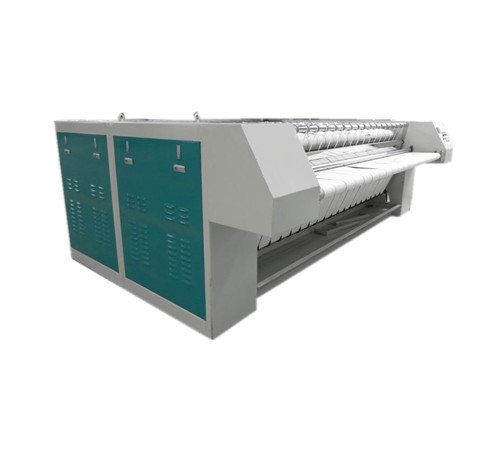

Flatwork Ironer

Quantity:
  • YPAII 3000
  • 50SETS /MONTH
  • China
  • Wooden
  • set
  • 1set
Product Description
Taizhou Haifeng Machinery Manufacturing co,ltd 's  Flatwork Ironer combines the advantage of the same type machines: Heavy duty construction, an attractive exterior, ease of operation, convenient service and smooth running, high efficiency ironing performance

A highly sensitive hand protection board ensure ultimate safety in each phase of the ironing process the seal system uses a high quality swivel joint which ensures a reliable seal and allows easy and simple maintenance.

Our frequency conversion speed adjustment system allows for a continual even flow of the speed which brings more energy saving
Equipped with 2 floatation type condensation traps making it most efficient. This innovative, award winning design has yielded a remarkable degree of energy conservation
Auxiliary stainless steel brackets allow for max. Stability to each flat ironer and eliminates any concerns of rusting

Features:

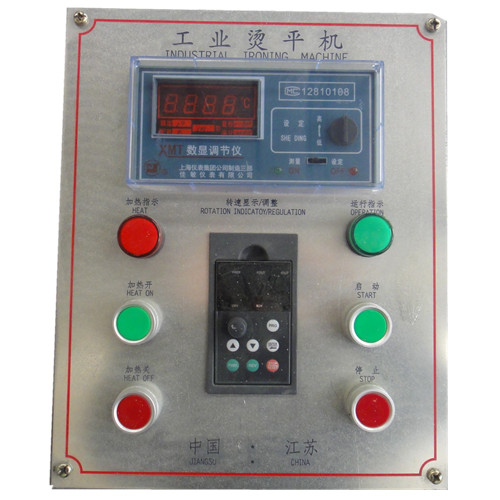

Microprocessor control
High productivity with minimum maintenance
Highest water evaporation capacity
Finger guard protection
Safe and easy to install
User-friendly control. Temperature and/or speed adjustable any time
Frequency inverter
Easy access to all components
Standard automatic cool down
Optimized exhaust system.

Specification of this machine is as follows

Model YPAII3000
Ironing scope 0meter to3meter
Quantity of ironing drum 2
Steam pressure 0.4 to 0.6Mpa
Drum dimension 800mm*3000mm
Ironing speed < =17m/min
Motor power 1.5kw
Power 3HP+N
Over all dimension 4040*2500*1400
Weight 2200kg
Technical Data Sheet
model   YPAI-1600 YPAI-2500  YPAI-2800    DYPAI-2800   YPAI-3000   DYPAI-3000 YPAII-3000   DYPAII-3000 YPAIII-3000  YPAIV-3300
ironing scope   0-1.6m   0-2.5m   0-2.8m   0-2.8m   0-2.8m   0-3M   0-3m   0-3m 0-3m 0-3.3m
drum quantity   1   1   1   1   1   2   2   3   4
steam pressure   0.4Mpa to 0.6Mpa   0.4Mpa to 0.6Mpa   0.4Mpa to 0.6Mpa   0.4Mpa to 0.6Mpa   0.4Mpa to 0.6Mpa   0.4Mpa to 0.6Mpa   0.4Mpa to 0.6Mpa   0.4Mpa to 0.6Mpa   0.4Mpa to 0.6Mpa   0.4Mpa to 0.6Mpa
heating power         36kw   ------   36kw ------    72kw   --------   -----
drum dimension   ø 800*1600   ø 800*2500   ø 800*2800   ø 800*3000   ø 800*3000   ø 800*3000   ø 800*3000   ø 800*3000   ø 800*3000   ø 800*3000
ironing speed of fabric   < =8   < =8   < =8   < =8   < =8   < =17   < =17   < =17   < =26   < =32
motor power   0.75kw   0.75kw 0.75kw    0.75kw   0.75kw   1.5kw   1.5kw   1.5kw   2.2kw   3kw
power   380v 50hz
overall dimension   2640mm*1500mm*1400mm 3810*1500*1400    3840*1500*1400   3840*1500*1400 4040*1500*1400  4040*1500*1400  4040*1500*1400  4040*1500*1400  4040*3500*1400  4340*4500*1400
overall dimension   1100kg   1200kg   1400kg 1400kg  1400kg   2200kg   2200kg   2200kg   3000kg   3800kg
