Jiangsu Sunflower Machinery Co,.ltd
Availability: | |
---|---|
Quantity: | |

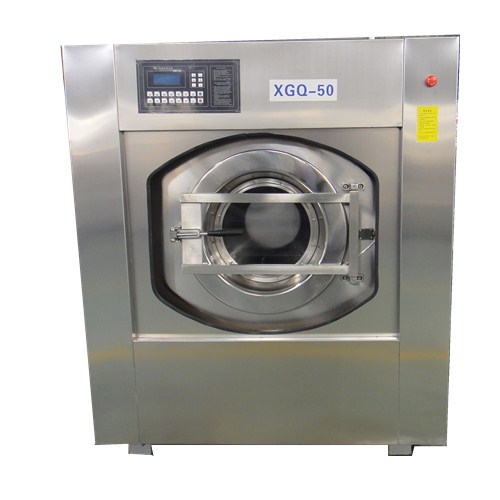

XGQ-50F
Sunflower
Commercial washer, hotel washer extractor
LED programable operating panel
Stainless steel drum and outter covers
Feature
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
2. Adopt the international latest complete suspension structure to reduce shock, replace the original shock design by liquid pressure buffer with springs, it can ensure an ideal anti-shock effect even on higher floors.
3. It is with a drum without compartment and single door structure convenient to loading or unloading, and reduces the labor intensity and improves the clean level.
4. with fully-closed and rear-drainage structure, it is good for environmental protection, the drum and case are both made of high quality stainless steel with the advantages of stain resistance and durability.
Specification
Model XGQ-50F
Capacity 50kg
Drum dimension 1080*600
Motor power 5.5kw
Washing speed 30rpm
Extracting speed 750rpm
Steam pressure 36kw
Dimensin 1400*1600*1820
Weight 2000kg
Commercial washer, hotel washer extractor
LED programable operating panel
Stainless steel drum and outter covers
Feature
1. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and anti-shock.
2. Adopt the international latest complete suspension structure to reduce shock, replace the original shock design by liquid pressure buffer with springs, it can ensure an ideal anti-shock effect even on higher floors.
3. It is with a drum without compartment and single door structure convenient to loading or unloading, and reduces the labor intensity and improves the clean level.
4. with fully-closed and rear-drainage structure, it is good for environmental protection, the drum and case are both made of high quality stainless steel with the advantages of stain resistance and durability.
Specification
Model XGQ-50F
Capacity 50kg
Drum dimension 1080*600
Motor power 5.5kw
Washing speed 30rpm
Extracting speed 750rpm
Steam pressure 36kw
Dimensin 1400*1600*1820
Weight 2000kg
model | XGQ-100F | XGQ-50F | XGQ-30F | XGQ-20F | XGQ-15F |
rated capacity | 100kg | 50kg | 30kg | 20kg | 15kg |
drum dimension | 1200*840 | 1080*600 | 820*550 | 700*480 | 650*440 |
motor power | 7.5kw | 5.5kw | 4kw | 2.2kw | 2.2kw |
cleaning speed | 30rpm | 30rpm | 38rpm | 38rpm | 40rpm |
extracting speed | 650rpm | 750rpm | 800rpm | 850rpm | 900rpm |
steam presser | 0.4-0.5 Mpa | 0.4to 0.5Mpa | 0.4-0.5Mpa | 0.4-0.5Mpa | 0.4to0.5Mpa |
inventor power | 11kw | 5.5kw | 4kw | 4kw | 3kw |
electricity heating power | ----- | 36kw | 24kw | 22kw | 12kw |
water inlet | 1 1/2’ ’ | 1 1/2’ | 1 1/2’ | 1 1/2’ | 1’ |
steam inlet | 1’ ’ | 1’ | 3/4’ | 3/4’ | 3/4’ |
chemical inlet | 1/2’ ’ | 1/2’ | 1/2’ | 1/2’ | 1/2’ |
overall dimension | 1600*1870*2000 | 1400*1600*1820 | 1100*1300*1600 | 1130*1000*1420 | 950*1000*1470 |
weight | 2800 | 2000 | 890 | 890 | 500kg |
model | XGQ-100F | XGQ-50F | XGQ-30F | XGQ-20F | XGQ-15F |
rated capacity | 100kg | 50kg | 30kg | 20kg | 15kg |
drum dimension | 1200*840 | 1080*600 | 820*550 | 700*480 | 650*440 |
motor power | 7.5kw | 5.5kw | 4kw | 2.2kw | 2.2kw |
cleaning speed | 30rpm | 30rpm | 38rpm | 38rpm | 40rpm |
extracting speed | 650rpm | 750rpm | 800rpm | 850rpm | 900rpm |
steam presser | 0.4-0.5 Mpa | 0.4to 0.5Mpa | 0.4-0.5Mpa | 0.4-0.5Mpa | 0.4to0.5Mpa |
inventor power | 11kw | 5.5kw | 4kw | 4kw | 3kw |
electricity heating power | ----- | 36kw | 24kw | 22kw | 12kw |
water inlet | 1 1/2’ ’ | 1 1/2’ | 1 1/2’ | 1 1/2’ | 1’ |
steam inlet | 1’ ’ | 1’ | 3/4’ | 3/4’ | 3/4’ |
chemical inlet | 1/2’ ’ | 1/2’ | 1/2’ | 1/2’ | 1/2’ |
overall dimension | 1600*1870*2000 | 1400*1600*1820 | 1100*1300*1600 | 1130*1000*1420 | 950*1000*1470 |
weight | 2800 | 2000 | 890 | 890 | 500kg |
Industrial drying machine is a kind of equipment that is dried by hot air, which can dry wool, cotton clothes, bed sheets and quilt covers
1. It adopts computer automatic control, and can configure different drying temperature and drying time according to drying requirements to realize automatic drying.
2 The inner drum is made of bright stainless steel with excellent heat resistance, the inner wall is smooth, and the wear of clothes is reduced
3 Equipped with a high-efficiency radiator and a reasonable air duct, so that the hot air directly contacts the clothes, which greatly improves the drying efficiency and saves energy.
4 There are various models such as external steam radiator or electric heating radiator, or natural gas radiator to choose from
