Commercial Laundry Machine 25kg

Quantity:
  • XGQ-25F
  • ISO9001&CE
  • 50SETS/MONTH
  • china
  • WOODEN
  • set
  • 1set
Purpose of commercial Laundry Machine 25kgs
This commercial laundry machine is ideal washing machine for hotels, restaurants, hospitals, army, schools ,to wash garments ,bedsheet ,  clothes made of cotton, lien and woolen.
There are 30 programs in the operating system, the operator can program and memory programs as they need ,Operator just need to press one button to operate this commercial laundry machine ,for the sake of its automatic operating system

Character of this commcial laundry machine

With function of washing and extracting
Programmable Operating Panel and controlling system
LS invert which last long time
Frequency driven motor
Stainless steel washing drum

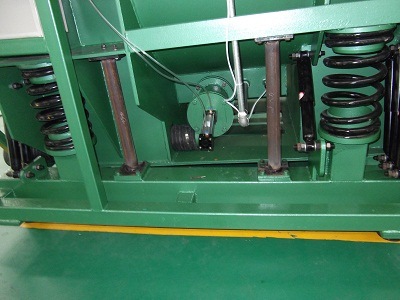

Suspended shock absorbing system

Specification of commercial laundry machine 25kgs

Model: XGQ-25F
Rated capacity(kg): 25kg
Drum capacity(L): 250L
Motor power(kw): 3KW
Washing rotate(rpm): 38RPM
Dewatering rotate(rpm): 800RPM
Steam pressure (Mpa): 0.4-0.5
Overall dimensions(mm): 1265*1200*1600
Weight(kg): 550
Our products are ISO9001 & CE certified.
Terms of payment: T/T



Model XGQ-100F XGQ-50F XGQ-30F XGQ-20F XGQ-15F
Rated Capacity 100kg 50kg 30kg 20kg 15kg
Drum Dimension(mm) 1200*840 1080*600 820*550 700*480 650*440
Motor Power 7.5kw 4kw 3kw 2.2kw 2.2kw
Cleaning Speed 30rpm 30rpm 38rpm 38rpm 40rpm
Extracting Speed 650rpm 750rpm 800rpm 850rpm 900rpm
Steam Presser 0.4-0.5 Mpa 0.4to 0.5Mpa 0.4-0.5Mpa 0.4-0.5Mpa 0.4to0.5Mpa
Inventor Power 11kw 4kw 4kw 4kw 3kw
Electricity Heating Power ----- 36kw 24kw 22kw 12kw
Water Inlet 1 1/2’ ’ 1 1/2’ 1 1/2’ 1 1/2’ 1’
Steam Inlet 1’ ’ 1’ 3/4’ 3/4’ 3/4’
Chemical Inlet 1/2’ ’ 1/2’ 1/2’ 1/2’ 1/2’
Overall Dimension(mm) 1600*1870*2000 1400*1600*1820 1100*1300*1600 1130*1000*1420 950*1000*1470
Weight(kgs) 2800 2000 890 890 500kg
