1 Brief of Barrier Washer Extractor

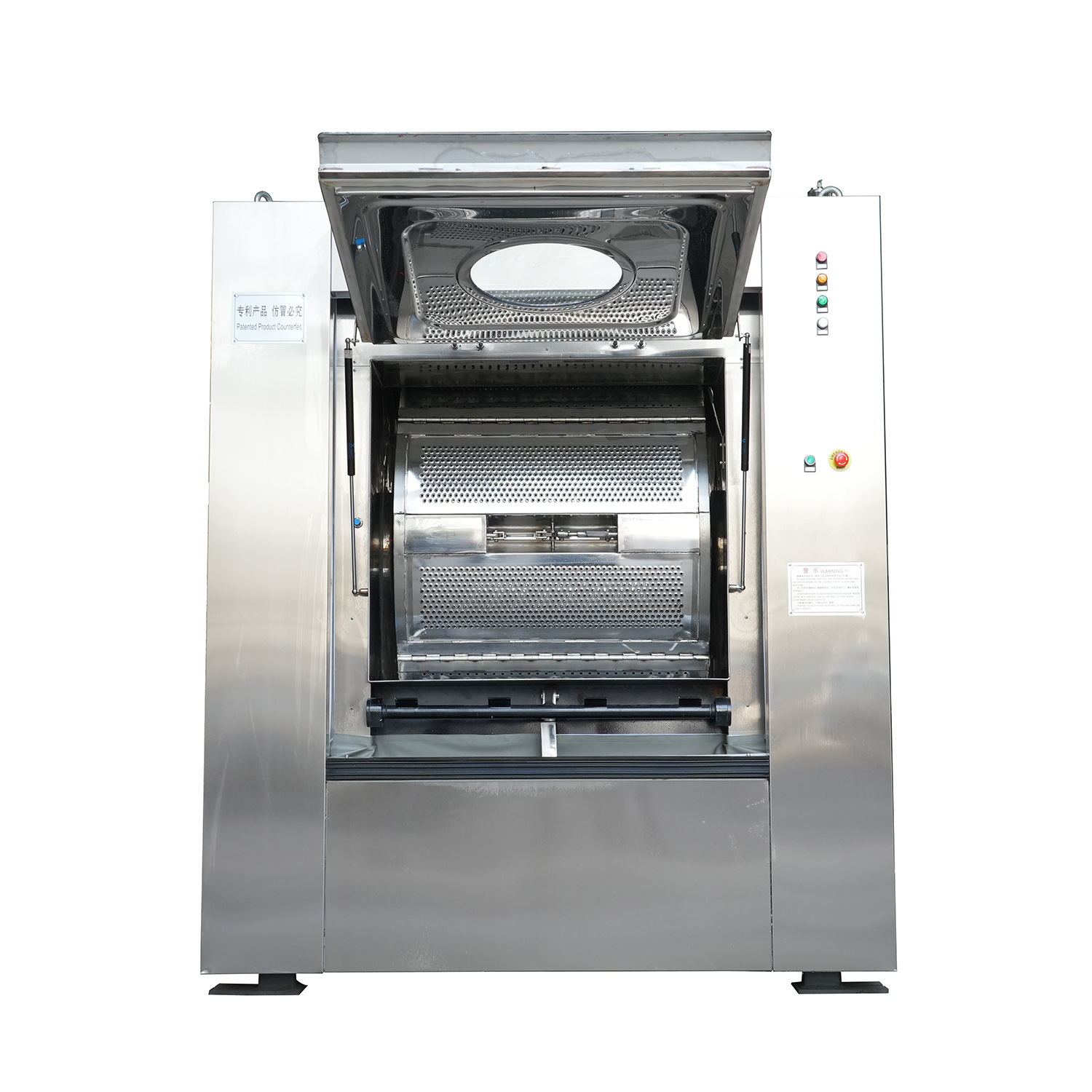

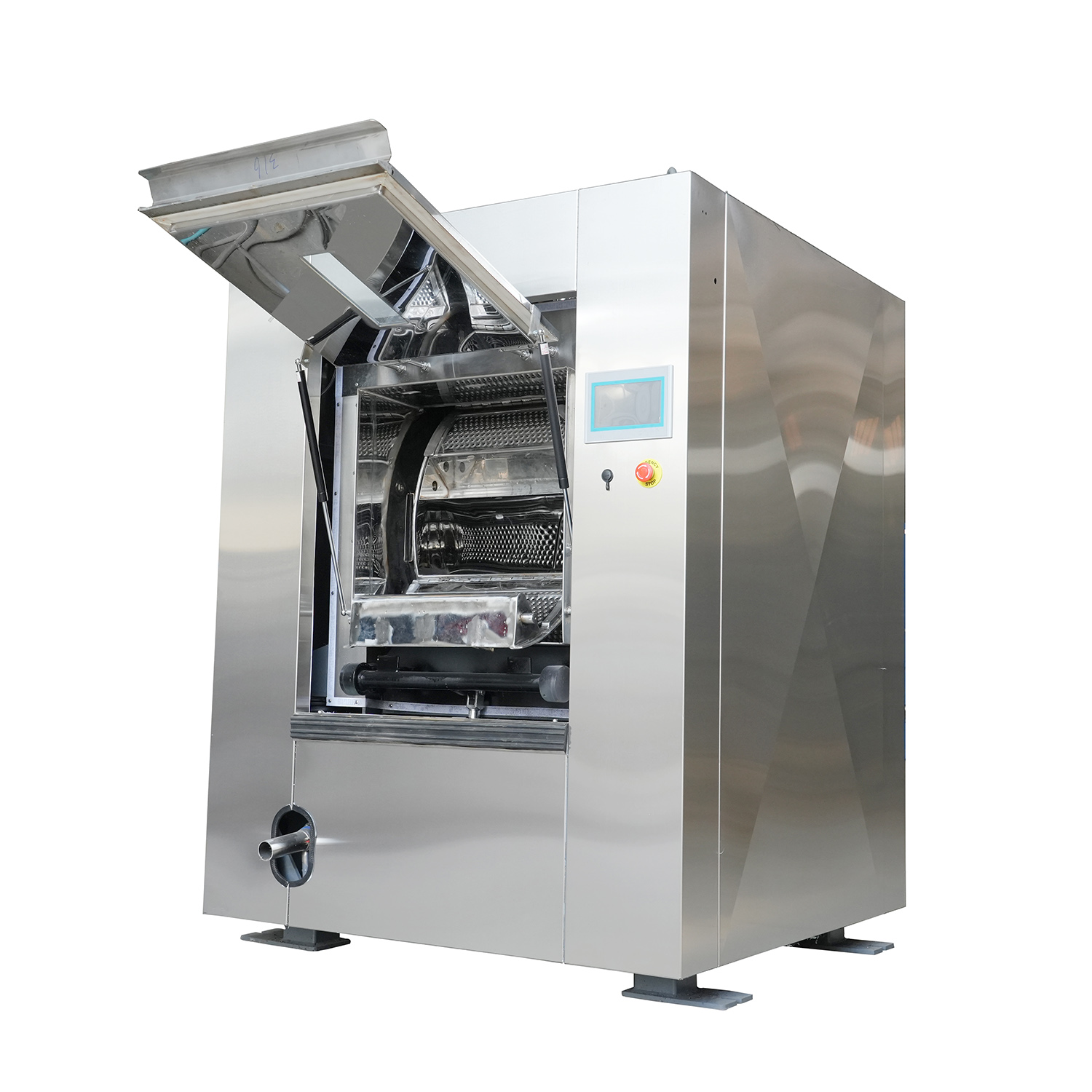

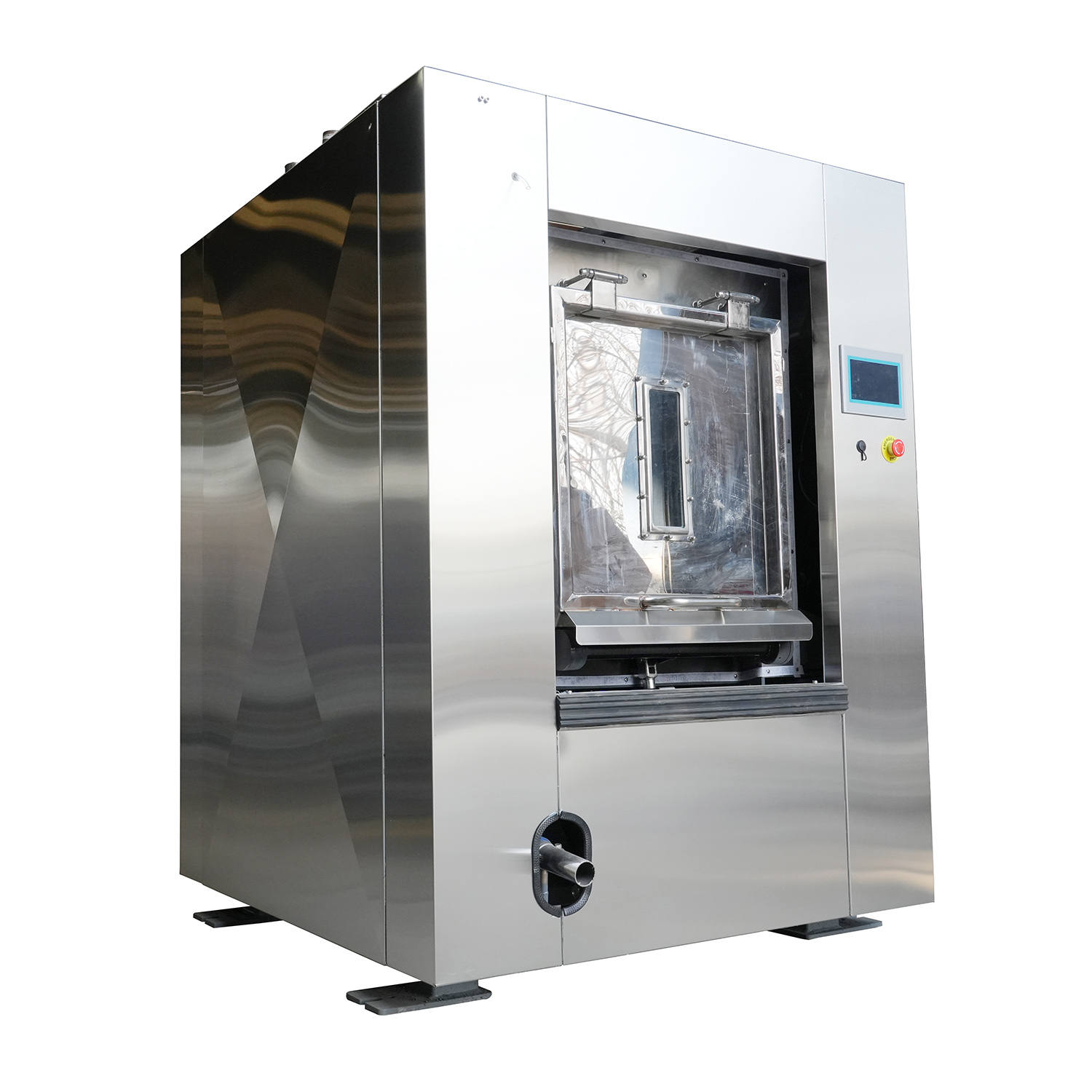

The working theory of barrier washer extractor that it could separate one laundry room into two independent area that clean area and non- clean area . Dirty fabric will be load from non- clean area to be washed ,after washing ,washed fabric will be unload from clean area.By the above ways , it will prevent cross-infection between clean fabric and dirty fabric ,haifeng barrier washer extractor is ideal washing machine for business of clean industry and Hospitals.
First, this barrier hygenic washer extractor has two doors which locates at two opposite side of the machine , it prevents cross -infection from beginning
Second, this barrier washer extractor plus barrier wall device space into two independent area that clean area and non-clean area.by this way it is impossible to be cross infection
Third, workers in clean area and non clean area are two independent groups and the fabric is in unidirectional flow ,besides the negative pressure non-air flow design ,helps preventing cross infection
1）Operating Panel ：Hand Touch Screen with LED shower ,which has reliable programmable operating system and it is easier for operator to control the machine
2）Airbag Shock Absorbers ： Special design of airbag shock absorbers ,to ensure our barrier washer extractor running smooth ,with little vibration
3）Automatic door system ： There is proximity switch applied in door system ,so that the inner door is able to face the outer door automatic and exactly ,when workers fetch washed fabric and reload dirty fabric
4）Door lock of Inner drum ： door lock of inner drum has structure of slider locking mechanism,besides the function of loose proof ,Our barrier washer extractor only has high strength but also safe to be used
5）Electricity controlling part of barrier washer extractor is made up by programmable automatic controlling system ,frequency driven motor , frequency controller ,Pneumatic valves and so on ,the whole system of barrier washer extractor has function of rotation of low speed , mid speed ,and high speed ,also has function of set up time , temperature .our machine is also able to control temperature and time automatic , it is able to add and exhaust water ,add chemical automatic , this machine also has function of trouble self-checking and alarm
2 Transportation and Notice
Please pay attention to the following notice ,in case of machine trouble , Operator Injuries or fire trouble and so on
1) Notice
A Please install machine at clean and dry place , with efficient water drain out system .and if the Environment temperature get very high ,please install Ventilating system to the laundry shop
B Machine must be connected to the ground firmly and stable by lines
C There is no dangerous stuff in fabric need to be washed ,such as metal and so on
D If the machine is heated by steam , the steam pipe leading to the machine , should be covered by warm Insulation material to save energy and also to avoid burning operator
E The weight of washed fabric should be no less than 90% of rated capacity and no more than the rated capacity
F If laundry shop plan not to use this machine for long time ,please cut off the electricity power , turn off the steam valve , cut off cold water ,hot water and air . When you want to shoot the trouble or try to maintain the machine ,please do the same thing above to avoid accident
G When you start this machine without outer cover , please make sure the machine has been placed in the right place ,in cases of accident caused by driven belt
H When the machine is under checking ,please make sure the power is cut off and mark of “ REPARING “ is on the machine
I Please don’t put something on the machine in case of fire accident ,besides if the good fall down , it might cause injury again
J It is forbidden to change our machine or change machine’s machinery structure
2 )Notice for transportation
Transportation Brake :When you move the machine ,please use transportation brake to protect shock absorber system , otherwise the machine may get trouble
But Before start the machine ,the transportation brake should be took off , other wise the machine may get damaged by big shock ,even cause human injury
A When move the machine , please make sure no hit or knock on the machine ,in case of damage of the machine
B When you transport the machine in raining day ,please cover the machine by plastic paper to protect the machine against water ,especially the electricity box
C When to lift the machine , please put the hanger into four ring on the top of the machine
D Foundation : The foundation need to be strong enough to afford the weight of machine , and the floor should be well leveled ,and then fixed the machine into floor by four boltd
Note :if floor is not well leveled ,the machine might have problem in extracting
E The power of machine is 3 phases 4 lines ,please make sure diameter of every electricity line is big enough to afford the current
3 Trouble Shooting
1）When the machine alarm or have some trouble , please stop the machine and solve the trouble first ,then star machine , otherwise bigger problem might happen ,causing even worse problem
2）When Emergency happens ,please cut off the electricity power first
4 Notice of Operation
1）The pressure of compressed air should be around 0.4Mpa to 0.6Mpa , the air and oil seperator should add oil or exhaust water often
2）If machine use automatic programs to wash , washing effect will be effected by many factors ,such as washed clothes quantity , size and its dirty level ,So we suggest the operator to set up their own washing programs according to the reality .
3）Please don’t short stop working time
4）Whatever use manual programs or automatic programs to wash , when the machine start extracting ,in the first 60 seconds , please watch the door’s vibration ,if the vibration is too big ,please return to the washing step , to add water , balance and extract again ,otherwise the vibration will short the machine’s machinery life
5）The fabric need to be washed ,need to selected by its kind , such as bedsheet should washed together with bedsheet , blanket should be washed together with blanket ,in cases of twisting and bad balance
6）This machine need to be watched ,especially when the machine is doing extracting jon
7）If the machine is steam heated , please install safety valve , pressure meter and stop valve
8）If the machine start extracting , the balancing water level should be high level ,otherwise it will cause great damage to the machine . And the extracting time is no more than 3 minutes , otherwise ,it will effect the machine lift
5 Washing quantity
The washing capacity should not be too much or too loess , please refers to the followings
BW-30--(25KGS--30KGS ) BW-50 ( 40KGS -50KGS )
BW-70 - (60KGS-70KGS）BW-100 （90KGS-100KGS )
6 Machines' Request
1）Power ：380V(three phases four lines ）
2）the input port is at electricity panel , A B C is for fire lines , N is for Neutral lines
3）This machine must be connect to the ground firmly
