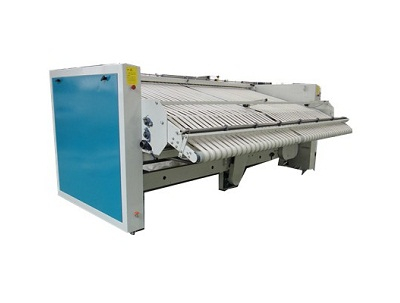

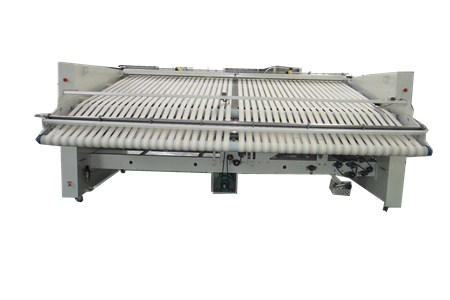

Automatic Folding Machine

Quantity:
  • ZD3000-V
  • china
  • wooden cases
  • 1台
  • 10 days after recieve payment
  • 1
  • T/T
the character of this automatic folding machine is as follows
1 using the auto technology of combination of blowing and knif-switch
2 use large screen LCD interlligent controlling system
3 all english programable computer  interface with Large LED Display
4 use double roller and speed system ,setting precise folding
5 the range of operation speed is wide ,matching with all ironing mach,ines
6 with self-diagnosis function ,single aspect of signal detection techiniques and full safety protection system
7 use relay output port to control the comptuer without intermediate realy action to facilitate the maintenance
8 with automatic elimination of stactic swithing devices and security protection work and reliably .



Model

Unit

ZD3300-V

ZD3000-V

Folding Length (Max )

mm

3600*3300

3600*3000

Working capacity

m/min

30

30

Compressed air consumption

L/min

80

80

Supply Press

Mpa

0.5-0.7

0.5-0.7

Rated Input power

Kw

0.75+0.37

0.75+0.37

Power consumption

Kw/h

0.6

0.6

Drainage of air compressor

M3/min

0.3

0.3

Dimension

Mm

4940*2530*1930

4640*2530*1930

Machine Weight

Kg

1450

1450

External Weight

Mm2

4

4

Power supply

Vp/hz

380/350

380/350
