Jiangsu Sunflower Machinery Co,.ltd

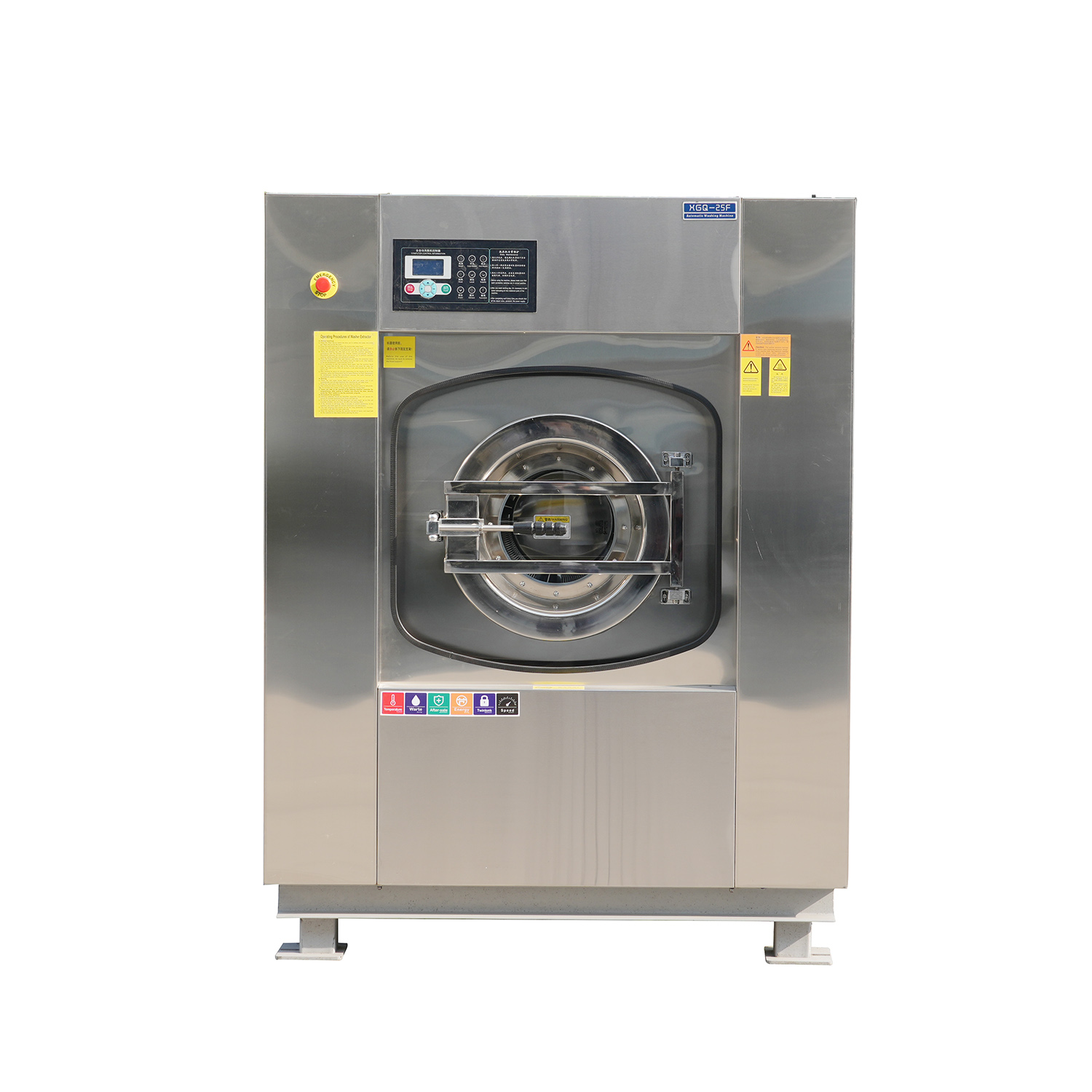

Introduction of this 20 kg washer is as follows
LED display, Programmable operating panel, with manual over rides
Fully automatic
Front loaded
100kg Maximum capacity
Automatic balance
Soft mounted
Drum stainless steel
Body stainless steel
The new XGQ-F series washer-extractors are available in 12kg, 15kg, 20kg, 25kg, 30kg, 50kg, 70kg, 100 kg and 120kg
The specification of 20kg washer extractor is as follows
Model XGQ-20F
Rated capacity(kg): 20kg
Drum capacity(L): 200L
Motor power(kw): 2.2KW
Inventor power: 2.2kw
Washing rotation (rpm): 30rpm-35rpm
Dewatering rotation (rpm): 650rpm to 900rpm
Steam pressure (Mpa): 0.4-0.5
Overall dimensions(mm): 1100*1150*1650
Weight(kg): 500kg
Our products are ISO9001 & CE certified.
Terms of payment: T/T/LC
Introduction of this 20 kg washer is as follows
LED display, Programmable operating panel, with manual over rides
Fully automatic
Front loaded
100kg Maximum capacity
Automatic balance
Soft mounted
Drum stainless steel
Body stainless steel
The new XGQ-F series washer-extractors are available in 12kg, 15kg, 20kg, 25kg, 30kg, 50kg, 70kg, 100 kg and 120kg
The specification of 20kg washer extractor is as follows
Model XGQ-20F
Rated capacity(kg): 20kg
Drum capacity(L): 200L
Motor power(kw): 2.2KW
Inventor power: 2.2kw
Washing rotation (rpm): 30rpm-35rpm
Dewatering rotation (rpm): 650rpm to 900rpm
Steam pressure (Mpa): 0.4-0.5
Overall dimensions(mm): 1100*1150*1650
Weight(kg): 500kg
Our products are ISO9001 & CE certified.
Terms of payment: T/T/LC
model | XGQ-100F | XGQ-50F | XGQ-30F | XGQ-20F | XGQ-15F |
rated capacity | 100kg | 50kg | 30kg | 20kg | 15kg |
drum dimension | 1200*840 | 1080*600 | 820*550 | 700*480 | 600*420 |
motor power | 7.5kw | 4kw | 3kw | 2.2kw | 1.5kw |
cleaning speed | 30rpm | 30rpm | 38rpm | 38rpm | 40rpm |
extracting speed | 650rpm | 750rpm | 800rpm | 850rpm | 900rpm |
steam presser | 0.4-0.5 Mpa | 0.4to 0.5Mpa | 0.4-0.5Mpa | 0.4-0.5Mpa | 0.4to0.5Mpa |
inventor power | 11kw | 4kw | 4kw | 4kw | 3kw |
electricity heating power | ----- | 36kw | 24kw | 22kw | 12kw |
water inlet | 1 1/2’ ’ | 1 1/2’ | 1 1/2’ | 1 1/2’ | 1’ |
steam inlet | 1’ ’ | 1’ | 3/4’ | 3/4’ | 3/4’ |
chemical inlet | 1/2’ ’ | 1/2’ | 1/2’ | 1/2’ | 1/2’ |
overall dimension | 1600*1870*2000 | 1400*1600*1820 | 1100*1300*1600 | 1130*1000*1420 | 950*1000*1470 |
weight | 2800 | 2000 | 890 | 890 | 500kg |
model | XGQ-100F | XGQ-50F | XGQ-30F | XGQ-20F | XGQ-15F |
rated capacity | 100kg | 50kg | 30kg | 20kg | 15kg |
drum dimension | 1200*840 | 1080*600 | 820*550 | 700*480 | 600*420 |
motor power | 7.5kw | 4kw | 3kw | 2.2kw | 1.5kw |
cleaning speed | 30rpm | 30rpm | 38rpm | 38rpm | 40rpm |
extracting speed | 650rpm | 750rpm | 800rpm | 850rpm | 900rpm |
steam presser | 0.4-0.5 Mpa | 0.4to 0.5Mpa | 0.4-0.5Mpa | 0.4-0.5Mpa | 0.4to0.5Mpa |
inventor power | 11kw | 4kw | 4kw | 4kw | 3kw |
electricity heating power | ----- | 36kw | 24kw | 22kw | 12kw |
water inlet | 1 1/2’ ’ | 1 1/2’ | 1 1/2’ | 1 1/2’ | 1’ |
steam inlet | 1’ ’ | 1’ | 3/4’ | 3/4’ | 3/4’ |
chemical inlet | 1/2’ ’ | 1/2’ | 1/2’ | 1/2’ | 1/2’ |
overall dimension | 1600*1870*2000 | 1400*1600*1820 | 1100*1300*1600 | 1130*1000*1420 | 950*1000*1470 |
weight | 2800 | 2000 | 890 | 890 | 500kg |
Industrial drying machine is a kind of equipment that is dried by hot air, which can dry wool, cotton clothes, bed sheets and quilt covers
1. It adopts computer automatic control, and can configure different drying temperature and drying time according to drying requirements to realize automatic drying.
2 The inner drum is made of bright stainless steel with excellent heat resistance, the inner wall is smooth, and the wear of clothes is reduced
3 Equipped with a high-efficiency radiator and a reasonable air duct, so that the hot air directly contacts the clothes, which greatly improves the drying efficiency and saves energy.
4 There are various models such as external steam radiator or electric heating radiator, or natural gas radiator to choose from
