Jiangsu Sunflower Machinery Co,.ltd
Commercial dryer, Steam dryer, electricity dryer, Tumble dryer, tumbling dryer, automatic drying machine, industrial drying machine ,Laundry dryer

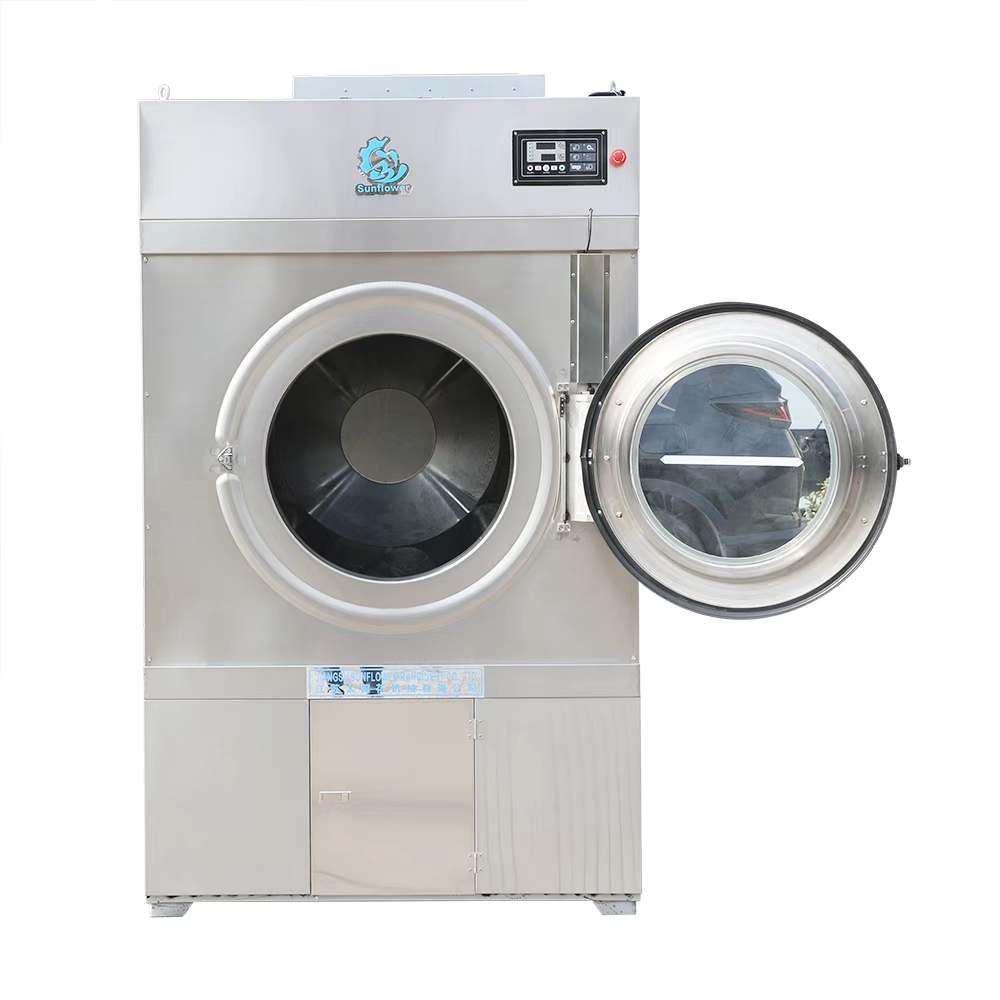

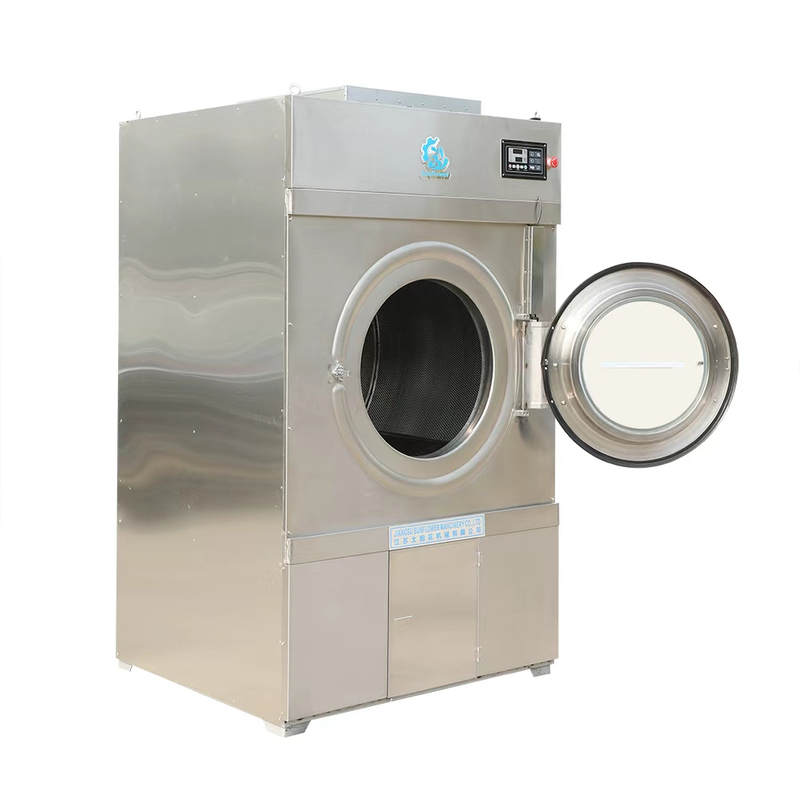

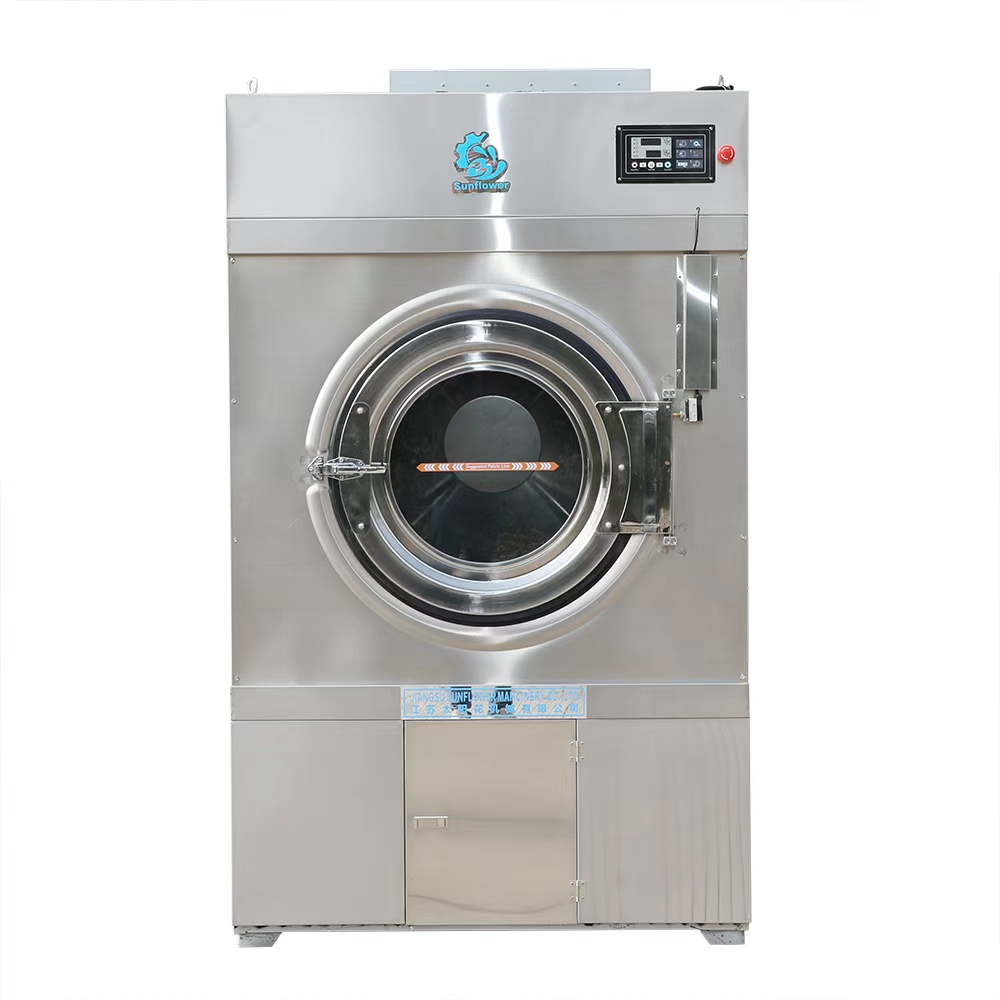

Description of 50kgs laundry dryer
This laundry dryer is perfect machine to do drying job of the towels, bed covers and so on for laundry shops, hospitals and hotels
The capacity of the machine could be 15kg 30kg 50kg 100kg 120kg or 120kg (japaness type, air control ) 150kg and 200kg
This machine will work together with washer extractor or industrial washing machine to make the fabric 100% dried by hot air
Character of 50kgs Laundry Dryer
A The drum is made from high-quality stainless steel, we can also make the machines covered by all stainless steel.
B Can be heated by electricity or steam that 15kg 30kg 50kg dryer can heated by either steam or electricity, but the dryer 100kg can only be heated by steam
C Big-size door is adopted for convenient fabric feeding and taking as well as transparent toughened glass is equipped for convenient view of fabric drying condition.
D Painting is heated by electricity oven which will last longer time
E Our products are ISO9001 and CE certified.
The specification of 50kg Laundry Dryer is as follows.
Model HGQ50
Capacity 50kg
Drum dimension diameter 1050mm*930mm
Rotation 33rpm
Steam pressure 0.944 to 0.588Mpa
Motor power 1.5 kw
Fan power 1.5kw
Overall dimension 1000*1400*1800
Weight 980kg
If you want more infornation of this machine, please send us inquiry
Commercial dryer, Steam dryer, electricity dryer, Tumble dryer, tumbling dryer, automatic drying machine, industrial drying machine ,Laundry dryer
Description of 50kgs laundry dryer
This laundry dryer is perfect machine to do drying job of the towels, bed covers and so on for laundry shops, hospitals and hotels
The capacity of the machine could be 15kg 30kg 50kg 100kg 120kg or 120kg (japaness type, air control ) 150kg and 200kg
This machine will work together with washer extractor or industrial washing machine to make the fabric 100% dried by hot air
Character of 50kgs Laundry Dryer
A The drum is made from high-quality stainless steel, we can also make the machines covered by all stainless steel.
B Can be heated by electricity or steam that 15kg 30kg 50kg dryer can heated by either steam or electricity, but the dryer 100kg can only be heated by steam
C Big-size door is adopted for convenient fabric feeding and taking as well as transparent toughened glass is equipped for convenient view of fabric drying condition.
D Painting is heated by electricity oven which will last longer time
E Our products are ISO9001 and CE certified.
The specification of 50kg Laundry Dryer is as follows.
Model HGQ50
Capacity 50kg
Drum dimension diameter 1050mm*930mm
Rotation 33rpm
Steam pressure 0.944 to 0.588Mpa
Motor power 1.5 kw
Fan power 1.5kw
Overall dimension 1000*1400*1800
Weight 980kg
If you want more infornation of this machine, please send us inquiry
Model | HGQ15 | HGQ30 | HGQ50 | HGQ100 | HGQ100 | HGQ120
| HGQ150 | HGQ200 |
Rated capacity | 15kg | 30 | 50 | 100 | 100 | 120 | 150 | 200 |
Drum Dimension | Φ800*560 | Φ900*750 | Φ1050*930 | Φ1320*1055 | Φ1320*1055 | Φ1470*1055 | Φ1600*1150 | Φ1300*2150 |
Drum Speed | 33 | 33 | 33 | 33 | 33 | 33 | 28 | 33 |
Electricity Heating power | 12 | 16.2 | 27 |
|
|
| ---- | ---- |
Steam Pressure | ---- | 0.4 Mpa to 0.5 Mpa | 0.4 Mpa to 0.5 Mpa | 0.4 Mpa to 0.5 Mpa | 0.4 Mpa to 0.5 Mpa | 0.4 Mpa to 0.5 Mpa | 0.4 Mpa to 0.5 Mpa | 0.4 Mpa to 0.5 Mpa |
Motor Power | 0.75kw | 1.1kw | 1.5KW | 2.2KW | 2.2KW | 3 | 4KW | 3kw |
Fan Power | 0.37 | 1.1kw | 1.1KW | 1.1KW | 1.1KW*2 | 1.5*2 | 1.5*2 | 2.2kw |
Overall Dimensions | 850*1000*1720
| 1000*1400*1800 | 1190 *1670*2100 | 1480*1840*2380 | 1480*1840* 2380 | 1660*1840*2470 | 1760*2000*2730 | 2650*1630*2720 |
Overall Weight | 250kg | 600 | 800 | 980 | 980 | 1100 | 1300 | 1300kg |
Model | HGQ15 | HGQ30 | HGQ50 | HGQ100 | HGQ100 | HGQ120
| HGQ150 | HGQ200 |
Rated capacity | 15kg | 30 | 50 | 100 | 100 | 120 | 150 | 200 |
Drum Dimension | Φ800*560 | Φ900*750 | Φ1050*930 | Φ1320*1055 | Φ1320*1055 | Φ1470*1055 | Φ1600*1150 | Φ1300*2150 |
Drum Speed | 33 | 33 | 33 | 33 | 33 | 33 | 28 | 33 |
Electricity Heating power | 12 | 16.2 | 27 |
|
|
| ---- | ---- |
Steam Pressure | ---- | 0.4 Mpa to 0.5 Mpa | 0.4 Mpa to 0.5 Mpa | 0.4 Mpa to 0.5 Mpa | 0.4 Mpa to 0.5 Mpa | 0.4 Mpa to 0.5 Mpa | 0.4 Mpa to 0.5 Mpa | 0.4 Mpa to 0.5 Mpa |
Motor Power | 0.75kw | 1.1kw | 1.5KW | 2.2KW | 2.2KW | 3 | 4KW | 3kw |
Fan Power | 0.37 | 1.1kw | 1.1KW | 1.1KW | 1.1KW*2 | 1.5*2 | 1.5*2 | 2.2kw |
Overall Dimensions | 850*1000*1720
| 1000*1400*1800 | 1190 *1670*2100 | 1480*1840*2380 | 1480*1840* 2380 | 1660*1840*2470 | 1760*2000*2730 | 2650*1630*2720 |
Overall Weight | 250kg | 600 | 800 | 980 | 980 | 1100 | 1300 | 1300kg |
Industrial drying machine is a kind of equipment that is dried by hot air, which can dry wool, cotton clothes, bed sheets and quilt covers
1. It adopts computer automatic control, and can configure different drying temperature and drying time according to drying requirements to realize automatic drying.
2 The inner drum is made of bright stainless steel with excellent heat resistance, the inner wall is smooth, and the wear of clothes is reduced
3 Equipped with a high-efficiency radiator and a reasonable air duct, so that the hot air directly contacts the clothes, which greatly improves the drying efficiency and saves energy.
4 There are various models such as external steam radiator or electric heating radiator, or natural gas radiator to choose from
