HGQ-120
SUNFLOWER

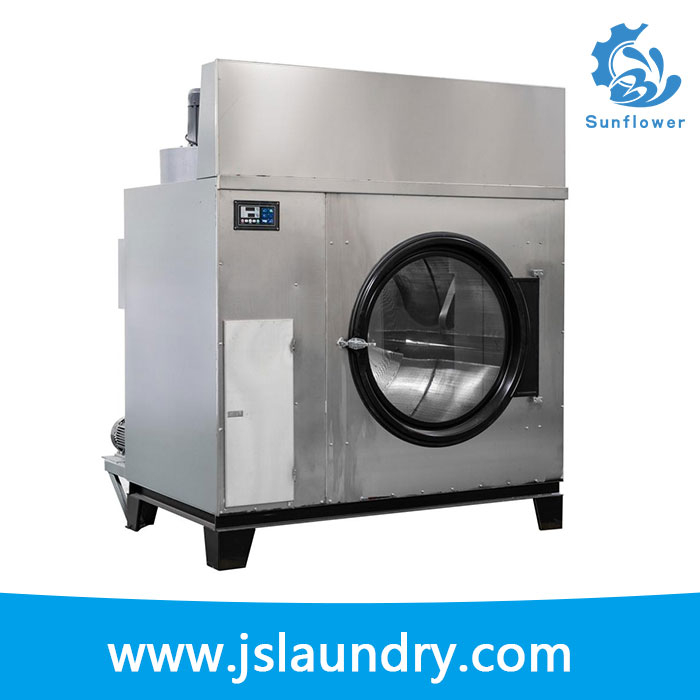

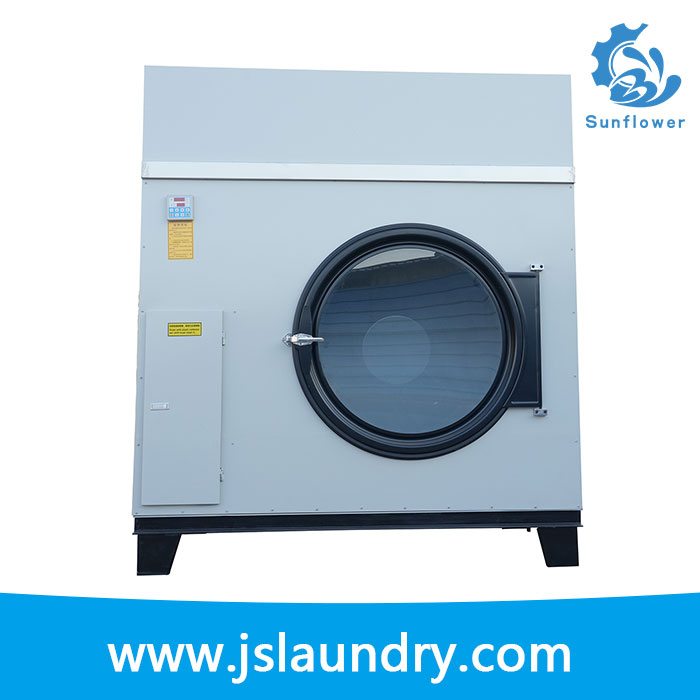

Tumbler dryer catagory is our tumbler dryer heated by steam or electricity.
The tumbler dryer has different capacity of 50kgs, 120kgs, 100kgs, 50kgs, 30kgs, 25kgs, 20kgs, 15kgs.
For different purpose of drying garments, rubber parts, gloves, jeans, bed sheet, towels and so on.
The tumbler drying machine is able to be reversing type or no revering type.
The operation system of this tumbler dryer machine is able to be customized by your request.
The drying drum of tumbler dryer in this catagory are all made of stainless steel.
The heating radiator of tumbler dryer in this catagory are made of stainless steel.
1 .INNER CYLINDER OF POLISHED STAINLESS STEEL QUALITY AISI 304. - INNER CYLINDER OF POLISHED STAINLESS STEEL QUALITY AISI 304
2. WITH SCHNERDER’S AC ELECTRONIC PARTS
3.MICROPROCESSOR THAT REGULATES CYCLES AND THERMAL ACTION DURING THE DRYING CYCLE.
4. PROGRESSIVE COOLING SYSTEM AT THE END OF THE CYCLE TO AVOID WRINKLES IN GARMENTS WITH MODIFIABLE TIMES. SISTEMA DE ENFRIAMIENTO PROGRESIVO AL FINAL DEL CICLO PARA EVITAR ARRUGAS EN LAS PRENDAS CON TIEMPOS MODIFICABLES.
5. DRYER INDICATOR LAMPS RUNNING, HEATING IN PROGRESS AND CLEAN THE FILTER
VISUAL AND AUDITORY ALARM INDICATING THE COMPLETION OF THE PROCES
6. FRONT AND SIDE PANELS MADE OF STAINLESS STEEL PLATE QUALITY AISI 304.
STAINLESS STEEL DOOR WITH THERMAL VISOR GLASS, WITH SECURITY LOCKING
Note: Installation of Electrical Fixtures such as Electrical Control Panel / Panel Board and Circuit Breakers
including Wirings & Conduit Raceway
Tumbler dryer catagory is our tumbler dryer heated by steam or electricity.
The tumbler dryer has different capacity of 50kgs, 120kgs, 100kgs, 50kgs, 30kgs, 25kgs, 20kgs, 15kgs.
For different purpose of drying garments, rubber parts, gloves, jeans, bed sheet, towels and so on.
The tumbler drying machine is able to be reversing type or no revering type.
The operation system of this tumbler dryer machine is able to be customized by your request.
The drying drum of tumbler dryer in this catagory are all made of stainless steel.
The heating radiator of tumbler dryer in this catagory are made of stainless steel.
1 .INNER CYLINDER OF POLISHED STAINLESS STEEL QUALITY AISI 304. - INNER CYLINDER OF POLISHED STAINLESS STEEL QUALITY AISI 304
2. WITH SCHNERDER’S AC ELECTRONIC PARTS
3.MICROPROCESSOR THAT REGULATES CYCLES AND THERMAL ACTION DURING THE DRYING CYCLE.
4. PROGRESSIVE COOLING SYSTEM AT THE END OF THE CYCLE TO AVOID WRINKLES IN GARMENTS WITH MODIFIABLE TIMES. SISTEMA DE ENFRIAMIENTO PROGRESIVO AL FINAL DEL CICLO PARA EVITAR ARRUGAS EN LAS PRENDAS CON TIEMPOS MODIFICABLES.
5. DRYER INDICATOR LAMPS RUNNING, HEATING IN PROGRESS AND CLEAN THE FILTER
VISUAL AND AUDITORY ALARM INDICATING THE COMPLETION OF THE PROCES
6. FRONT AND SIDE PANELS MADE OF STAINLESS STEEL PLATE QUALITY AISI 304.
STAINLESS STEEL DOOR WITH THERMAL VISOR GLASS, WITH SECURITY LOCKING
Note: Installation of Electrical Fixtures such as Electrical Control Panel / Panel Board and Circuit Breakers
including Wirings & Conduit Raceway
Model | HGQ120 |
Rated Capacity (kgs) | 120 |
Drum Size (mm) | φ1470*1080 mm (1832L ) |
Rotation (r/min) | 28 |
Heating | 48kw |
Motor Power(kw) | 3 |
Fan Power(kw) | 2.2kw |
Overall Dimension (mm) | 1600*1850*2400 mm |
Weight (kgs) | 1100 |
Model | HGQ120 |
Rated Capacity (kgs) | 120 |
Drum Size (mm) | φ1470*1080 mm (1832L ) |
Rotation (r/min) | 28 |
Heating | 48kw |
Motor Power(kw) | 3 |
Fan Power(kw) | 2.2kw |
Overall Dimension (mm) | 1600*1850*2400 mm |
Weight (kgs) | 1100 |
Industrial drying machine is a kind of equipment that is dried by hot air, which can dry wool, cotton clothes, bed sheets and quilt covers
1. It adopts computer automatic control, and can configure different drying temperature and drying time according to drying requirements to realize automatic drying.
2 The inner drum is made of bright stainless steel with excellent heat resistance, the inner wall is smooth, and the wear of clothes is reduced
3 Equipped with a high-efficiency radiator and a reasonable air duct, so that the hot air directly contacts the clothes, which greatly improves the drying efficiency and saves energy.
4 There are various models such as external steam radiator or electric heating radiator, or natural gas radiator to choose from
