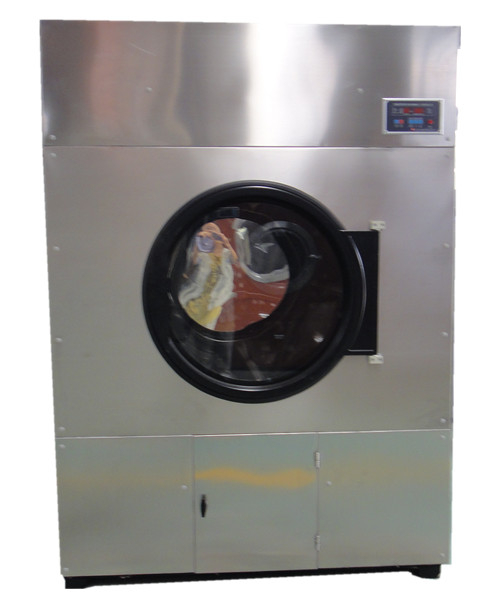

Industrial Dryer 50kg

Quantity:
  • HGQ50
  • 50SETS /MONTH
  • China
  • Wooden Case
  • SET
  • 1SET
  • 20days
  • 1
  • T/T
Commercial dryer, Steam dryer, Tumble dryer, industrial drying machine, is perfect machine for laundry shops, hospitals and hotels to do drying job of the fabric

This machine works together with washer extractor or industrial washing machine to to drying job of textile fabric
The drum is made from high-quality stainless steel to make the machines much more durabe, we can also make the machines covered by all stainless steel.

Can be heated by electricity or steam.

Big-size door is adopted for convenient fabric feeding and taking as well as transparent toughened glass is equipped for convenient view of fabric drying condition.
High-power heater is adopted to guarantee safe and effective drying effect.

The capacity of the machine could be 15kg 30kg 50kg 100kg 120kg or 120kg (japaness type) 150kg and 200kg

Purpose:
Drying washed & extracted fabric such as cotton, wool, hemp, silk, chemical fiber, etc; It is suitable for hotels, hospitals, organizations, laundries etc.
Terms of payment: T/T
Our products are ISO9001 and CE certified.

The specification of 100kg tumbler dryer is as follows

Model HGQ100
Capacity 100kg
Drum dimension diameter 1320mm*1055
Rotation 33rpm
Steam pressure 0.944 to 0.588Mpa
Motor power 2.2kw
Fan power 1.5kw
Overall dimension 1480mm*1840mm*2380mm
Weight 980kg

If you are interested in our machines, please not hesitate to contact us.
  model   HGQ15   HGQ30   HGQ50   HGQ100 HGQ120  HGQ150    HGQ200
  rated capacity   15kg   30kg   50kg   100kg   120kg   150kg   200kg
  drum dimension
(mm)
  Φ 760*560   Φ 900*750   Φ 1050*930   Φ 1320*1055   Φ 1470*1055   Φ 1600*1150   Φ 1300*2150
  drum speed   33r/min   33r/min   33r/min   33r/min   33r/min   28r/min   33r/min
  electric heating power   12.6kw   16.2kw   27kw   ----   -----   ------   -----
  motor power   0.75kw   1.1kw   1.5kw   2.2kw   3kw   4kw   3kw
  fan power   0.75kw   1.1kw   1.1kw   1.5kw   1.5kw*2   1.5kw*2   2.2kw
  overall dimension
(mm)
  800*1020*1530   1000*1400*1800   1190*1670*2100   1480*1840*2380   1660*1840*2470   1760*2000*2730   2650*1630*2720
  overall weight   250kg   600kg   800kg   980kg   1100kg   1300kg   1300kg
