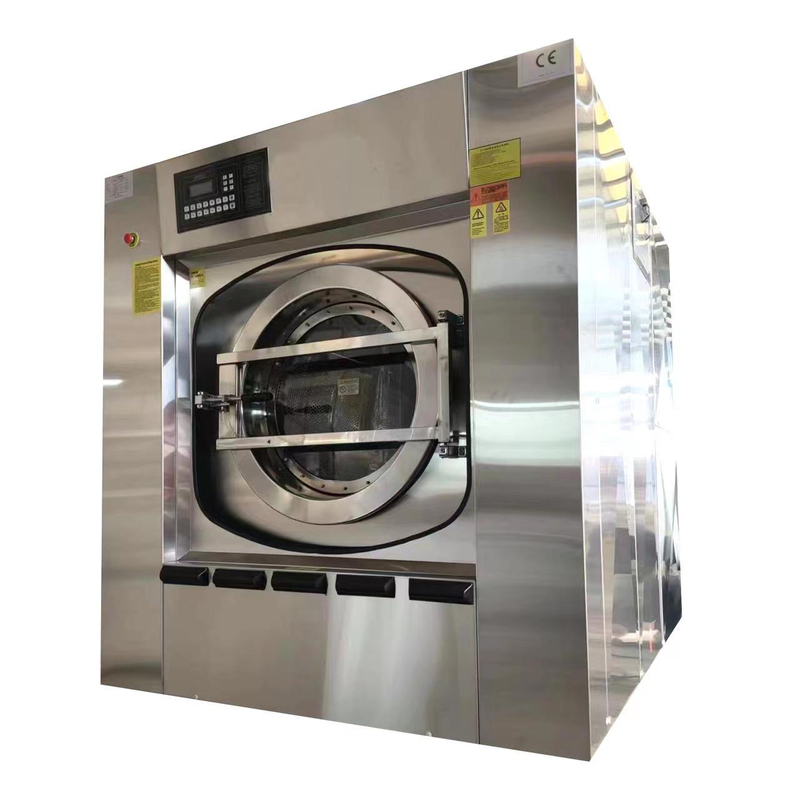

100kg CE Certified Cheapest Industrial Laundry Washer Extractor Washing Machine 2 1 Washer and Dryer
Smooth Inner Drum which is ss304
Outer drum is stainless steel 304
With Four spring and shock absorber
With one chemical box on the top
With programmable operation panel
With frequency controlling motors and Frequency controller
| Item | Unit | XGQ-15F | XGQ-20F | XGQ-25F | XGQ-30F | XGQ-50F | XGQ-70F | XGQ-100F |
| CAPACITY | Load capacity | Kg | 15 | 20 | 25 | 30 | 50 | 70 | 100 |
| Drum dimension D*L | Mm | 380*650 | 700*500 | 800*500 | 900×470 | 1080×600 | 1080*720mm | 1200×840 |
| Cylinder dimension D*L | Mm |
|
|
|
|
|
|
|
| Motor | Frequency controlled | Kw | 1.5kw | 2.2kw | 3kw | 3kw | 4kw | 5.5kw | 7.5kw |
| Electricity heating pipe | Kw | 6 | 12 | 24 | 24 | 48 | 48 | ------- |
Power consumption
per cycle | Kw | 0.4kw(stm)
3.5kw(ele) | 0.6kw(stm)
4kw(ele) | 0.8kw(stm)
5kw(ele) | 0.8kw(stm)
5kw(ele) | 1kw (stm)
7kw(ele) | 1.5kw | 1.8kw |
| Drum | Wash speed | Rpm | 45 | 45 | 40 | 40 | 30 | 30 | 30 |
| Balance speed | Rpm | 75 | 75 | 75 | 60 | 60 | 60 | 60 |
| Medium/high spin speed | Rpm | 500/950 | 500/950 | 420/850 | 420/850 | 420/750 | 420/700 | 420/650 |
| G-Factor-extract | G | 308 | 308 | 312 | 312 | 316 | 321 | 321 |
| Stainless steel 304 | ---- | standard | standard | standard | standard | standard | standard | standard |
| Programmer | Full programmer operation panel | ---- | standard | standard | standard | standard | standard | standard | standard |
| Programs can remember | Pc | 15 | 15 | 30 | 30 | 30 | 30 | 30 |
| Heating type | Steam | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Electricity | Standard | Standard | Standard | Standard | Standard | N/A | N/A |
| Water | Water inlet DN | Mm | 20 | 20 | 25 | 50 | 50 | 75 | 75 |
| Water pressure | Bar | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 |
| Water consumption | Kg | 300 | 350 | 400 | 500 | 750 | 1200 | 1800 |
| Drain | Mm | 50 | 50 | 80 | 80 | 80 | 140 | 140 |
| Steam | Steam inlet (DN) | Mm | 15 | 15 | 20 | 20 | 25 | 25 | 25 |
| Steam pressure | Bar | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 | 4-6 |
| Steam consumption per cycle | Kg | 8 | 10 | 20 | 30 | 35 | 40 | 50 |
Dimension
L*W*H | Mm | 1100*970*1420 | 1130*1000*1420 | 1230*1260*1700 | 1350*1340*1700 | 1820*1500*1600 | 1850*1500*1720 | 1600*1870*2000 |
| Weight | Mm | 450kg | 500kg | 890kg | 890kg | 1500kg | 1600kg | 2800kg |
